Summary of Contents for Advanced Amplifiers AA-10K1G-100

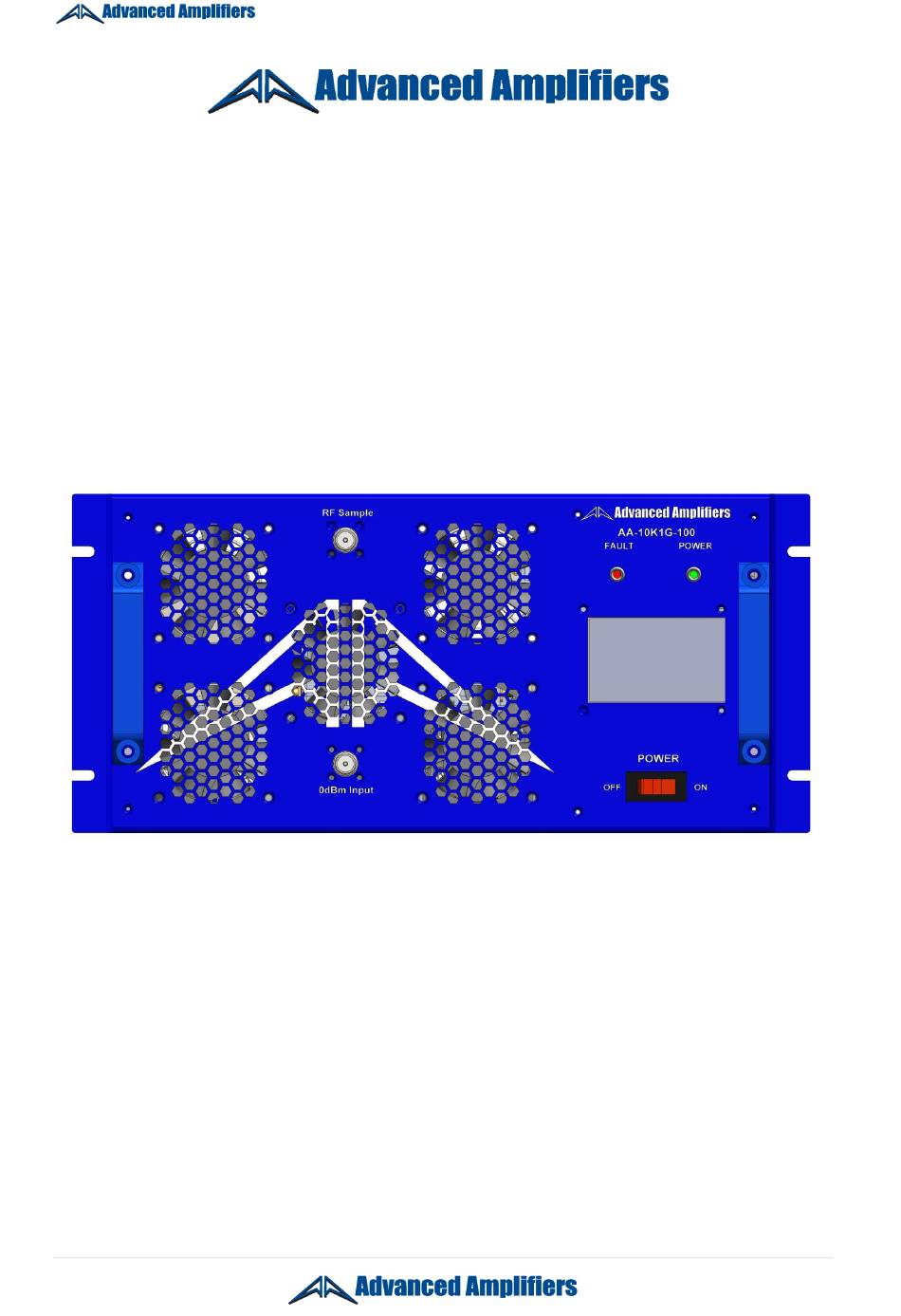

- Page 1 Instruction Manual Including Quick Start Guide Advanced Amplifiers Solid State RF Amplifier System AA-10K1G-100 BAND A : 10KHz - 200MHz, 100 Watt Min , 50dB Min BAND B : 200 - 1000MHz, 100 Watt Min , 50dB Min - Ver. 1.0 - 04-24...
-
Page 2: Table Of Contents
Table of Contents SAFETY INSTRUCTIONS ............................... 3 SPECIFICATIONS ................................4 ELECTRICAL SPECIFICATIONS: 50Ω, 25°C ......................4 ENVIRONMENTAL CHARACTERISTICS ......................... 4 MECHANICAL SPECIFICATIONS ........................... 4 AVAILABLE SPECIAL OPTIONS ..........................4 OPERATING INSTRUCTIONS & GENERAL INFORMATION.................... 5 INTRODUCTION ..............................5 INCOMING INSPECTION ............................5 RF &... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS BEFORE USING THIS EQUIPMENT Read this manual and become familiar with safety markings and instructions. Inspect unit for any sign of external damage. Do not use this equipment if there is physical damage or missing parts. Verify the input AC voltage to the main power supply For a system with a digital controller option –... -
Page 4: Specifications
SPECIFICATIONS ELECTRICAL SPECIFICATIONS: 50Ω, 25°C Parameter Specification Notes Band Operating Frequency Range 10 kHz - 200 MHz 200 - 1000 MHz Band switching @ 15 mS Typ Power Output @ Psat 100 Watt Min / 150 Watt Typ CW or Pulse Power Output @ P1dB 80 Watt Min / 100 Watt Typ Power Gain... -
Page 5: Operating Instructions & General Information
RF field for numerous applications including and not limited to, EMI/EMC, communications, and various commercial and industry standards. With our in-house capabilities and fully equipped testing facilities, Advanced Amplifiers is committed to provide the best in RF products with industry leading quality and lead times. -
Page 6: Declaration Of Ce Conformity
Council Directive 2014/35/EC on Low Voltage Equipment Safety LIMITED WARRANTY Advanced Amplifiers warrants those goods delivered hereunder, at the time of delivery, will be free from defects in workmanship and material and will conform to the requirements of the purchase order. Seller’s liability hereunder shall be limited to the repair or replacement of defective goods F.O.B. -
Page 7: Front & Rear Panel Descriptions
FRONT & REAR PANEL DESCRIPTIONS FRONT PANEL VIEW - Ver. 1.0 - 04-24 P a g e... -
Page 8: Rear Panel View
REAR PANEL VIEW - Ver. 1.0 - 04-24 P a g e... -
Page 9: System Outline View
SYSTEM OUTLINE VIEW - Ver. 1.0 - 04-24 P a g e...
