Advanced Amplifiers AA-10K250M-150 Instruction Manual

Solid state rf amplifier system 10 khz - 250 mhz, 150 watt, 52 db min

Advertisement

Quick Links

Instruction Manual
Including Quick Start Guide
Advanced Amplifiers
Solid State RF Amplifier System
AA-10K250M-150
10 KHz - 250 MHz, 150 Watt, 52 dB Min
- Ver. 1.0
1 |
P a g e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AA-10K250M-150 and is the answer not in the manual?

Questions and answers

Summary of Contents for Advanced Amplifiers AA-10K250M-150

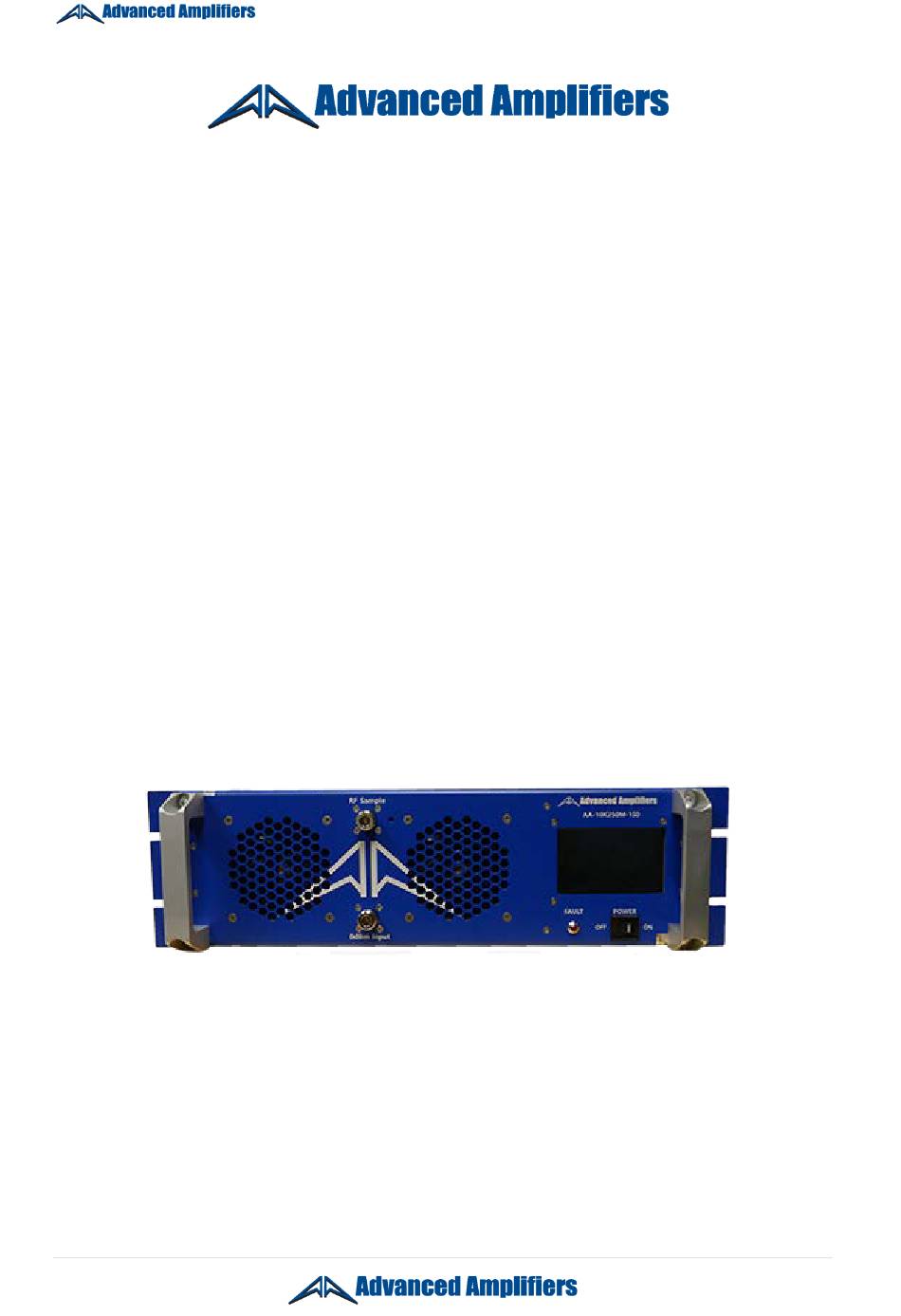

  • Page 1 Instruction Manual Including Quick Start Guide Advanced Amplifiers Solid State RF Amplifier System AA-10K250M-150 10 KHz - 250 MHz, 150 Watt, 52 dB Min - Ver. 1.0 P a g e...
  • Page 2: Table Of Contents

    Table of Contents SAFETY INSTRUCTIONS ............................... 3 SPECIFICATIONS ................................4 ELECTRICAL SPECIFICATIONS: 50Ω, 25°C ......................4 ENVIRONMENTAL CHARACTERISTICS ......................... 4 MECHANICAL SPECIFICATIONS ........................... 4 OPERATING INSTRUCTIONS & GENERAL INFORMATION.................... 5 INTRODUCTION ..............................5 INCOMING INSPECTION ............................5 RF & AC CABLE CONNECTION ..........................5 RF TURN ON PROCEDURE ...........................
  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS BEFORE USING THIS EQUIPMENT Read this manual and become familiar with safety markings and instructions. Inspect unit for any sign of external damage. Do not use this equipment if there is physical damage or missing parts. Verify the input AC voltage to the main power supply For a system with a digital controller option –...
  • Page 4: Specifications

    SPECIFICATIONS ELECTRICAL SPECIFICATIONS: 50Ω, 25°C Parameter Specification Notes Operating Frequency Range 10 KHz - 250 MHz Power Output @ Psat 150 Watt Min CW or Pulse Power Output @ P1dB 70 Watt Typ Power Gain 52 dB Min 0dBm or less for Rated Power Power Gain Flatness 4.0 dB p-p Max Constant input power...
  • Page 5: Operating Instructions & General Information

    RF field for numerous applications including and not limited to, EMI/EMC, communications, and various commercial and industry standards. With our in-house capabilities and fully equipped testing facilities, Advanced Amplifiers is committed to provide the best in RF products with industry leading quality and lead times.
  • Page 6: Declaration Of Ce Conformity

    Council Directive 2014/35/EC on Low Voltage Equipment Safety LIMITED WARRANTY Advanced Amplifiers warrants those goods delivered hereunder, at the time of delivery, will be free from defects in workmanship and material and will conform to the requirements of the purchase order. Seller’s liability hereunder shall be limited to the repair or replacement of defective goods F.O.B.
  • Page 7: Front & Rear Panel Descriptions

    FRONT & REAR PANEL DESCRIPTIONS FRONT PANEL VIEW Title Function RF INPUT N Female, RF INPUT Connector RF Sample N Female, RF SAMPLE Connector System Fault LED: Turn ON an LED when System Fault. FAULT LED - Over Input, Over Temp, Over Current, Voltage Alarm, VSWR Alarm POWER SWITCH System Power Switch.
  • Page 8: Rear Panel View

    REAR PANEL VIEW Title Function AC POWER AC Power Input 100 ~ 240VAC, 50/60Hz, IEC60320-14 Connector. CONNECTOR System RS-422 Communication / Gating Signal Female 9-Pin D-Sub Connector. P1 TX- P2 TX+ P7 +5VDC RS-422 P3 RX+ P8 Interlock Return P4 RX- P9 Interlock GND P5 GND (RS-422) GPIB...
  • Page 9: System Outline View

    SYSTEM OUTLINE VIEW - Ver. 1.0 P a g e...
