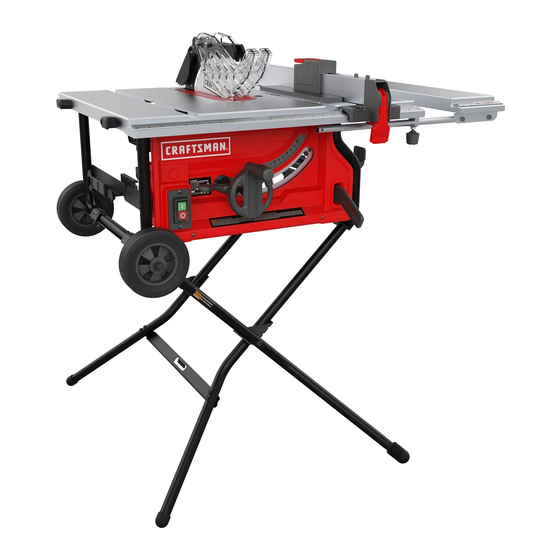

- Page 1 INSTRUCTION MANUAL | MANUAL DE INSTRUCTIONES 10" Table Saw With Rolling Stand Sierra De Mesa De 254 mm (10 Pulgados) Con Soporte Rodante CMXETAX69434506 IF YOU HAVE QUESTIONS OR COMMENTS, CONTACT US. SI TIENE DUDAS O COMENTARIOS, CONTÁCTENOS. 1-888-331-4569 WWW.CRAFTSMAN.COM...
- Page 2 ENGLISH De nitions: Safety Alert Symbols and Words This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage. DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
- Page 3 WARNING: Never modify the product or any part of it. Damage or personal injury could result. WARNING: To reduce the risk of injury, read the instruction manual. If you have any questions or comments about this or any product, call CRAFTSMAN toll free at: 1-888-331-4569.
-
Page 4: Important Safety Information
NEVER use this power tool in a manner that has not been Save all warnings and instructions for future reference. specifically recommended by CRAFTSMAN. The term “power tool” in the warnings refers to your mains- operated (corded) power tool or battery operated (cordless) SAFETY SYMBOLS power tool. - Page 5 ENGLISH protected supply. Use of an GFCI reduces the risk of power tool’s operation. If damaged, have the power tool electric shock. repaired before use. Many accidents are caused by 3) Personal safety poorly maintained power tools. a) Stay alert, watch what you are doing and use common f) Keep cutting tools sharp and clean.
- Page 6 ENGLISH the riving knife to function properly, the saw blade removing material. diameter must match the appropriate riving knife and l) Use an auxiliary fence in contact with the table top the body of the saw blade must be thinner than the when ripping workpieces less than 2 mm thick.
-
Page 7: General Safety Information
ENGLISH WARNING: Read warnings and conditions about Never use warped saw blades or saw blades with your carbide tipped saw blade. cracked or broken teeth. Sharp and properly set saw blades minimize binding, stalling and kickback. WARNING: Do not operate the saw without the 4) Table saw operating procedure warnings proper blade guard in place for all through cut a) Turn off... -
Page 8: Specific Safety Rules
ENGLISH • SECURE WORK. Use a clamp or vice to hold workpiece remove all nails from lumber before cutting. when practical. It’s safer than using your hand and frees • NEVER TOUCH BLADE or other moving parts during use. both hands to operate tool. •... -
Page 9: Electrical Connection
Contact a CRAFTSMAN factory service center, a CRAFTSMAN authorized service center or other qualified CAUTION: Servicing of a product with double service personnel if the problem can not be found. -
Page 10: Glossary Of Terms
ENGLISH The table below shows the correct size to use, depending on Blade: For maximum performance, it is recommended that the cord length and nameplate amperage rating. If in doubt, you use the 10 in. (254 mm) carbide tipped combination blade use the next heavier gauge. -
Page 11: Specifications
ENGLISH Crosscut: A cutting or shaping operation made across the grain or width of the workpiece. Miter Cut: A cutting operation made with the workpiece at any angle other than 90° to the blade. Non-Through Cut: Any cutting operation where the blade does not extend completely through the thickness of the workpiece. -
Page 12: You Will Need
ENGLISH ASSEMBLY Items supplied: Blade wrench (2 pc) Unpacking your table saw WARNING: To avoid injury, do not connect this table This product requires assembly. saw to a power source until it is completely assembled • Carefully lift saw from the carton and place it on a level and adjusted and you have read and understood the work surface. - Page 13 ENGLISH • Lay outer leg assembly on a flat surface. Place inner • Place the stand on level ground and open to its fully leg assembly on top of outer leg assembly with extended position. the top rails facing each other. Angled ends of outer lower legs and inner lower legs should face away Fig.
- Page 14 ENGLISH Fig. 4h Fig. 5b • Attach two limited plates B to the frame of the saw. Mounting the table saw to the stand (Fig. 5a-5e) Fig. 5c WARNING: The saw is heavy. Get help when needed. • Attach two limited plates A to outer upper leg assembly.
- Page 15 ENGLISH Rip fence storage installation (Fig. 7) • Use the latch to secure the free end of the support bracket to the frame of the saw. • Align holes on the rip fence storage with holes on Fig. 5e right side of saw frame. Secure in place with cross screws ST4.2 x 16 Fig.
-
Page 16: Removing And Installing The Blade
ENGLISH • Lock the blade by turning bevel locking lever WARNING: Turn saw off and unplug saw. clockwise. • To remove the table insert: Turn the locking knob To place riving knife in uppermost position (for clockwise to unlock the table insert . - Page 17 ENGLISH WARNING: Only use a 10 in. diameter blade. To avoid Fig. 11b injury from an accidental start, turn saw off and unplug saw. • Lower the saw blade and remove the table insert. • Make sure the bevel locking lever is securely locked. Turn height adjustment knob clockwise to raise blade to maximum height.
- Page 18 ENGLISH Fig. 12 Fig. 13b WARNING: When using the blade guard, lift the left and right blade guard and make sure that they move independently and contact the table surface. The blade guard can be raised to adjust the cut line, but Blade guard installation (Fig.
- Page 19 ENGLISH Miter gauge installation (Fig. 15) To close, move and open the stand (Fig. 17a-17g) The miter gauge can be installed on each miter gauge groove on either side of blade. WARNING: Shut off and unplug the saw before • Slide the guide rail of the miter gauge into one of...
- Page 20 ENGLISH • Grasp the horizontal support and lift both leg To open the stand (Fig. 17e-17g) sections (outer and inner leg assembly) so that the tab • Stand the saw on the wheeled end. Open the latch on the horizontal support meets the latch and unhook it from the horizontal support .
-
Page 21: Operation
ENGLISH OPERATION Fig. 17g WARNING: To reduce the risk of serious personal injury, turn unit off and unplug the tool before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury. WARNING: Before using the saw, verify the following each and every time: •... -
Page 22: Operating Components
ENGLISH Applications Fig. 19 1/8” (3 mm) -1/4” (6 mm) Workpiece 1/8” (3 mm) -1/4” (6 mm) 1/8” (3 mm) -1/4” (6 mm) You can use this tool for the purposes listed below: • Straight-line cutting operations, such as crosscutting, ripping, mitering, and compound cutting. - Page 23 ENGLISH Changing blade depth (Fig. 19, 21) into the saw blade. • Never hold and press the workpiece that is being cut Blade depth should be set so that outer points of blade off against the rotating saw blade. Pressing the are higher than workpiece by approximately 1/8 in.
- Page 24 ENGLISH Fig. 23b Fig. 22 Miter gauge (Fig. 24) The miter gauge provides accuracy in angled cuts. For very close tolerances, test cuts are recommended. Rip fence (Fig. 23a-23b) There are two miter gauge grooves, one on either side of blade.
-
Page 25: Push Sticks
ENGLISH • No special wood is needed to make additional push Fig. 25 sticks as long as it’s sturdy and long enough. Make sure that a push stick is long enough and has a notch that fits against the edge of the workpiece to prevent slipping. It’s a good idea to have several push sticks of the same length with different size notches for different workpiece thicknesses. -
Page 26: Auxiliary Fence
ENGLISH WARNING: Use a push block when the distance Fig. 28 between the fence and the saw blade is less than 2 in. (51 mm). Fig. 27 Wooden dowel How to mount a featherboard (Fig. 29) • Completely lower the saw blade. Position the rip fence Sandpaper or old mouse pad to the desired adjustment for the cut to be performed... -
Page 27: Cutting Tips
ENGLISH How to make and attach an auxiliary WARNING: Using rip fence as a cutoff gauge when cross cutting will result in kickback which can cause fence (for rip cutting thin workpiece) serious personal injury. (Fig. 30) WARNING: NEVER make freehand cuts (cuts without miter gauge or rip fence). - Page 28 ENGLISH • Use the miter gauge when making cross, miter, bevel, Fig. 31 and compound miter cuts. To secure the angle, lock the miter gauge in place by twisting the lock knob clockwise. Always tighten the lock knob securely in place before use.
- Page 29 ENGLISH Making a rip cut (Fig. 33) • Set miter gauge to the desired angle and tighten lock knob. WARNING: Make sure the blade guard assembly is • Make sure the wood is clear of the blade before turning on the saw. installed and working properly to avoid possible •...
- Page 30 ENGLISH • When cut is complete, turn saw off. Wait for blade to Fig. 36 come to a complete stop before removing workpiece. Fig. 35 Making a compound (bevel) miter cut (Fig. 37) Making a bevel rip cut (Fig. 36) WARNING: Make sure the blade guard assembly is installed and working properly to avoid possible WARNING: Make sure the blade guard assembly is...
- Page 31 ENGLISH Fig. 37 Fig. 38 Support Making a large panel cut (Fig. 38) Making a non-through cut (Fig. 39) Non-through cuts (made with a standard 10 in. blade) can Make sure the saw is properly secured to a work surface to be made with the grain (ripping) or across the grain (cross avoid tipping from the weight of a large panel.
- Page 32 (Dado table insert is sold separately, check cuts. www.craftsman.com). All blades and dado sets must not be • When the cut is made, turn the saw off. Wait for the rated less than the speed of this tool. This saw is designed blade to come to a complete stop before removing the for use with a 8 in.
- Page 33 ENGLISH Dust collection (Fig. 41) If the blade is not perfectly vertical (0°) (Fig. 42a-42b): • Unlock the bevel locking lever . This saw features a dust chute for convenience in • Loosen the 0° set screw (located at the left of the discharging sawdust.
- Page 34 ENGLISH NOTICE: Make sure that the square contacts the flat part of NOTICE: For greater accuracy, place the marked blade tooth the saw blade, not the blade teeth. on top of the ruler. • Lock the bevel locking lever . •...
- Page 35 ENGLISH WARNING: To reduce the risk of injury from kickback, If the distances are different: align the rip fence to the blade following any blade • Unlock the rip fence. adjustments. Always make sure the rip fence is • Use the 5 mm hex key (not supplied) to loosen the two parallel to the blade before beginning any operation.
-
Page 36: General Maintenance
ENGLISH Fig. 45 Fig. 47 MAINTENANCE WARNING: When servicing, use only identical replacement parts. Use of any other part may create a hazard or cause product damage. To adjust bevel indicator (Fig. 46) WARNING: Always wear eye protection with side shields marked to comply with ANSI Z87.1 during If the red line on the bevel indicator is not at zero when the product operation. -
Page 37: Troubleshooting
• Blade not proper for rip • Change blade; rip blade CRAFTSMAN Authorized Service Center. rip cut. cut. typically has fewer teeth. Consult CRAFTSMAN Authorized Service Center if for any reason the motor will not run. REPLACEMENT PARTS LIST PROBLEM CAUSE SOLUTION FREE WARNING LABEL REPLACEMENT: If your warning labels Excess vibration. -
Page 38: Register Online
FOR YOUR SAFETY: Registering your product will allow us • to contact you in the unlikely event a safety notification is required under the Federal Consumer Safety Act. Register online at www.craftsman.com/registration THREE-YEAR LIMITED WARRANTY • This table saw is warranted to the original purchaser from the original purchase date for three (3) years subject to the warranty coverage described herein.
