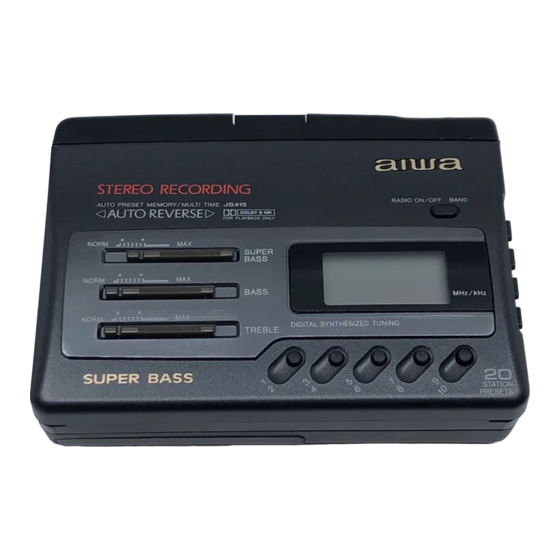

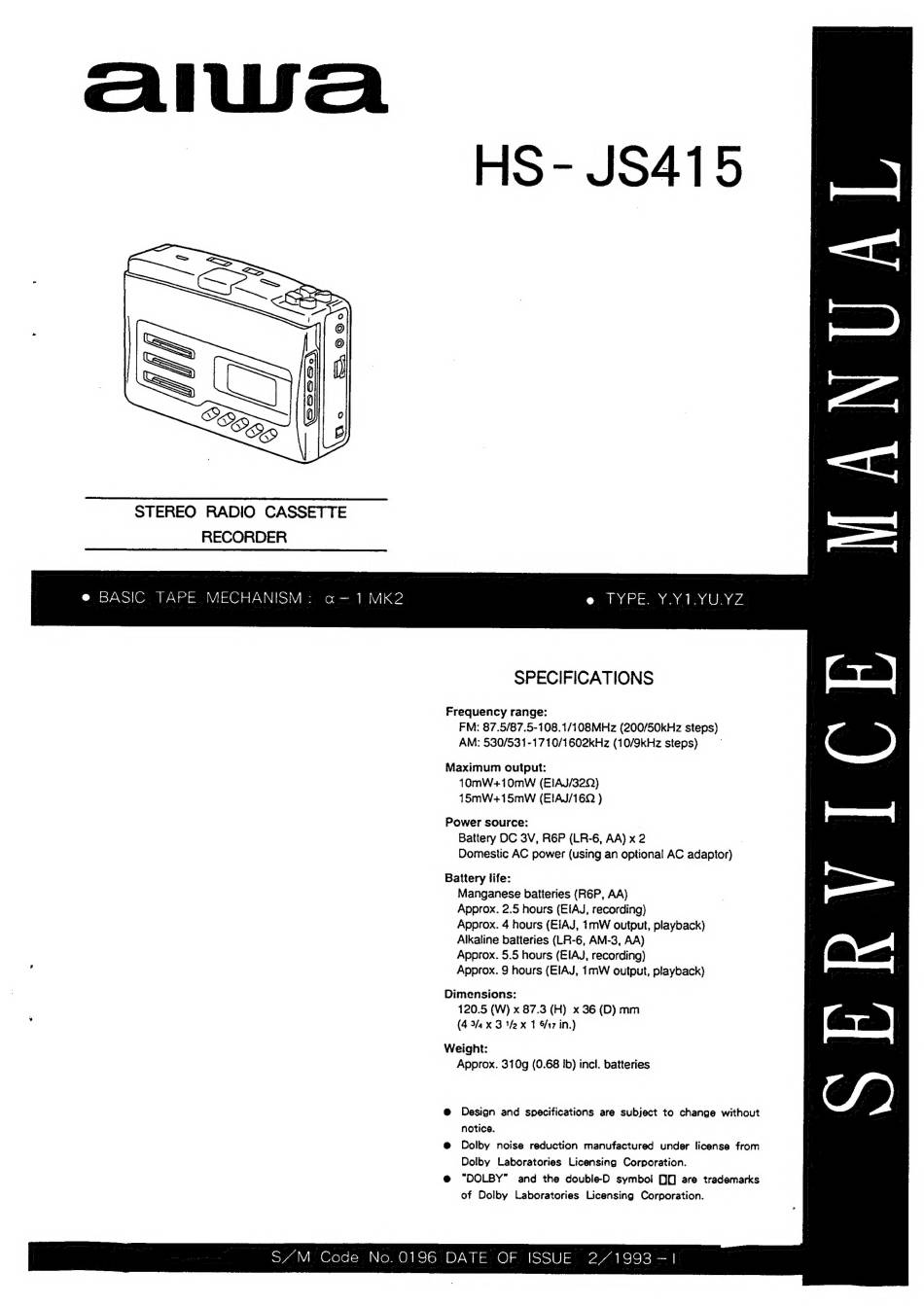

Aiwa HS-JS415 Service Manual

HS - JS415
STEREO RADIO CASSETTE
RECORDER
SPECIFICATIONS
Frequency range:
FM: 87.5/87.5-108.1/108MHz (200/50kHz steps)
AM: 530/531-1710/1602kHz (10/9kHz steps)
Maximum output:
10mW+710mW (EIAJ/32Q)}
15mW+15mW (EIAJ/16Q )
Power source: |
Battery DC 3V, R6P (LR-6, AA) x 2
Domestic AC power (using an optional AC adaptor)
Battery life:
Manganese batteries (R6P, AA)
Approx. 2.5 hours (EtAJ, recording)
Approx. 4 hours (E!AJ, 1mW output, playback)
Alkaline batteries (LR-6, AM-3, AA)
Approx. 5.5 hours (ElAJ, recording)
,
Approx. 9 hours (EIAJ,
1mW output, playback)
Dimensions:
120.5 (W) x 87.3 (H) x 36 (D) mm
. (4 3/4 x 3/2 x 1 6/17 in.)
Weight:
Approx. 310g (0.68 Ib) incl. batteries
@ Design and specifications are subject to change without
notice.
@ Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation.
@ "DOLBY" and the double-D symbo!l JJ are trademarks
of Dolby Laboratories Licensing Corporation.
S/M Code No. 0196 DATE OF ISSUE 2,/1993-|
—
<=
=
—
—
—
