R0E535M00CFK30
Converter Board for Connecting M16C/5L and M16C/5M Groups 80-pin 0.5mm pitch LQFP
1. Outline
The R0E535M00CFK30 is a converter board for connecting
the flexible cable R0E001000FLX10 to a foot pattern for
80-pin 0.5mm pitch LQFP (PLQP0080KB-A).
2. Package Components
Check to see if the R0E535M00CFK30 package has all the
following contents before using this product.
(1) R0E535M00CFK30 converter board........................... 1 pc.
(2) YQPACK080SD
(made by Tokyo Eletech Corporation)
(3) NQPACK080SD-ND
(made by Tokyo Eletech Corporation)
(4) YQ-GUIDE
(made by Tokyo Eletech Corporation)
(5) R0E535M00CFK30 User's Manual (this manual)
3. Specifications
Table 1 Specifications
Applicable package
Insertion/removal
iterations of connector
4. Usage (See Figure 2)
The R0E535M00CFK30 can be used for debugging and
on-board evaluation in
NQPACK080SD-ND on the user system..
(1) For debugging
Mount the NQPACK080SD-ND on the foot pattern of the
user system and attach the YQPACK080SD on it. In
addition, connect
YQPACK080SD, and then connect the flexible cable
R0E001000FLX10 of the emulator to the upper connector
of the R0E535M00CFK30.
(2) For on-board evaluation
Mount an MCU with on-chip flash memory or one-time
PROM and the HQPACK080SD (not included) in order
on the NQPACK080SD-ND on the user system..
Before using the R0E535M00CFK30, be sure to read the
precautions on page 3.
* NQPACK, YQPACK, YQSOCKET, YQ-GUIDE, HQPACK, TQPACK, TQSOCKET, CSSOCKET, CSPLUG/W and
LSPACK are trademarks of Tokyo Eletech Corporation.
REJ10J1922-0200 Rev.2.00
Apr 16, 2010
(See Figure 1)
................ 1 pc.
....... 1 pc.
.....................4 pcs.
PLQP0080KB-A:
formerly 80P6Q-A
(80-pin 0.5mm pitch LQFP)
50 times guaranteed
common by mounting
the R0E535M00CFK30
R0E535M00CFK30
converter board
YQ-GUIDE (×4)

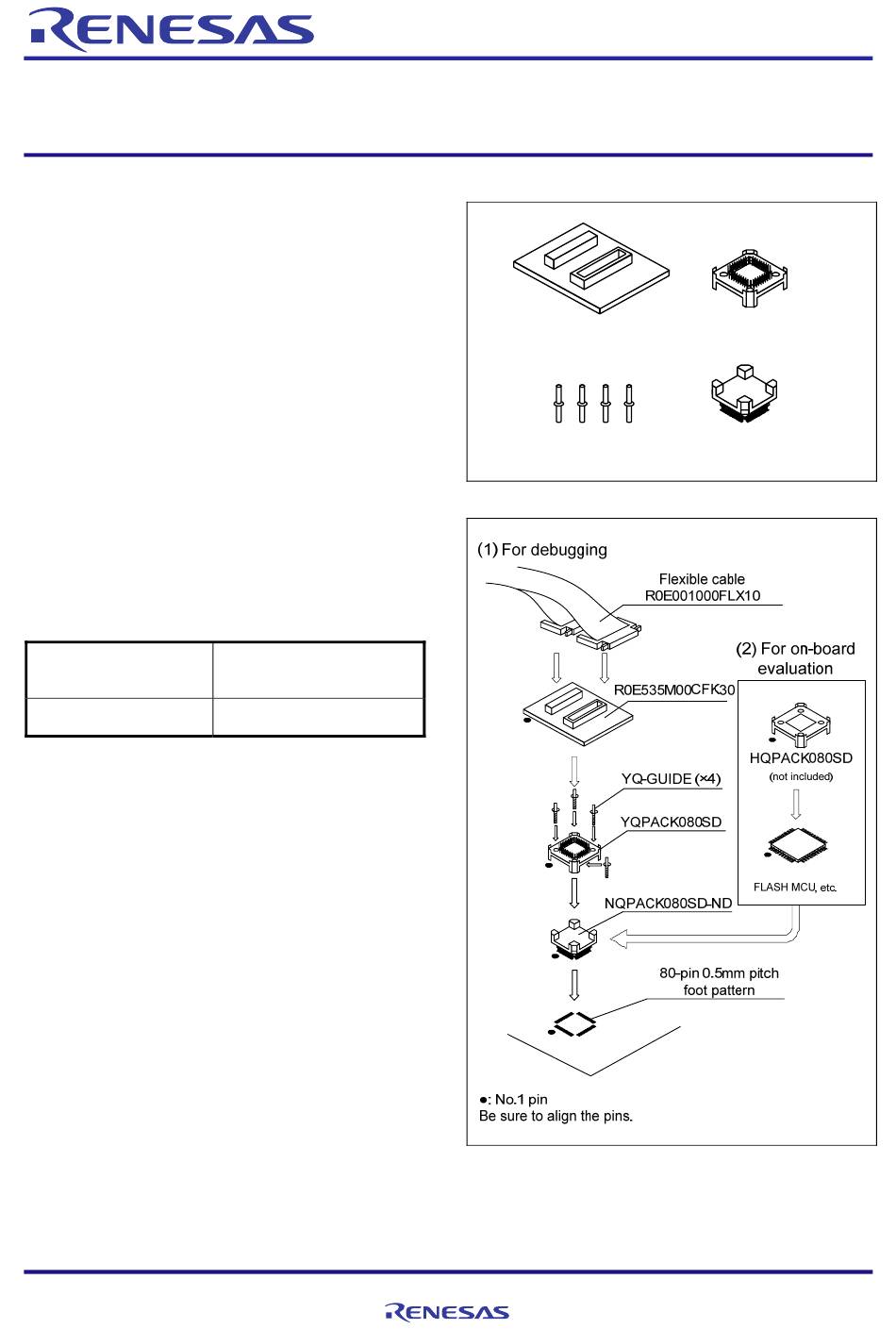

Figure 1 Package components of the R0E535M00CFK30
the
to the
Figure 2 Usage of the R0E535M00CFK30
User's Manual
REJ10J1922-0200
Rev.2.00
Apr 16, 2010
YQPACK080SD
NQPACK080SD-ND
