Renesas R0E53038ACFK30 User Manual

R0E53038ACFK30
Converter Board for Connecting R8C/38A, /38C, /38E, /38F, /38G and /38H Groups 80-pin 0.5mm pitch LQFP
1. Outline
The R0E53038ACFK30 is a converter board for connecting the
signals of the MCU unit R0E521300MCU00 for R8C Family
R8C/3x Series to a foot pattern for 80-pin 0.5mm pitch LQFP
of R8C/38A, /38C, /38E, /38F, /38G and /38H Groups.
2. Package Components (See Figure 1)
Check to see if the R0E53038ACFK30 package has all the
following contents before using this product.
(1) R0E53038ACFK30 converter board ........................... 1 pc.
(2) YQPACK80SD
(made by Tokyo Eletech Corporation)
(3) NQPACK80SD-ND
(made by Tokyo Eletech Corporation)
(4) YQ-GUIDE
(made by Tokyo Eletech Corporation)
(5) R0E53038ACFK30 User's Manual (this manual)

3. Specifications

Table 1 Specifications
Applicable package
Insertion/removal
iterations of connector
4. Usage (See Figure 2)
The R0E53038ACFK30 can be used for debugging and
on-board evaluation in
NQPACK80SD-ND on the user system.
(1) For debugging
Mount the NQPACK80SD-ND on the foot pattern of the
user system and attach the YQPACK80SD on it. In
addition, connect
YQPACK80SD, and then connect the flexible cable
R0E001000FLX10 of the emulator to the upper connector
of the R0E53038ACFK30.
(2) For on-board evaluation
Mount an MCU with on-chip flash memory or one-time
PROM and the HQPACK80SD (not included) in order on
the NQPACK80SD-ND on the user system.
Before using the R0E53038ACFK30, be sure to read the
precautions on page 3.
* NQPACK, YQPACK, YQSOCKET, YQ-GUIDE, HQPACK, TQPACK, TQSOCKET, CSSOCKET, CSPLUG/W and
LSPACK are trademarks of Tokyo Eletech Corporation.
REJ10J1898-0200 Rev.2.00
Apr 16, 2010
.................. 1 pc.
......... 1 pc.
.....................4 pcs.
PLQP0080KB-A
(80-pin 0.5mm pitch LQFP)
50 times guaranteed
common by mounting
the R0E53038ACFK30
R053038ACFK30
YQ-GUIDE (×4)

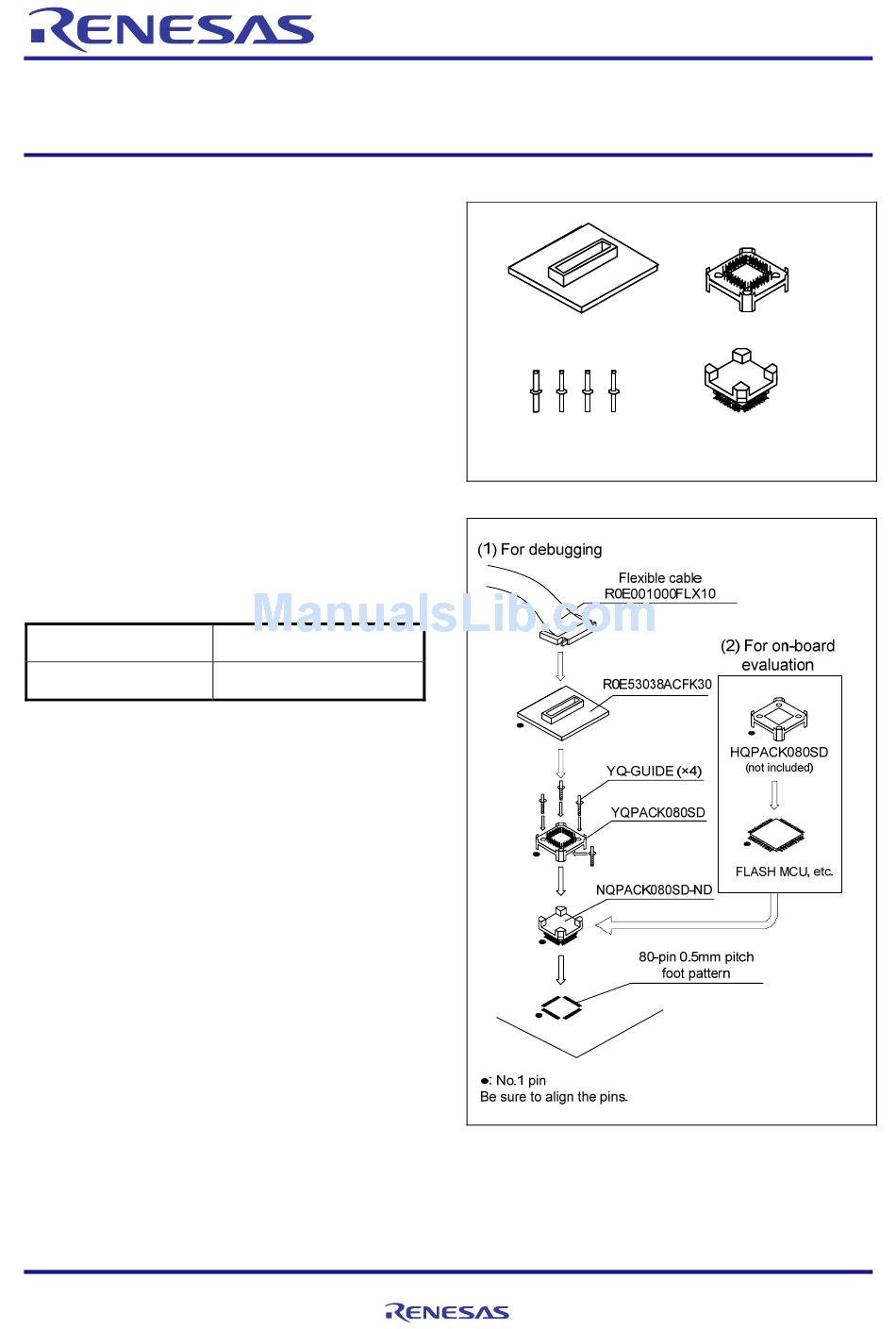

Figure 1 Package components of the R0E53038ACFK30
the
to the
Figure 2 Usage of the R0E53038ACFK30
User's Manual
REJ10J1898-0200
Rev.2.00
Apr 16, 2010
YQPACK080SD
NQPACK080SD-ND
Page 1 of 4
