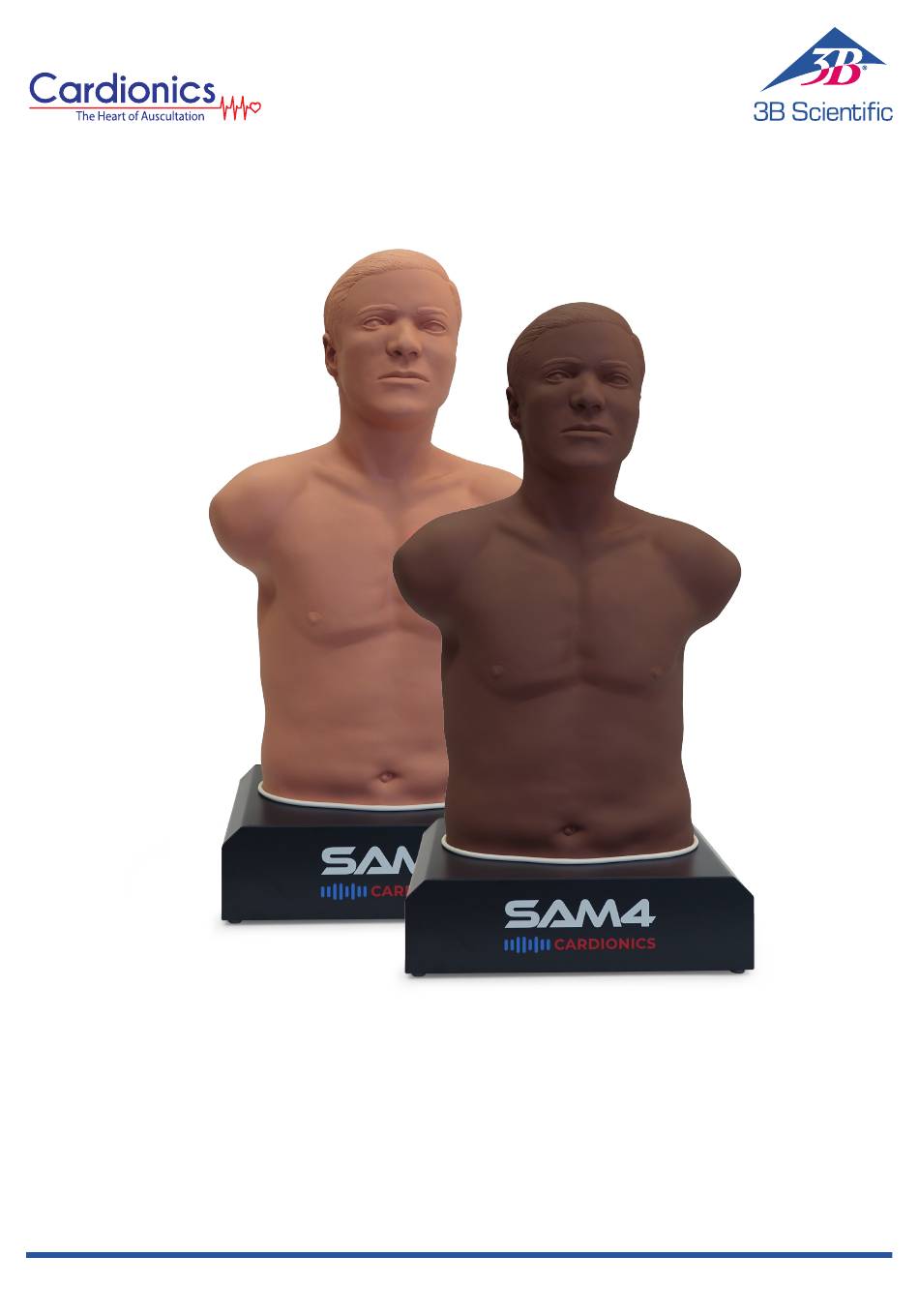

- Page 1 SAM4 – AUSCULTATION MANIKIN USER MANUAL 1024553 (718-8804), 1025087 (718-8904), 1025098 (718-8814), 1025099 (718-8914) DOC PN: 014-8834 REV A...
-
Page 2: Table Of Contents
CONTENTS Introduction ......................................................3 Safety Precautions ..................................................3 Product Description ..................................................3 Delivery Content .....................................................4 SAM4 Installation ....................................................4 Application download ..................................................4 Getting Started with the SAM4 App ............................................4 Cleaning ......................................................8 Transport and Storage ...................................................8 Operating Conditions ..................................................8 Limited Warranty .....................................................8 Contact Information ..................................................9 SAM4 –... -
Page 3: Introduction
SAM4 – AUSCULTATION MANIKIN INTRODUCTION Thank you for purchasing the Student Auscultation Manikin (SAM4), an interactive manikin for teaching students the art of auscultation. SAFETY PRECAUTIONS Attention: Read the manual and understand all warnings and cautions before using the manikin for the first time. Caution when using SAM4 Manikin: ·... -
Page 4: Delivery Content
SAM4 – AUSCULTATION MANIKIN DELIVERY CONTENT · SAM4 Manikin · SAM4 Power Supply with interchangeable plugs SAM4 INSTALLATION SAM4 Installation and powering the system 1. Place the SAM4 manikin on a flat table or desk. 2. Connect the SAM power supply to the SAM4 and wall outlet. 3. - Page 5 1 - Connecting the manikin to your device: · Via nearby devices: Click on this option and you will see a list of the manikins identified by the product Serial Number (the serial number can be seen on a label on the left side of the manikin’s base). Click on the Manikin-Serial Number to connect and a pop-up will confirm the connection. Red lights will blink on the manikin as a visual confirmation as well.
- Page 6 Sound settings 7 - Connect a Bluetooth device such as a speaker or earbuds. · Always select ‘Reset Paired Speakers’ to unpair any device paired previously · Put your speaker or earbuds in pairing mode · Select ‘Enable Wireless Speaker’ to connect to your device and wait for 30 seconds before selecting sound. 8 - Select the button on the right of Sound A or Sound B to pick one of the sounds in the library.
- Page 7 12 - Pick an auscultation point on the virtual manikin and change the parameters related to the sound by clicking on the volume settings. On this representation, a dynamic sound (Available only for SAM4 Plus version) can have the Rate changed from 50 to 150BPM. For all sounds, additional adjustments in the volume are available to accentuate specific sounds, such as Aortic, Pulmonic, Tricuspid and Mitral.
-
Page 8: Cleaning
SAM4 – AUSCULTATION MANIKIN CLEANING The SAM4 manikin can be cleaned using a standard alcohol swab or wipe (70% Isopropyl Alcohol). Before cleaning unplug all cables including power from the manikin. Do not use excessive liquid or immerse any part of the SAM manikin. Doing so may result in moisture getting inside the unit. TRANSPORT AND STORAGE The SAM manikin can be safely stored or transported with the following environmental conditions: -20°C to 65°C (-4°F to 149°F), <95% relative humidity. -
Page 9: Contact Information
CONTACT INFORMATION Imprint_3B_US_bw A worldwide group of companies Cardionics 3B Scientific GmbH 910 Bay Star Blvd. Ludwig-Erhard-Straße 20 • 20459 Hamburg • Germany Webster • TX 77598 • USA Phone: + 49 (0)40-73966-0 • Fax: + 49 (0)40-73966-100 Phone: +1-800-364-5901 3bscientific.com • info@3bscientific.com info@cardionics.com...
