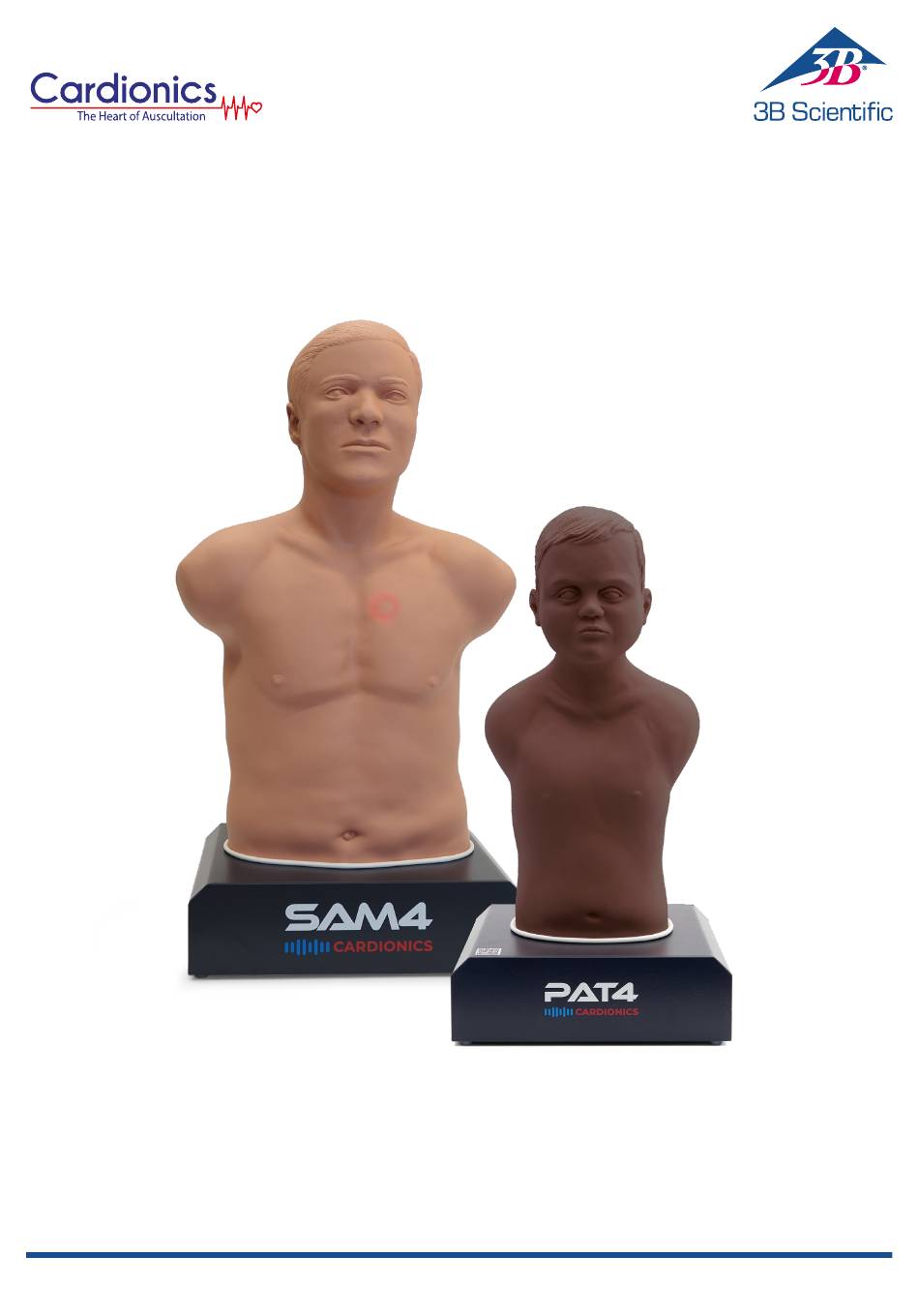

- Page 1 PAT4 AND SAM4 – AUSCULTATION MANIKINS USER MANUAL SAM4: 1024553 (718-8804), 1025087 (718-8904), 1025098 (718-8814), 1025099 (718-8914) PAT4: 1025486 (718-8852), 1025487 (718-8952)
-
Page 2: Table Of Contents
PAT4 AND SAM4 – AUSCULTATION MANIKINS CONTENTS Introduction ......................................................3 Safety Precautions ..................................................3 Product Description ..................................................3 Delivery Content .....................................................4 Manikin Installation ..................................................4 Application download ..................................................4 Getting Started with the SAM4 Online App ...........................................4 Cleaning ......................................................8 Transport and Storage ...................................................8 Operating Conditions ..................................................8 Limited Warranty .....................................................8 Contact Information ..................................................9 PAT4 AND SAM4 –... -
Page 3: Introduction
SAM4 – AUSCULTATION MANIKIN PAT4 AND SAM4 – AUSCULTATION MANIKINS INTRODUCTION Thank you for purchasing the Student Auscultation Manikin (SAM4) or the Pediatric Auscultation Trainer (PAT4), an interactive manikin for teaching stu- dents the art of auscultation. SAFETY PRECAUTIONS Attention: Read the manual and understand all warnings and cautions before using the manikin for the first time. Caution when using the manikin: ·... -
Page 4: Delivery Content
SAM4 – AUSCULTATION MANIKIN PAT4 AND SAM4 – AUSCULTATION MANIKINS DELIVERY CONTENT · SAM4 manikin or PAT4 manikin · Power Supply with interchangeable plugs MANIKIN INSTALLATION Installation and powering the system 1. Place the manikin on a flat table or desk. 2. - Page 5 1 - Connecting the manikin to your device: · Via nearby devices: Click on this option and you will see a list of the manikins identified by the product Serial Number (the serial number can be seen on a label on the left side of the manikin’s base). Click on the Manikin-Serial Number to connect and a pop-up will confirm the connection. Red lights will blink on the manikin as a visual confirmation as well.
- Page 6 Sound settings 7 - Connect a Bluetooth device such as a speaker or earbuds. · Always select ‘Reset Paired Speakers’ to unpair any device paired previously · Put your speaker or earbuds in pairing mode · Select ‘Enable Wireless Speaker’ to connect to your device and wait for 30 seconds before selecting sound. 8 - Select the button on the right of Sound A or Sound B to pick one of the sounds in the library.
- Page 7 12 - Pick an auscultation point on the virtual manikin and change the parameters related to the sound by clicking on the volume settings. On this representation, a dynamic sound (Available only for SAM4 Plus version) can have the Rate changed from 50 to 150BPM. For all sounds, additional adjustments in the volume are available to accentuate specific sounds, such as Aortic, Pulmonic, Tricuspid and Mitral.
-
Page 8: Cleaning
SAM4 – AUSCULTATION MANIKIN PAT4 AND SAM4 – AUSCULTATION MANIKINS CLEANING The manikin can be cleaned using a standard alcohol swab or wipe (70% Isopropyl Alcohol). Before cleaning unplug all cables including power from the manikin. Do not use excessive liquid or immerse any part of the manikin. Doing so may result in moisture getting inside the unit. TRANSPORT AND STORAGE The manikin can be safely stored or transported with the following environmental conditions: -20°C to 65°C (-4°F to 149°F), <95% relative humidity. -
Page 9: Contact Information
CONTACT INFORMATION A worldwide group of companies 3B Scientific GmbH Ludwig-Erhard-Straße 20 • 20459 Hamburg • Germany Phone: + 49 (0)40-73966-0 • Fax: + 49 (0)40-73966-100 3bscientific.com • info@3bscientific.com PAT4 AND SAM4 – AUSCULTATION MANIKINS | Contact information...
