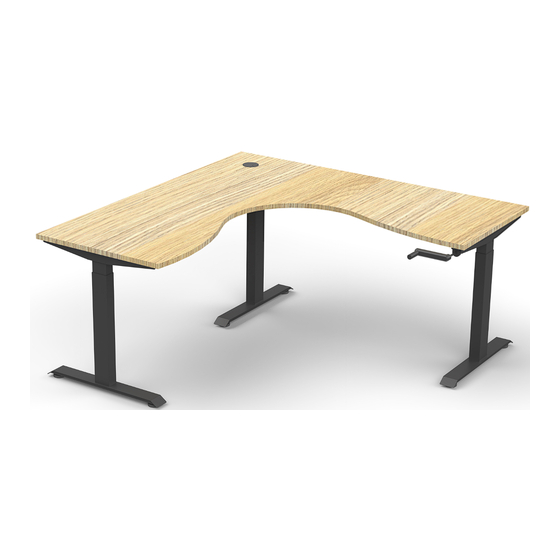

Boost Crank
Height Adjustable Desk Return frame
Instruction Manual
Table of Contents
Component parts ............................................................................................................................................ 2
Assembly Instructions ...................................................................................................................................... 3
Use Instructions ................................................................................................................................................ 6
Troubleshooting ............................................................................................................................................... 9
Important Safety Instructions ......................................................................................................................... 10
Advanced Programming ................................................................................................................................. 11
Return frame
Standard single workstation
1
Advertisement
Related Manuals for Rapidline Boost Crank BCRANKCORNERMS
Summary of Contents for Rapidline Boost Crank BCRANKCORNERMS
- Page 1 Boost Crank Height Adjustable Desk Return frame Instruction Manual Table of Contents Component parts ............................2 Assembly Instructions ……..........................3 Use Instructions …………............................ 6 Troubleshooting ………............................9 Important Safety Instructions …………………....................10 Advanced Programming …………………......................11 Return frame Standard single workstation...
-
Page 2: Component Parts
Component parts Component Name Component Name transmit Hand bolts M6x10 Leveling pads Centre bracket Table feet Top frame-2 Lifting column Bolt: M6x12 Screw:ST4x16 Side brackets Rubber pad Top frame-1... - Page 3 Assembly Instructions Step 1 Loosen the pre-installed bolts and Adjust the length of the top frame to match the size of the table top. Step 2 Inset the lifting column to the top frame. - First fix 2pcs screws M6x12 like B displayed - First fix 2pcs screws M6x12 like C displayed - And then tighten the pre-installed bolts like C displayed - And then tighten the pre-installed bolts like B displayed...
- Page 4 Step 3 Step 3 - Install the table feet with 4 PCS M6X16 bolts Install the table feet Screws 4 pcs M6x10,install the 4 leveling pads. - Install the leveling feet Step 4 Connect the return frame to the single workstation and fixed with 2 hand bolts. Install the side bracket with 2 PCS M6x12 Bolts Fix the centre brackets with 2pcs screws M6x12.
- Page 5 Step 5 Connect the return frame to the single desk and fix it with 2 PCS M6x12 Bolts Connect the return frame to the single workstation and fixed with 2 hand bolts. Adjust the side bracket to align the return frame and fix it with 2 PCS M6x12 Bolts Fix the centre brackets with 2pcs screws M6x10.
- Page 6 Add-On : Cable tray installation Step 1 - Fix the cable tray to the cable tray arms with 8 pcs M6x10 screws. Step 1 - Install the U brackets to the desk frame with 4 pcs M8x10 screws. - Mount the cable tray to the desk frame and fix it with 6 pcs M6x10 screws...
- Page 7 Add On : Screen panel installation Step 1 - Insert the tapped plates to the screen panel Step 2 - Install the brackets to the panel with 8 pcs M5x6 screws.
- Page 8 Step 3 - Fix the panel to the desk frame with 10 pcs M6x10 screws.
