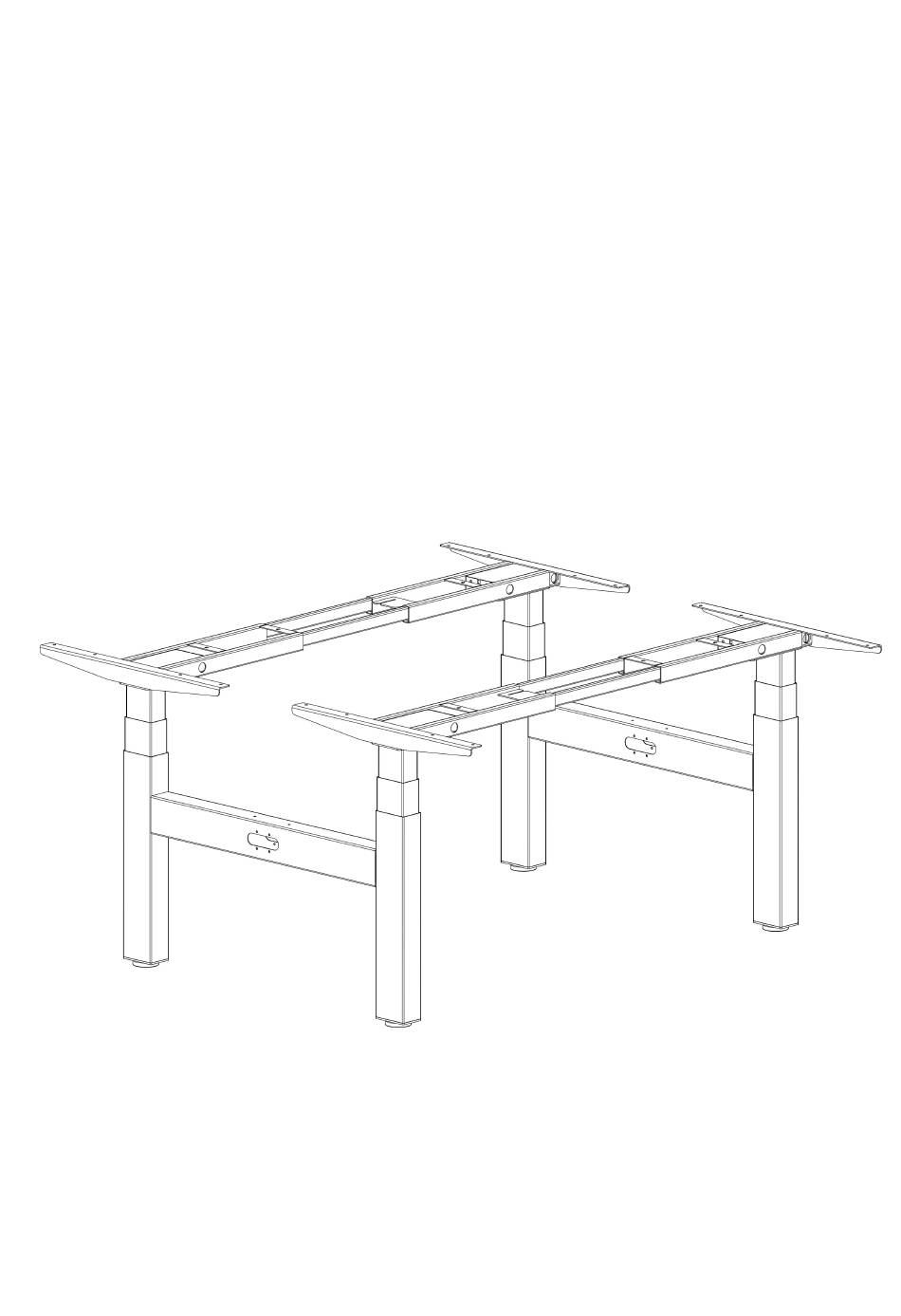

Back to back desk frame
Instruction Manual
Table of Contents
Component parts ............................................................................................................................................ 2
Assembly Instructions ...................................................................................................................................... 3
Use Instructions .......................................................................................................................................... 10
Troubleshooting ............................................................................................................................................. 12
Important Safety Instructions ......................................................................................................................... 13
Advanced Programming ................................................................................................................................. 14
1
Advertisement
Chapters
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Rapidline Boost Plus FXBSTPBTB
Summary of Contents for Rapidline Boost Plus FXBSTPBTB
-
Page 1: Table Of Contents
Back to back desk frame Instruction Manual Table of Contents Component parts ............................2 Assembly Instructions ……..........................3 Use Instructions …………..........................10 Troubleshooting ………............................ 12 Important Safety Instructions …………………....................13 Advanced Programming …………………......................14... -
Page 2: Component Parts
Component parts Component Name Component Name Leveling pad Bolts M6x16 Lifting Column Bolts M8x10 Side Bracket Connected beam ST4x20 Centre bracket Rubber pad Allen Wrench(5mm) Bolts M6x12 Allen Wrench(4mm) Top frame -1 Cable Tie Centre rails Handset Top frame-2 Control Box Bolts M6x10 Motor cable Screen brackets... -
Page 3: Assembly Instructions
Assembly Instructions Step 1 Loosen the pre-installed bolts and Adjust the length of the top frame to match the size of the table top. Step 2 Inset the lifting column to the top frame. - First fix 2pcs screws M6x12 like B displayed - And then tighten the pre-installed bolts like C displayed... - Page 4 Step 3 Install the side brackets with Screws 8 pcs M6x16, Step 4 Install the leveling pads...
- Page 5 Step 5 Install the connected pipe with 8 pcs screws M8x10 Step 6 Fix the screen brackets with 8 pcs screws M6x10. If you have a cable tray,please refer to the page 7 for a cable tray installation before you do the following assembly.
- Page 6 Step 7 Fix the table top with 21 pcs screws ST4x20 ,Fix the handset with 2 pcs screws with ST4x20 Install the centre bracket with 2 pcs screws M6x10 Step 8 Mount the control box to the frame,connected the cables well. Zipped the cables with cable tie.
- Page 7 Cable tray installation - Fix the cable tray with 8 pcs M6x10 screws to the desk frame.
- Page 8 Screen panel installation Step 1 - Insert the tapped plates to the screen panel Step 2 - Install the brackets to the panel with 8 pcs M5x6 screws.
- Page 9 Step 3 - Fix the panel to the desk frame with 8 pcs M6x10 screws.
-
Page 10: Use Instructions
Use Instructions A. Parts list 1. Lifting Column ……..........................2 pcs 2.Handset..........................1 pcs 3. Control Box ……............................1 pcs 4. Motor Cable …........................... 2 pcs 5. Power Cord …………..........................1 pcs Connect the cables as shown in the photo below: B. - Page 11 Control Panel Operation and Programming Instructions 1. Make sure all components are connected correctly (control box, control panel, power cable and connecting cable, lifting columns). 2. Connect the power cable to a 110/240VAC outlet. After the control panel will display "62.0" sign for a few seconds, the system is turn on and the desk is ready for use.
-
Page 12: Troubleshooting
Troubleshooting 1. HOT Issue: Operation of the control box, continuously, for more than 2 minutes. Solution: a. Wait 18 minutes. b. Disconnect the power cable, wait a few minutes, and then plug the cable to the power source. The error code will disappear. -
Page 13: Important Safety Instructions
Important Safety Instructions • Before using this device, read these operating instructions carefully and keep this user manual for future reference. • Before using the product, check the desk and power cables for any visible signs of damage. If you notice cuts or deep scratches, do not turn on the device. -
Page 14: Advanced Programming
Advanced programming 1Un-Display units setting ------------------------------------------------------------------------------------------------15 2br-Handset brightness setting-----------------------------------------------------------------------------------------15 3bE-Voice setting ---------------------------------------------------------------------------------------------------------------15 4Fu-Go up anti-collision sensitivity setting ----------------------------------------------------------------------------16 5Fd-Go down anti-collision sensitivity setting -------------------------------------------------------------------------16 6FS-Balance sensitivity---------------------------------------------------------------------------------------------------------17 7SH-Setting the new lowest display and height range ------------------------------------------------------------17 8Hc-Setting Constant-touch & One-touch --------------------------------------------------------------------------18 9St-Time Reminder setting ---------------------------------------------------------------------------------------------18 10H-Setting bounce height ----------------------------------------------------------------------------------------------18 11r-Restore Factory Defaults... -
Page 15: 1Un-Display Units Setting
1Un- Display units Change the numeric display to show heights in either inches or centimeters Press "M" button and hold 3 seconds, handset display "S--" ,Release “S” button,Press "M" button to enter,Display “ 1Un”,Press "M" button again to confirm the first programming setting. 1. -
Page 16: 4Fu-Go Up Anti-Collision Sensitivity Setting
4Fu-Go up anti-collision sensitivity The desk has an Anti-Collision Sensitivity that will stop the desk’s movement if it hits something on the way up. You can change this Sensitivity level by doing the following: Press "M" button and hold 3 seconds, handset display "S--" ,Release "M" button,Press "M" button again to enter,Display “... -
Page 17: 6Fs-Balance Sensitivity
6FS-Balance sensitivity The desk has a balance Sensitivity to make sure the 2 columns always work in the same position . You can change this Sensitivity level by doing the following: Press "M" button and hold 3 seconds, handset display "S--" ,Release “S” button,Press "M" button again to enter,Display “... -
Page 18: 8Hc-Setting Constant-Touch & One-Touch
8Hc- Setting Constant-touch & One-touch for go Up or Down Press "M" button and hold 3 seconds, handset display "S--" ,Release "M" button,Press "M" button again to enter,Display “ 1Un”. 1. Press UP or DOWN,It will display 8Hc 2. Press “ S” button to enter,It will display current mode ,Press UP or DOWN,It will display : Keep pressing UP or DOWN button to make the desk moving up or down. -
Page 19: 11R-Restore Factory Defaults
11r- Restore Factory Defaults Press "M"button and hold 3 seconds, handset display "S--" ,Release "M" button,Press "M" button again to enter,Display “ 1Un”. 1. Press UP or DOWN ,It will display 11r 2. Press "M" to enter,It will display and flash. 3.
