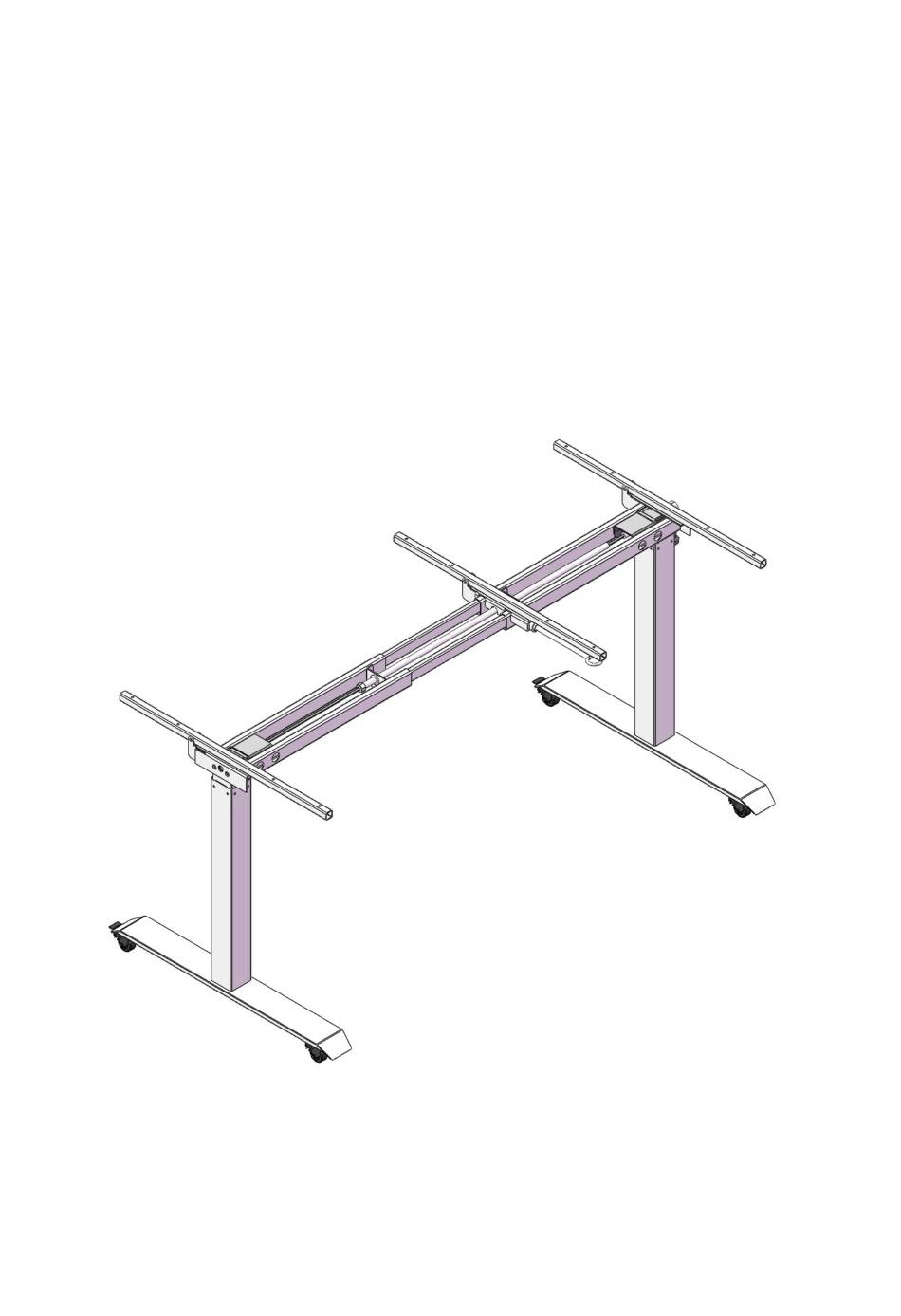

Crank height adjustable flip table (castors )
Instruction Manual
Table of Contents
Assembly Instructions ...................................................................................................................................... 2
Specifications ................................................................................................................................................ 5
1
Advertisement
Related Manuals for Rapidline BCFTFMS
Summary of Contents for Rapidline BCFTFMS
- Page 1 Crank height adjustable flip table (castors ) Instruction Manual Table of Contents Assembly Instructions ……..........................2 Specifications …………............................ 5...
- Page 2 Assembly Instructions Step 1 Adjust the length of top frame Step 2 Assembly the brackets to the top frame,Required Components: Parts: M8x40 Bolts ,3 pcs M8 Nylon nuts ,3 pcs...
- Page 3 Step 3 Installed the lifting column to the top frame. Required Components: Screws M6x10 - 8pcs Step 4 Install the table feet and castors Required parts: M6x16 bolts ,8 pcs Castors: 4 pcs...
- Page 4 Step 5 Insert the crank handle and fix the pre-installed aluminum pipe screws to prevent crank handle pull out like A displayed. Adjust the length of the top frame,tighten the aluminum pipe like B displayed. Required parts: M6x10 bolts ,8 pcs Step 6 Stick the rubber pads on the top frame before table top mounted,fixed with ST4x20 Screws.
-
Page 5: Specifications
Specifications Height range 700-1045mm Length: 1200-1800mm Load capacity: 80KG Recommend table top 1200-2000mm Warranty: 5 Years Limited Features Use human power” to operate UP and DOWN,Pull the handle that under desk to make tabletop flip. Unique width adjustable base accommodates most different-sized desktops Raises and lowers from 700mm to 1045mm Crafted from rolled stamped steel for superior strength and stability Offers a fine powder coat finish for maximum durability...
