Summary of Contents for WAGO 787-3861/400-1000

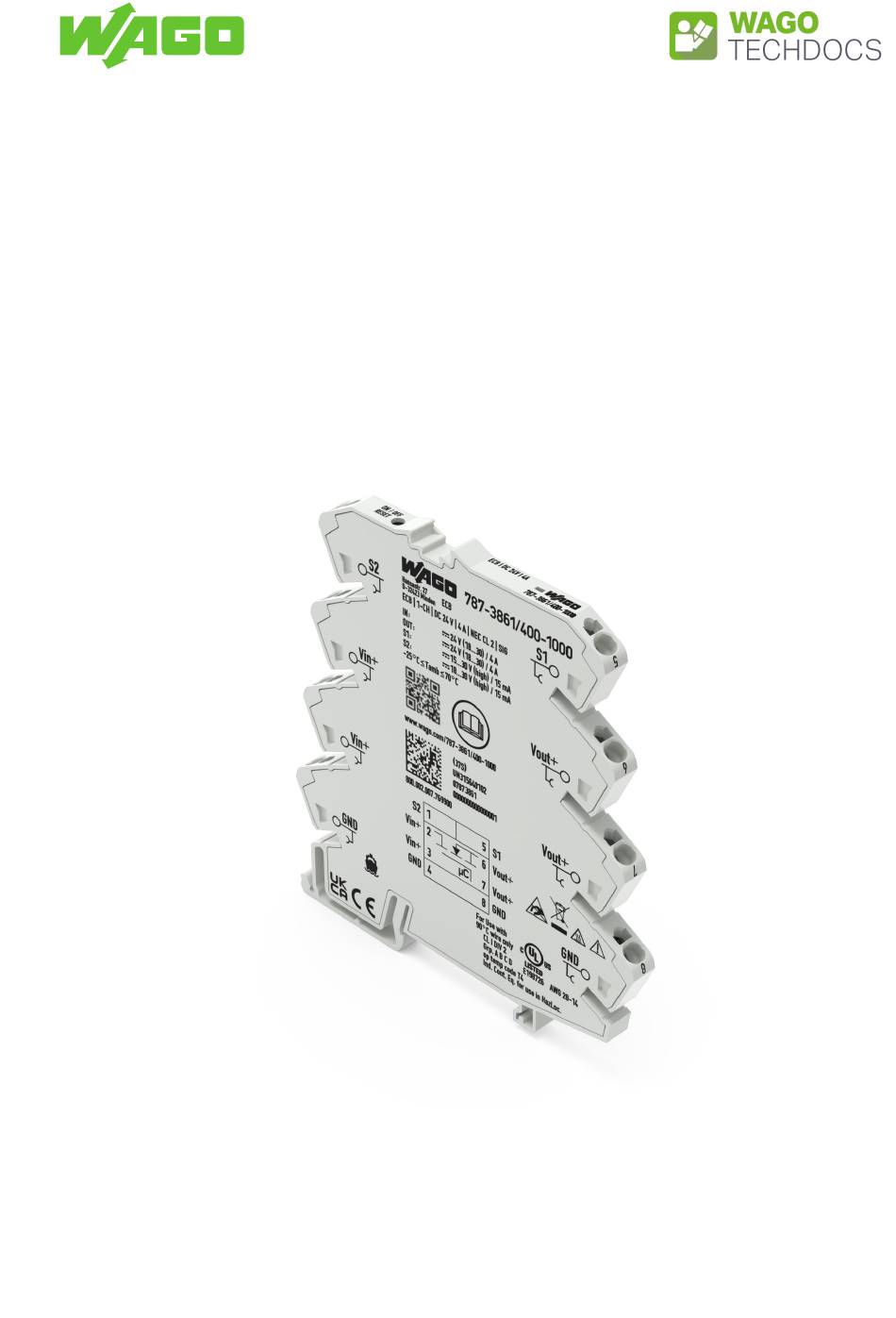

- Page 1 Electronic WAGO Circuit Breaker 1-channel; 24 VDC; 4 A; NEC Class 2 787-3861/400-1000 Product manual | Version 1.0.0 /WAGO/ WAGO...
- Page 2 We wish to point out that the software and hardware terms as well as the trademarks of companies used and/or mentioned in the present manual are generally protected by trademark or patent. WAGO is a registered trademark of WAGO Verwaltungsgesellschaft mbH. Product manual | Version: 1.0.0 Electronic Circuit Breaker...
-
Page 3: Table Of Contents
787-3861/400-1000 Table of Contents Table of Contents 1 Provisions ........................ 5 Intended Use ...................... 5 Typographical Conventions .................. 6 Definitions ........................ 7 Legal Information ..................... 8 2 Safety .......................... 9 General Safety Regulations.................. 9 Electrical Safety ....................... 9 Mechanical Safety .................... 9 Thermal Safety ...................... - Page 4 Table of Contents 787-3861/400-1000 8 Diagnostics ........................ 30 Diagnostics via Indicators .................. 30 9 Configuration ......................... 31 Configuration via Button .................. 31 10 Decommissioning ...................... 33 10.1 Disposal and Recycling .................. 33 11 Appendix ........................ 34 11.1 Power Supplies...................... 34 11.2 Protected Rights ....................
-
Page 5: Provisions
Warranty and Liability The provisions of the latest WAGO General Terms and Conditions of Deliveries and Ser- vices (GTC) apply as well as the Software License Terms for Standard Software (SW-Li- cense) applicable to software products und software embedded in WAGO hardware prod- ucts, both available at: ü www.wago.com. -
Page 6: Typographical Conventions
Provisions 787-3861/400-1000 Obligations of Installers/Operators The installers and operators bear responsibility for the safety of an installation or a sys- tem assembled with the product. The installer/operator is responsible for the proper in- stallation and safety of the system. All laws, standards, guidelines, local regulations and accepted technology standards and practices applicable at the time of installation, and the instructions in the the products’... - Page 7 787-3861/400-1000 Provisions Figures Figures in this documentation are for better understanding and may differ from the actual product design. Warning Messages DANGER Type and source of hazard Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
-
Page 8: Definitions
1.4 Legal Information Intellectual property The intellectual property of this document belongs to WAGO GmbH & Co. KG. The repro- duction and distribution of its content (in whole or in part) is prohibited, unless otherwise provided by statutory provisions, written agreements or this document. In case of doubt, the written consent of WAGO GmbH &... -
Page 9: Safety
787-3861/400-1000 Safety 2 Safety 2.1 General Safety Regulations • This documentation is part of the product. Therefore, retain the documentation during the entire service life of the product. Pass on the documentation to any subsequent user of the product. In addition, ensure that any supplement to this documentation is included, if necessary. -
Page 10: Thermal Safety
• Replace any defective or damaged devices. • Observe possible different technical specifications for mounting that does not corre- spond to the nominal mounting position. • Only use accessories authorized by WAGO. Product manual | Version: 1.0.0 Electronic Circuit Breaker... -
Page 11: Properties
787-3861/400-1000 Properties 3 Properties The product reliably protects load circuits against short circuits and overloads. The input voltage of 24 VDC (U Nom) can be protected by a current value of 4 A. Version Fuse protection 787-3861/400-1000 4 A The electronics can accommodate brief current peaks. -
Page 12: Connections
Properties 787-3861/400-1000 Status LED Technical Data Snap-in mounting foot Button Marking Field 3.2 Connections Figure 2: Connections S2 (signal output) Vin+ Vin+ S1 (control input) Vout+ Vout+ 3.3 Indicators The electronic circuit breaker has a status LED (a). • Status LED: The LED indicates the current operating status of the channel (see 8 Di-... -
Page 13: Controls
787-3861/400-1000 Properties Figure 3: Indicators Status LED Button 3.4 Controls 3.4.1 Button Table 2: Basic Functions of the Button Button Description Press During operation: Switches channel on and off In the event of error: Resets channel Hold down for > 3 seconds Requirement: The channel is switched off. -
Page 14: Technical Data
Properties 787-3861/400-1000 3.5 Technical Data 3.5.1 Product Table 3: Technichal Data – Product Property Value Dimensions 6 mm x 94 mm x 97,8 mm; Width x Depth x Height from upper-edge of DIN-rail 0,236 in x 3,701 in x 3,85 in Weight 53.6 g Degree of protection IP20 3.5.2 Input... -
Page 15: Safety
787-3861/400-1000 Properties Property Value The power supply must be able to deliver the maximum required power without the voltage falling below 20 VDC. 8 Power Supplies [ } Verified connectable load capacities depend on the power supply used; see 34]. Table 7: Technical Data – Signal Output... -
Page 16: Environmental Requirements
Properties 787-3861/400-1000 3.5.6 Environmental Requirements Note At nominal current ≤ 4 A there is no ambient temperature restriction! For products with nominal current ≤ 4 A , there is no restriction of the ambient tempera- ture range in the form of derating. The devices in the specified range −25 … +70 °C can be fully used. -
Page 17: Approvals
Emission standard for residential, commercial and light-industrial environments For additional information, visit ü www.wago.com. 3.6.2 Approvals The applicable guidelines, approvals and standards for the product can be found on the product detail page at: ü www.wago.com/787-3861/400-1000. Product manual | Version: 1.0.0 Electronic Circuit Breaker... -
Page 18: Functions
For some WAGO power supply units, possible load capacities have been determined em- 8 Power Supplies pirically (see [} 34]). -
Page 19: On Delay
Faulty tripping of channels that are connected in parallel may occur on the supply side with capacitive loads that are not protected against reverse discharge. • In this case, WAGO recommends taking suitable measures (e.g., a diode or MOS- FET) to decouple the capacitive load. 4.3 On Delay As soon as a minimum input voltage is present, the channel is activated with a time de- lay. -
Page 20: Table 16 Signal Output S2 - Signaling
Functions 787-3861/400-1000 Signal Output S2 The channel status can be queried at the signal output. The signal output is short-circuit- proof and has a common potential with the power supply ground. The High signal output is not tripped. The signal output can be configured in the default settings. -
Page 21: Distributing And Multiplying A Potential
787-3861/400-1000 Functions Channel State Signal Output S2 Tripp Cur- Early Early Early External Tripped rent Monitor- Monitor- Monitor- relay and Man- Flow ing 90 % ing 80 % ing 70 % control ually Moni- Switched toring Status 8 Red/yel- 0 V 0 V 0 V 0 V 0 V... -
Page 22: Potential Distribution Module
Functions 787-3861/400-1000 4.5.2 Potential Distribution Module WAGO's Power Distribution Modules (PDM) allow parallel connection with multiple lines to the fused supply voltage and GND potential by expanding product connections V out+ (8 Connections [} 12]). The housing contours and dimensions are based on the electronic circuit breakers. This allows the connection from PDM to push-in type jumper bars to be made directly;... -
Page 23: Planning
• The component DIN-rail contact (CuSn6) must not form a galvanic element with the DIN-rail that is capable of generating a differential voltage of more than 0.5 V (saline solution of 0.3% at 20°C/68°F). WAGO DIN-rails meet the electrical and mechanical requirements. Table 17: WAGO DIN-Rails Item No. -
Page 24: Connection Examples
The resulting behavior of signal output S2 can be found in table “Signal Output S2 – Sig- naling,” column “External Relay Control” (see Signal Output S2). WAGO offers the following relays for both variants (connection example: relay and all- pole fuse): Table 18: Relay... - Page 25 787-3861/400-1000 Planning Switching Off a Connected Load Circuit When Product Trips Figure 5: Connection Example: Relay Variant In this variant, the relay also switches off additional load circuits when the product has tripped. Product manual | Version: 1.0.0 Electronic Circuit Breaker...
- Page 26 Planning 787-3861/400-1000 Galvanic Isolation between Load Circuit and Input Potentials Figure 6: Connection Example: All-Pole Fuse Variant In this variant, two relays ensure that the load circuit is electrically isolated from the input potentials if the product has tripped. Product manual | Version: 1.0.0...
-
Page 27: Transport And Storage
787-3861/400-1000 Transport and Storage 6 Transport and Storage The original packaging offers optimal protection during transport and storage. • Store the product in suitable packaging, preferably the original packaging. • Only transport the product in suitable containers/packaging. • Make sure the product contacts are not contaminated or damaged during packing or unpacking. -
Page 28: Installation And Removal
Installation and Removal 787-3861/400-1000 7 Installation and Removal NOTICE Avoid electrostatic discharge! The products are equipped with electronic components that you may destroy by electro- static discharge when you touch. Please observe the safety precautions against electro- static discharge in accordance with EN 61340-5-1/-3. Pay attention while handling the products to good grounding of the environment (persons, job and packing). - Page 29 787-3861/400-1000 Installation and Removal Removal from the DIN-Rail Figure 8: Disassembly 1. To remove (see figure “Removal”), pull down the snap-in mounting foot (c) [1]. Use a screwdriver or an operating tool. 2. Tilt the product forward [2] and unhook it from the DIN-rail.
-
Page 30: Diagnostics
Diagnostics 787-3861/400-1000 8 Diagnostics 8.1 Diagnostics via Indicators Table 19: General Operating Statuses Operating Status LED State Level At Sig- Button Signal at Con- nal Output S2 Pushed trol Input S1 Status 0: 0 V Initialization of the product (boot process). Status 1: Green 24 V... -
Page 31: Configuration
787-3861/400-1000 Configuration 9 Configuration 9.1 Configuration via Button The button can be used to configure signal output S2: 1. Switch off the channel. ð The status LED lights up red. 2. Press and hold the button for at least 3 seconds. -
Page 32: Table 20 Flash Codes For Configuration Via Button
Configuration 787-3861/400-1000 Figure 9: Configuration routine Table 20: Flash Codes for Configuration via Button Flash Code (x) Signal Output S2 Status LED Description Tripped Current flow monitoring Early warning 90 % Early warning 80 % Early warning 70 % Option: external relay control Tripped or manually switched off The blink code is put out cyclically: x pulses (LED green), followed by a break time of 1.5 s. -
Page 33: Decommissioning
787-3861/400-1000 Decommissioning 10 Decommissioning 10.1 Disposal and Recycling WEEE Mark Electrical and electronic equipment may not be disposed of with household waste. This also applies to products without this mark. Electrical and electronic equipment contain materials and substances that can be harmful to the environment and health. -
Page 34: Appendix
Appendix 787-3861/400-1000 11 Appendix 11.1 Power Supplies Table 21: Power Supplies Power Supply 10 mF 20 mF 30 mF 40 mF 50 mF Tested Comment Base But- But- But- But- But- Load 2787-2144 5 A (Pro 2) √ √ √ √ √ √ √ √ √ √... - Page 35 • EnOcean is a registered trademark of EnOcean GmbH. ® • flexROOM is a registered trademark of WAGO Verwaltungsgesellschaft mbH. • Google Play is a registered trademark of Google Inc. • IO-Link is a registered trademark of PROFIBUS Nutzerorganisation e.V.
- Page 36 Undervoltage and Overvoltage Detection ................Table 15 Control Input S1 ......................... Table 16 Signal output S2 – Signaling....................Table 17 WAGO DIN-Rails ....................... Table 18 Relay..........................Table 19 General Operating Statuses ....................Table 20 Flash Codes for Configuration via Button .................
- Page 37 787-3861/400-1000 List of Figures List of Figures Figure 1 Example View ....................... Figure 2 Connections ........................Figure 3 Indicators ........................Figure 4 Connection Example..................... Figure 5 Connection Example: Relay Variant ................Figure 6 Connection Example: All-Pole Fuse Variant ..............Figure 7 Assembly ........................
- Page 38 WAGO is a registered trademark of WAGO Verwaltungsgesellschaft mbH. Copyright – WAGO GmbH & Co. KG – All rights reserved. The content and structure of the WAGO websites, catalogs, videos and other WAGO media are subject to copyright. Distri- bution or modification of the contents of these pages and videos is prohibited. Furthermore, the content may neither be copied nor made available to third parties for commercial pur-...
