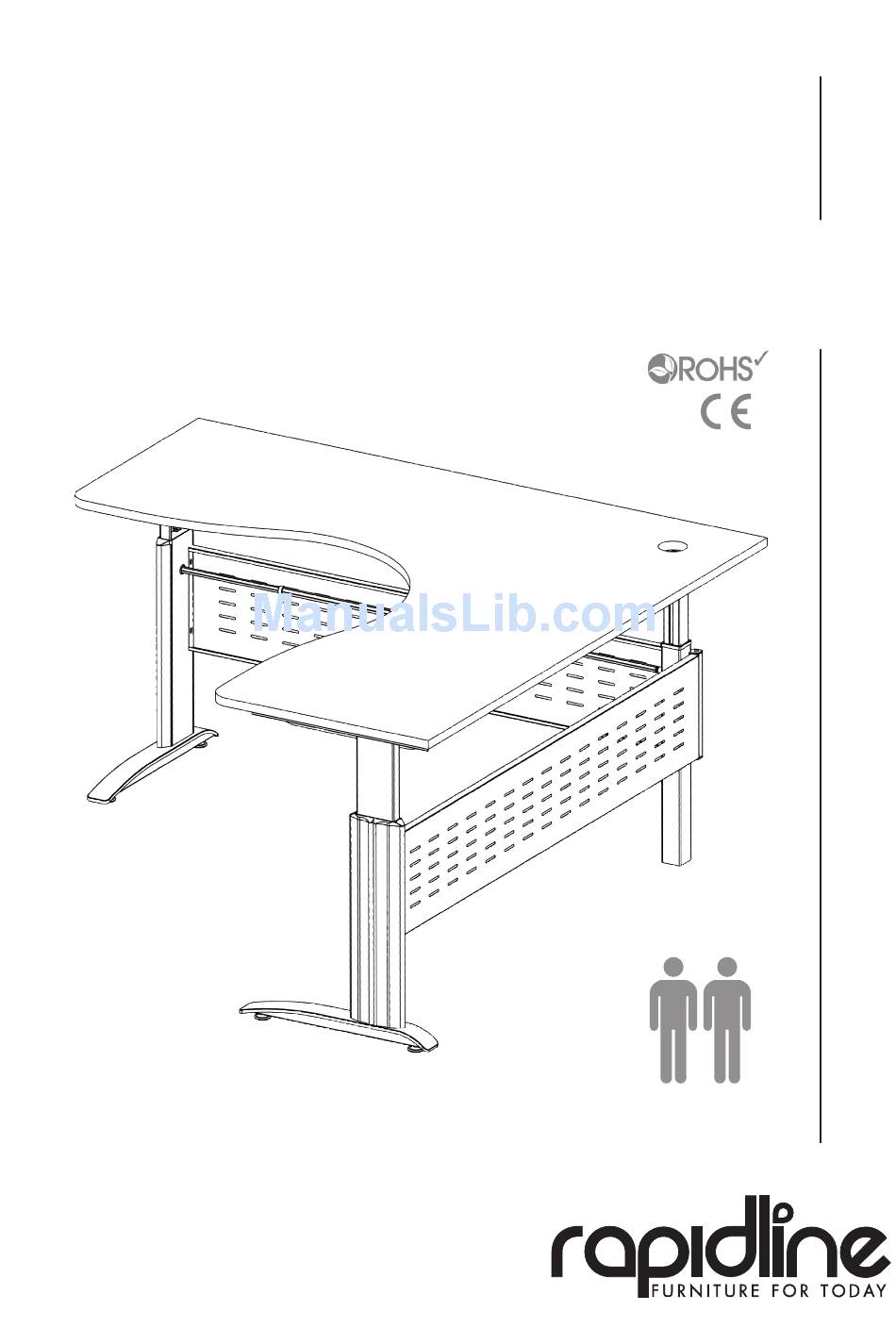

- Page 1 Assembly instructions SS-SPCNR PS...
- Page 2 TABLE OF CONTENT 1. SAFETY AND WARNINGS IMPORTANT NOTES ! 2. USAGE 3. SET UP AND INSTALLATION Prior to installation, use and 4. OPERATION maintenance of the table frame, any installer and any user of the table 5. MAINTENANCE AND DEFECTS must study this assembly and operation 6.
- Page 3 9. DECLARATION OF CONFORMITY We hereby declare, under our sole responsibility that the following products : – Sit and stand table product type SS-SPLEG PS combined with SS-SPCNR PS is in accordance with : – Directive 2006 / 42 / EF of The European Parliament and of the Council of 17 May 2006 on machinery...
- Page 4 7. Parts Legs 3rd leg Driveshaft packed with packed with Modesty panel Transformer Power cable Supplied in a separate package. Controller Stiffening rail incl. Adjustable glide 20 pcs. 5 * 20H screws NB : Stiffening rail is not required for 1200 W desks. Supplied in a separate package.
- Page 5 8. Assembly directions Pre-fitted Screws pre-fitted Assembly instruction...
- Page 6 – Fit telescopic driveshafts – extend both ends onto driveshaft spigots. – Do not over-tighten grup screws. Only very light pressure required. – Fit tabletop, first centre top and ensure that the correct length screw is used. – Desk frame and top have to be parallel before fixing the top –...
- Page 7 – Stiffening rail is not required for tabletops width 1200W – See component positions on page 8 – Raise desk and fit remaining screws to stiffening rail and screws to – See component positions on page 8 Assembly instruction...
- Page 8 Components position and wiring Black / Black Red / Red Important : Only plug leads red to red and black to black. To ensure correct up and down operation of the desk frame it has to be fitted with a tabletop or applied a similar weight. Without a tabletop fitted, the desk frame may not operate in the downward direction.
