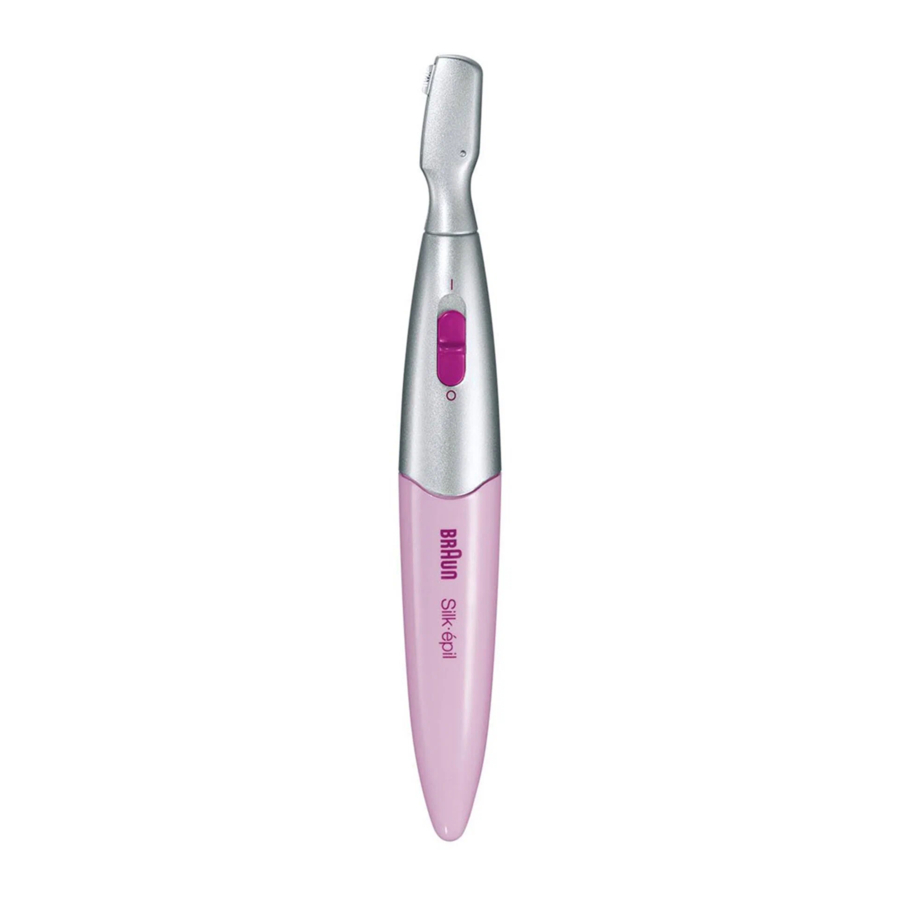

Braun Silk-epil FG 1100 (5363) - Epilator Manual

Introduction

We hope you will enjoy using the appliance. Please read the use instructions carefully and thoroughly before using it.

• The appliance is not intended for use by children or persons with reduced physical, sensory or mental capabilities, unless they are supervised by a person responsible for their safety. Keep the appliance out of reach of children to ensure that they do not play with it.
• Batteries may leak if empty or not used for a long time. In order to protect you and the appliance, please remove batteries in a timely manner and avoid skin contact whilst handling leaking batteries.
• For hygienic reasons, do not share this appliance with other persons.
• Do not use the appliance on irritated or inflamed skin.
• Never use the appliance with a dam- aged cutting head.

Description

1. Protective cap
2. Precision cutting head
3. Bikini zone cutting head
   1. Bikini zone trimming comb, 5 mm
   2. Bikini zone trimming comb, 8 mm
4. On/off switch « I / O »
5. Battery compartment cover
6. Brush

Inserting the battery

This appliance operates with one AAA 1.5 V battery. For best performance, use an alkaline manganese battery (type LR03, AM4, AAA, e.g. Duracell). This battery provides a shaving capacity of approximately 120 minutes. Frequent use of the bikini zone cutting head (3) will reduce the operation time.

• Make sure the appliance is turned off.
• Remove the battery compartment cover (5) by pulling downwards (a).
• Insert the battery with the (+) and (–) poles in the direction marked.
• Close the battery compartment.

Using the cutting heads

The appliance comes with different cutting heads that are uniquely contoured to remove unwanted hairs on every curve of your body, face and bikini area.

Getting started

• Remove the protective cap (1).
• Slide the on/off switch (4) up to turn the appliance on.
• Place the cutting head near to the hair to be removed and guide it slowly against the direction of hair growth. For optimum results, pull the skin taut with one hand while using.
• Turn the appliance off before changing the cutting heads.
• To remove the cutting head, rotate it counter-clockwise 90°, then lift it (b). To attach another one, insert it into the opening, then rotate 90° clockwise until it clicks into place.

The precision cutting head (2) is perfect for detailing of eyebrows and removal of stray hairs on all body areas.
The bikini zone cutting head (3) is ideally suited for use in the bikini area to cut precise lines or contours like the bikini line.

Bikini zone trimming

For trimming hair in the bikini zone to a uniform length, attach one of the bikini zone trimming combs (3a, 3b). To attach a trimming comb, slide the pointed side over the cutting element, then press the round side onto the bikini zone cutting head so that it snaps into place (d). Guide the appliance with the trimming comb flat against the skin.

Cleaning and maintenance

Always turn off the appliance before cleaning. Clean the appliance after each use:

• Use the brush (6) to wipe away any hair or dust.
• From time to time, you can rinse the detached cutting heads under warm running water. A natural soap may also be used, provided it contains no particles or abrasive substances. Rinse off all foam.
• Please ensure that the cutting head is completely dry before attaching to the body
• For storage, attach the protective cap (1).

We recommend lubricating the cutter element in the head with a drop of light machine oil twice a year or after cleaning with tap water.
Subject to change without notice.

Repairs and service
If you are sending your appliance for repair under Our Warranty, please pack the appliance adequately and send it to your nearest Service Agent, at your expense. For service or replacement parts refer to the authorised Service Agents listed overleaf. Local Service Agents may change from time to time – in that event please contact the Consumer Service free call number below for updated local service agent details.

Australian Consumer Service (free call): 1 800 641 820
New Zealand Consumer Service (free call): 0 800 108 909
Australian & New Zealand Service Agents

VICTORIA & TASMANIA
Statewide Services Pty Ltd trading as J A
Appliances
17-19 Hossack Avenue
Coburg North, VIC 3058
Tel. (03) 8371 9100 Fax. (03) 9355 8644
Email:
jaappliances@statewideservices.com.au

QUEENSLAND
Walters Import trading as Brisbane Appliance Service Centre
449 Beaudesert Road
Moorooka QLD 4105
Tel. (07) 3277 0360
Fax. (07) 3274 2909
Email: basc@waltersimport.com.au

WESTERN AUSTRALIA
Mark 1 Appliances
Unit 1, 46 Abernethy Road
Belmont, WA 6104 Tel. (08) 9475 0911
Fax. (08) 9475 0922
Email: mark1app@iinet.net.au

NEW SOUTH WALES & ACT
Faulder Appliance Services Pty Ltd
Shop 4,
9 Evans Road,
Rooty Hill, NSW 2766
Tel. (02) 9625 3064
Fax. (02) 9625 3037
Email: fas16@bigpond.com

SOUTH AUSTRALIA & NT
Adelaide Service Centre
Shop B2,
Parkholme Shopping Centre
319 Oaklands Road, Parkholme
Adelaide, SA 5043
Tel. (08) 8357 5800
Fax. (08) 8357 5833
Email: ascpkh@adam.com.au

NEW ZEALAND
Key Service Ltd
7D Echelon Place East Tamaki
Manukau City
Auckland
New Zealand
(PO Box 38569, Howick, Auckland, New Zealand)
Tel. (09) 916 0960
Fax. (09) 916 0970
Email: key-service-ltd@xtra.co.nz
