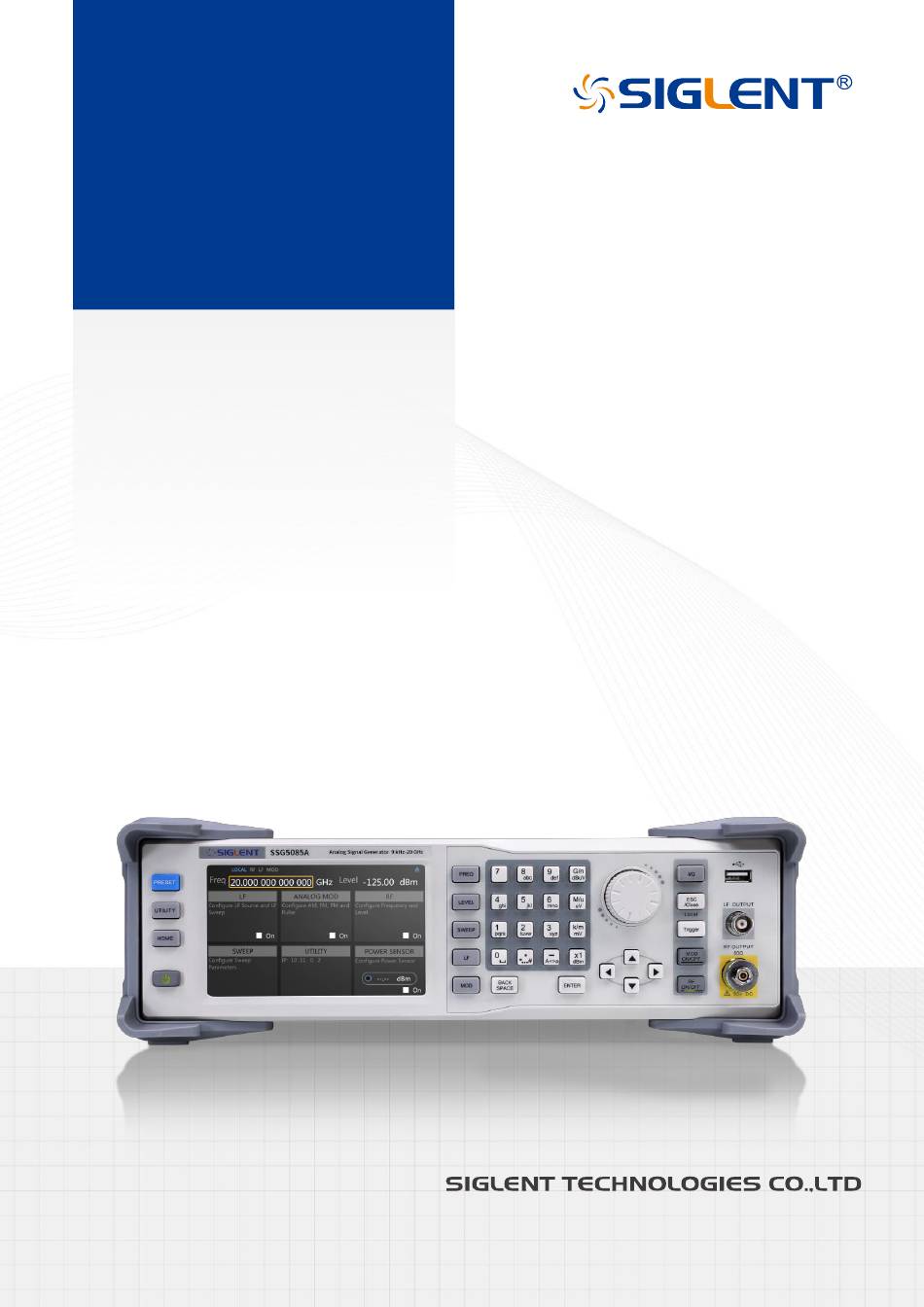

- Page 1 SSG5000A Series Microwave Signal Generator Quick Start EN01C...
-
Page 3: Copyright Information
Information in this publication replaces all previously corresponding material. Any method of copying, extracting, or translating the contents of this manual is not allowed without the permission of SIGLENT. Note: SIGLENT is the registered trademark of SIGLENT TECHNOLOGIES CO., LTD. SSG5000A Series Quick Start... -
Page 4: Table Of Contents
Preparation Before Use ....................... 10 Front Panel Introduction ...................... 12 Rear Panel Introduction ....................... 16 User Interface ........................18 Firmware Operations ......................20 Touch Operation ........................22 Help Information ........................23 Remote Control ........................23 More Information ......................... 24 SSG5000A Series Quick Start... -
Page 5: General Safety Summary
Avoid Exposed Circuits and Components Do not touch exposed contacts or components when the instrument's power is on. Use Only the Specified Fuse Do Not Operate Without Covers Do not operate the instrument with covers or panels removed. SSG5000A Series Quick Start... -
Page 6: Safety Terms And Symbols
Indicates potential injury or hazards that may happen. CAUTION Indicates potential damage to the instrument or other property that may happen. Symbols used in this product. These symbols may appear on the product: Hazardous Warning Protective Earth Ground Power Switch Voltage Earth Ground SSG5000A Series Quick Start... -
Page 7: Allgemeine Sicherheitsübersicht
Sorgen Sie daher für eine gute Belüftung und überprüfen Sie regelmäßig die Ansaugung und den Lüfter. Vermeiden Sie freiliegende Schaltkreise oder Komponenten Berühren Sie keine freiliegenden Kontakte oder Bauteile, wenn das Gerät eingeschaltet ist. Richtige Sicherung verwenden Verwenden Sie nur die angegebene Sicherung. SSG5000A Series Quick Start... - Page 8 Das Gerät darf nicht so positioniert werden, dass es schwierig ist, die Trennvorrichtung (abnehmbarer Stecker) zu bedienen. Wenn das Gerät auf eine Weise verwendet wird, die nicht vom Hersteller angegeben ist, kann der Schutz, den das Gerät bietet, beeinträchtigt warden. SSG5000A Series Quick Start...
-
Page 9: Sicherheitsbegriffe Und Symbole
Protective Warning Terminal Ground Power Switch Voltage Earth Ground Wenn Sie solche Symbole auf dem Produkt finden, ziehen Sie das Handbuch zu Rate, um die Art der potenziellen Gefahr und die zu ergreifenden Maßnahmen zu erfahren SSG5000A Series Quick Start... -
Page 10: General Care And Cleaning
If there are instruments found damaged, defective, or have failed any electrical and / or mechanical tests, please contact SIGLENT. Check the accessories Please check the accessories according to the packing list. If the accessories are incomplete or damaged, please contact your SIGLENT sales representative. SSG5000A Series Quick Start... -
Page 11: Mechanical Dimensions
Mechanical Dimensions Front View Top View SSG5000A Series Quick Start... -
Page 12: Preparation Before Use
A built-in web server provides an approach to interact with the signal generator by a web browser. It doesn’t require any additional software to be installed on the computer. Set the IP address of the generator in the browser address bar, and then the user can browse and control the generator on the web. SSG5000A Series Quick Start... - Page 13 Using the mouse to operate in the area is equivalent to directly operating on the display of the instrument 2. Click here to perform a screenshot 3. Click here to perform a firmware upgrade SSG5000A Series Quick Start...
-
Page 14: Front Panel Introduction
Set sweep state, step sweep, list sweep, sweep direction and other related SWEEP parameters Set LF state, LF level, LF frequency and other related parameters Set analog modulation parameters (AM, FM, PM and PULSE) I/ Q Set IQ related parameters (SSG5000A not support) SSG5000A Series Quick Start... - Page 15 English uppercase and lowercase characters, numbers and common symbols (including decimal point, space, negative sign and ! , @, #, $, %, ^, &, *), mainly for editing the name of files or folders and setting parameters (refer to the "parameter setting" section). SSG5000A Series Quick Start...
- Page 16 During the parameter editing process, pressing this key will delete the character to the left of the cursor In the parameter input process, pressing this key will end the parameter input and add the currently set unit for the parameter SSG5000A Series Quick Start...
- Page 17 Output the RF signal. Type: male 2.92mm. Impedance: 50 Ω. CAUTION Damage Levels: 50 Vdc; +30 dBm maximum RF power at frequency greater than 1 MHz; +25 dBm maximum RF power at frequency greater than 6 GHz. SSG5000A Series Quick Start...
-
Page 18: Rear Panel Introduction
If the instrument detects that there is a valid 10MHz signal at the [10MHz IN] connector, it will use it as an external reference source. At this point the user interface status bar shows "Ext Ref". When an external SSG5000A Series Quick Start... - Page 19 When PULSE trigger source is "Int ", the connector can be used to output the trigger signal. When the RF Sweep, LF Sweep, or PULSE trigger source is "Ext", the connector is used to input the external trigger signal. 11. Ground The system ground terminal. SSG5000A Series Quick Start...
-
Page 20: User Interface
OFFSET: Amplitude offset enabled. The identification is displayed when a USB disk is inserted. LAN: LAN state. indicates that LAN is successfully connected. indicates that there is no network connection or network connection failed. SSG5000A Series Quick Start... - Page 21 RF: RF output state. Frequency or level can be set. SWEEP: RF Sweep state and related parameters can be set. UTILITY: System and file related parameters can be set. POWER SENSOR: Power sensor state and power sensor related parameters can be set. SSG5000A Series Quick Start...
-
Page 22: Firmware Operations
When the remaining time of a certain function is zero, the function will be disabled. When a license is successfully installed for a certain function, the remaining times will be shown as “--” and the type of the license will be permanent, which means users have unrestricted access to the function. SSG5000A Series Quick Start... - Page 23 > Update , and select the update file. Click Recall to update the system software. The progress bar will appear on the screen while updating. The instrument will restart automatically if updates succeed or display a pop-up prompt box if updates fail. SSG5000A Series Quick Start...
-
Page 24: Touch Operation
The signal source provides a 5-inch capacitive touch screen to support various gesture operations, including: Click on the screen parameters or menu to pop up a virtual keyboard where you can edit the parameters. Left or right slide switches menus. Up or down slides the display menu. SSG5000A Series Quick Start... -
Page 25: Help Information
The generator supports communication with compatible computers via USB, LAN or GPIB-USB interface. By using these interfaces, in combination with programming languages and/or NI-VISA software, users can remotely control the signal generator. More information can be found in the SSG5000A Programming Guide available on the SIGLENT website. SSG5000A Series Quick Start... -
Page 26: More Information
Provides detailed introductions of the functions of this instrument. SSG5000A data sheet: Provides the main characteristics and specifications of this instrument. SSG5000A programming manual: Provides detailed introductions of the SCPI commands and programming of this instrument. SSG5000A Series Quick Start... - Page 28 Headquarters: SIGLENT Technologies Co., Ltd Add: Bldg No.4 & No.5, Antongda Industrial Zone, 3rd Liuxian Road, Bao'an District, Shenzhen, 518101, China Tel: + 86 755 3688 7876 Fax: + 86 755 3359 1582 Email: sales@siglent.com Website: int.siglent.com North America: SIGLENT Technologies America, Inc...
