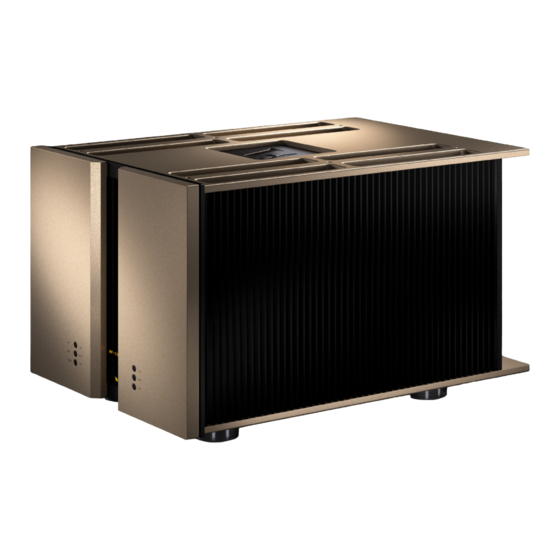

MASTERPIECE
SERIES
MP–M201 Mk.II
MONAURAL
POWER AMPLIFIER
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MASTERPIECE Series and is the answer not in the manual?

Questions and answers

Related Manuals for Vitus Audio MASTERPIECE Series

Summary of Contents for Vitus Audio MASTERPIECE Series

  • Page 1 MASTERPIECE SERIES MP–M201 Mk.II MONAURAL POWER AMPLIFIER OWNER’S MANUAL...

  • Page 2: Table Of Contents

    Introduction Fuse type About this manual Replacing a blown fuse 22-23 Firmware updating 24-25 Introduction to the Masterpiece Series 7 1. Getting started 5. Warranty Warranty What’s in the boxes, and how to correctly unpack them Heavy lifting – WARNING 6.

  • Page 3: From The Creator

    As a result of the above, our amplifiers do not “focus” on any specific frequencies - i.e. no extension of top or bass, At Vitus Audio everything works until proven not to. This way we which of course results in high clarity of the midrange since always try to push the limits and explore the unexplored.

  • Page 4: Introduction To The Masterpiece Series

    Although some operations are The Masterpiece Series was born out of requests from the market, It took us several years to get a foundation of products that could self-explanatory, we strongly suggest you read this manual to avoid unit.

  • Page 5: Getting Started

    1. GETTING STARTED 1. GETTING STARTED What’s in the boxes, and how MP-M201 Mk.II device overview to correctly unpack them 435 mm After you have removed the top of the box, remove the top corners. Box contents MP-M201 Mk.II Next, remove the wooden sides of the box. With two people careful- ly lift the amplifier off the bottom foam corners and place it directly onto the floor or stand.

  • Page 6: Turning The Mp-P201 Mk.ii On And Off

    1. GETTING STARTED 1. GETTING STARTED Turning the MP-PM201 Mk.II on and off Always turn on the products beginning from the source: Do not remove the power cable between the PSU and the amp Source Pre-amplifier Power amplifier until 15 minutes after turning off the amplifier. The PSU contains a tremendeous amount of capacitance that requires time to slowly Always turn off your products in reverse order: discharge before separating the PSU with the amplifier.

  • Page 7: Connecting

    2. CONNECTING 2. CONNECTING Connecting the MP-M201 Mk.II The rear panels MP-M201 The speaker terminal Mk.II 100 W Speaker Outputs Caution The MP-M201 Mk.II is equipped with Furutech’s Torque Guard This is a true balanced under any circumstance Binding Posts. Place your Jack, Spade or wire in the binding connect (-) speaker output to ground.

  • Page 8: Operation

    3. OPERATION 3. OPERATION Operation modes Operation modes The MP-M201 Mk.II has 3 operation modes 1. NORMAL This is the mode you use when listening to music. 2. MENU In this mode you can alter the settings of the MP-M201 Mk.II. 3.
  • Page 9 3. OPERATION 3. OPERATION Functions – MP-M201 Mk.II Functions – MP-M201 Mk.II left front panel right front panel A/AB A/AB MENU SELECT MUTE MENU SELECT MUTE STANDBY STANDBY Normal mode Menu mode Normal mode Menu mode In normal mode there are 3 basic functions/buttons available You enter menu mode, by pushing the “MENU”...

  • Page 10: The Elements In The Menu

    3. OPERATION 3. OPERATION The elements in the menu The MP-M201 Mk.II menu structure You can modify the settings of your MP-M201 Mk.II by entering the menu and selecting the options you require. Refer to the menu structure diagram on page 19 for specific information.

  • Page 11: Operation And Service

    Mains fuse Fuse type: Vitus Audio products are designed to run for many years without Any unit may be set for operation in 100V, 115V or 230V AC. The mains fuse is accessible from the outside of the amplifier. You Physical size - 20 x 5mm the need for regular maintenance.

  • Page 12: Replacing A Blown Fuse

    4. OPERATION AND SERVICE 4. OPERATION AND SERVICE Replacing a blown fuse Replacing a blown fuse REMOVE THE POWER CABLE The fuse carrier is placed on the back under the power Take a small flat bladed screwdriver and place it over Push the fuse carrier back in place.

  • Page 13: Firmware Updating

    4. Plug the power chord into the MP-M201 Mk.II PSU. You can contact your local Vitus Audio dealer if you are uncertain 5. The display will show “NEW FW” while updating (this takes about 5 seconds).

  • Page 14: Warranty

    INPUT (Each set) XLR Analogue Audio or an authorised Vitus Audio repair center by the customer damage to chassis parts. (See 6) at his or her sole expense. Vitus Audio will pay return freight of Available 2. CONDITIONS its choice.

  • Page 15: Examples Of Operation

    7. EXAMPLES OF OPERATION 7. EXAMPLES OF OPERATION Operate as class A Changing display brightness A/AB A/AB MENU SELECT MUTE MENU SELECT MUTE STANDBY STANDBY EXAMPLE 1 EXAMPLE 2 Operate as a class A Changing display brightness The MP-M201 Mk.II can be set to operate in either Class AB The display on MP-M201 Mk.II can be set to different brightness or Class A mode.

  • Page 16: Configuring Auto Standby

    7. EXAMPLES OF OPERATION 7. EXAMPLES OF OPERATION Configuring auto standby Restore factory settings A/AB A/AB MENU SELECT MUTE MENU SELECT MUTE STANDBY STANDBY EXAMPLE 3 EXAMPLE 4 Configuring auto standby Restore factory settings The MP-M201 Mk.II can be configured to automatically go into The MP-M201 Mk.II can be restored to it’s factory settings if needed.

  • Page 17: Mp-M201 Mk.ii Owner's Manual

    HANDCRAFTED IN DENMARK AVA Group A/S (Vitus Audio) Hammershusvej 3L DK-7400 Herning Denmark Phone: +45 9626 8046 e-mail: sales@avagroup.nu Web: vitusaudio.com 32 | MP-M201 Mk.II Owner’s manual...
