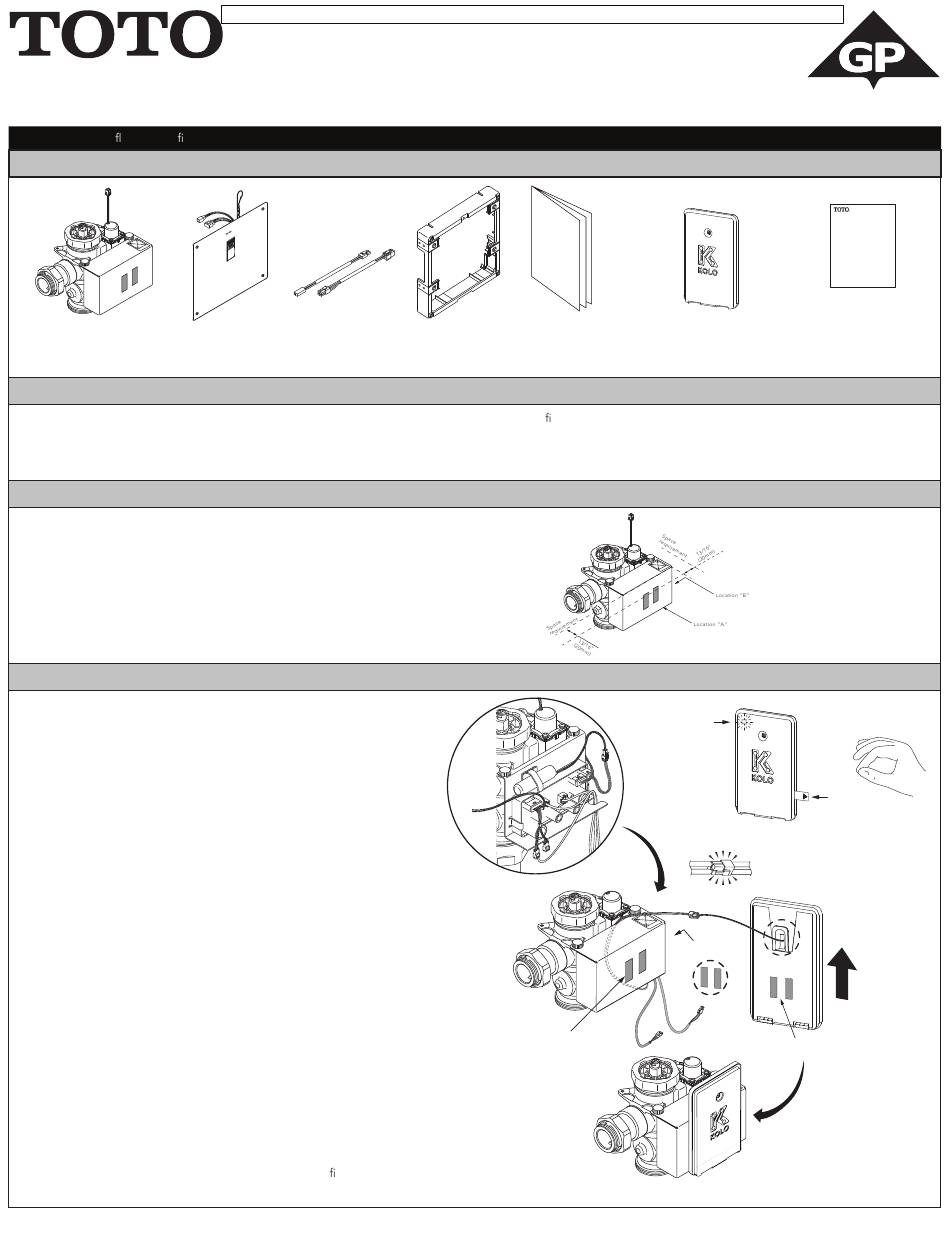

Toto ECOPOWER Installation Manual

TET2UBi2#SS/TET2LBi2#SS/TET2GBi2#SS/TET3UBi2#SS/TET3LBi2#SS/TET3GBi2#SS
NOTE: Install the ush valve rst. Follow the instructions in the Flush Valve Installation & Owners Manual 0GU3094.
Valve Body Assembly
*Parts may vary in appearance depending on model#, TET2LBi2#SS shown.
Please read and adhere to these notes. Failure to do so could result in personal injury, risk of re or smoke and/or property damage.
- Install the product according to installation instructions.
- Install the product in the correct vertical orientation.
- Do not use or operate the product with it's covers removed.
Make sure there is enough space for the daughter card enclosure to attach at
location "A" or "B" without interference. A minimum of 13/16" (20mm) clearance
around the controller case is required.
Do not drop enclosure! Handle with care!
1. Pull the battery tab out from daughter card enclosure.
NOTE: Red LED light will blink to indicate that procedure is functioning.
2. Remove the controller cover and guide the IoT wire harness
(black & white) out through the notch on the bottom of the controller
case.
3. Reattach the controller cover. Be careful to keep the IoT wire harness
and the connection cables in the notch. Do not pinch. Do not kink.
4. Route the IoT wire harness under the controller case and then
between the case and valve body as shown. Let the end of the
harness rest on the top of the controller case.
5. Line up the velcro strips on the daughter card enclosure to the
corresponding strips on the controller case (Location "A")
and attach. If there is any obstacle to mounting at location "A",
use location "B".
6. Connect the daughter card wire harness connection. Listen for
the "click" indicating a secure connection.
7. Coil the daughter card connection harness neatly and make
sure the harness and connectors are above the controller case.
8. Test Run.
9. Commit the daughter card according to GP's Instructions.
Follow the instructions in the Flush Valve Installation Instruction Manual
(0GU3094) to complete the installation.
Please contact TOTO at 888-295-8134, or Georgia Paci c at 800-890-0896 or
KOLOhelp@gapac.com for any questions regarding installation or maintenance.
0GU3097 Rev.A
KEEP THIS DOCUMENT FOR REFERENCE AND MAKE AVAILABLE FOR MAINTENANCE PERSONNEL.
ECOPOWER Concealed Flush Valve
Daughter Card Installation Manual
Cover Plate Connection cables

BEFORE INSTALLATION

INSTALLATION PROCEDURE

INCLUDED PARTS

Frame Manual (0GU3094)

WARNINGS

Location "A"
Velcro
Daughter Card Enclosure
(Refers to this document)
GP Part # 61000KB
TOTO Part # THP3395
LED Light
NOTE:
"CLICK" sound.
Location "B"
Velcro
Velcro
Manual
Battery Tab
T O P
