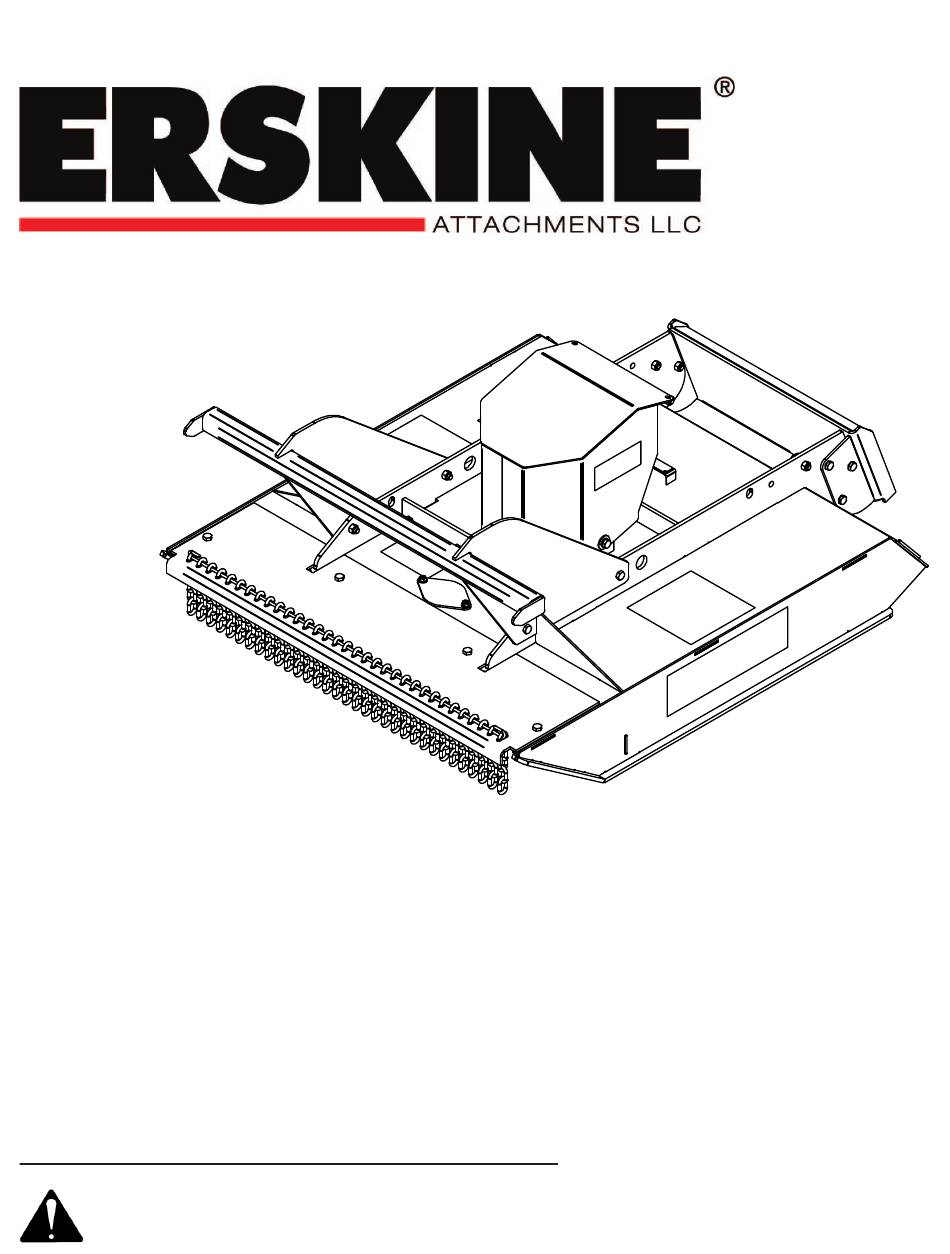

- Page 1 MINI BRUSH MOWER DIRECT DRIVE MODELS 48/54 Operator’s Manual Maintenance & Parts Information Read this Manual Before Use...
-
Page 2: Table Of Contents
___________________________________________ Address ___________________________________________ Phone Number ___________________________________________ Contact NOTE: Erskine Attachments LLC reserves the right to make improvements in design or changes in specifications at any time without notice and without incurring any obligations to install them on units previously sold. -
Page 3: Safety
Indicates a potentially hazardous situation Erskine Attachments LLC cannot anticipate which, if not avoided, will result in death or every possible circumstance that might serious injury. - Page 4 • Do not modify equipment or add performing maintenance on hydraulic attachments that are not approved by systems. Erskine Attachments LLC. • If an accident occurs, see a doctor • Use adequate safety warning lights and immediately. Any fluid injected into the devices as required by local regulations.
-
Page 5: Decal Information
DECAL INFORMATION Serial Number Location: It is important to refer to the serial number of your attachment when making repairs or ordering parts. Early or later models (identification made by serial number) may use different parts, or it may be necessary to use different procedures in doing a specific operation. Please see below for Serial Plate location. - Page 6 Location: Next to blade bolt access cover Quantity: 1 Safety Decals Locations: The locations of the safety decals are shown. If these decals are missing, damaged, or painted over they must be replaced. Call Erskine Attachments LLC (218-435-4045) for replacement decals.
-
Page 7: Mounting Instructions
MOUNTING INSTRUCTIONS After the initial set-up assembly is completed use the following procedure to mount the attachment to the loader for user operation. Coupler wedges or pins must extend through holes in attachment. Levers must be fully down and locked. Failure to secure wedges or pins can allow the attachment to come off and cause injury or death. -
Page 8: Operating Instructions
OPERATING INSTRUCTIONS Never operate without lift limit chain installed. Never modify the lift limit chain. To reduce the risk of injury or death check that is operating properly when you first use a machine, after service, or anytime someone may have disconnected the lift limit chain. The type of brush being cut and the ground 4. -
Page 9: Routine Maintenance
ROUTINE MAINTENANCE Lower the attachment to rest flat on the ground, shut down the engine, relieve the hydraulic pressure to the attachment, set the park brake, and wait for all motion to stop before leaving the operator’s position to perform service of any kind. It is the operator’s responsibility to make daily inspections of the loader and attachment for damage, loose bolts, fluid leaks, or anything else that could cause a potential service or safety problem. - Page 10 ROUTINE MAINTENANCE Cleaning the Brush Mower To avoid injury or death, before exiting under or servicing under the attachment, be sure to disconnect the auxiliary hydraulic hoses. Raise the lift arms and tilt the attachment down fully. Install an approved lift arm support and stop the engine.
- Page 11 ROUTINE MAINTENANCE Blade Removal and Installation NOTE: Refer to “Daily Inspection” on page 10 of this manual for daily maintenance check. Check that the blades can swing freely. Also check blades, mounting hardware, and blade bar for wear, cracking, or breakage, which can cause excessive vibrations.
- Page 12 ROUTINE MAINTENANCE Reversing Blade Rotation The blades of the mini brush mower are double- sided and can be used in either direction. The motor is bidirectional so use hydraulics in both directions to get even wear. When both edges of the blade are excessively worn, replace both blades.
-
Page 13: Torque Information
TORQUE INFORMATION... -
Page 14: Parts Information
PARTS INFORMATION ITEM PART NUMBER DESCRIPTION STOCK NO. 400000 MOUNT FRAME TORO MINI W/A 37214 NUT HEX 1/2 REV LOCK 13207 BOLT HEX 1/2 X 1-1/4 NC GR 5 13210 BOLT HEX 1/2 X 1-3/4 NC GR 5 33012 WASHER FLAT 1/2”... - Page 15 PARTS INFORMATION...
- Page 16 PARTS INFORMATION ITEM PART NUMBER DESCRIPTION STOCK NO. 331371 NUT HEX 1-1/8-12 SLOTTED GR8 32467 BOLT FLG THRD RLNG 3/8 X 3/4 NC 37214 NUT HEX 1/2 REV LOCK 13207 BOLT HEX 1/2 X 1-1/4 NC GR 5 314113 COVER BLADE HOLE PAINTED 33012 WASHER FLAT 1/2”...
- Page 17 PARTS INFORMATION ITEM PART NUMBER DESCRIPTION STOCK NO 37214 NUT HEX 1/2 REV LOCK 15311 BOLT HEX 5/8 X 2 NC GR 8 YZ 0167012 NUT FLG TOP-LOCK 5/8 NC GR 8 YZ DECK DIRECT DRIVE W/A 401832 CARRIER BEARING MDH-40 SAE B 401833 MOTOR 4.0 2K SAE B 14T 2RELIEF 401819...
-
Page 18: General Specs
560 pounds Cutting Diameter 43.75” 51.75” Cutter Capacity Brush Material up to 2” diameter Brush Material up to 2” diameter Overall Height 22.5” 22.5” Overall Length 62” w/mount plate 70” w/mount plate Overall Width 48" 56" 61.225 69.225 48.000 56.000... -
Page 19: Warranty
Erskine Attachments, LLC to improve its products whenever it is possible and practical to do so. Erskine Attachments, LLC reserves the right to make changes and or add improvements at any time without incurring any obligation to make such changes or add such improvements to products previously sold. - Page 20 MINI BRUSH MOWER DIRECT Manual P/N 401845 Rev B 1/17/2024 Erskine Attachments LLC Printed in U.S.A...
