CORNING 003-439 Quick Start Manual

Wall Mount Kit
P/N 003-439
Issue 4
related literature | Search www.corning.com/opcomm. Click on "Resources."
1. General
This instruction describes the installation of the Wall Mount Kit . The kit provides six units (10.5 inches) of rack
mount space in a wall mounted chassis.
2. Contents
• Wall mount chassis (1)
• #10-32 screws (24)
3. Installation
Step 1: Make sure the wall to which you will mount the chassis is solid. If necessary, install a 1/4-inch plywood
backing for reinforcement.
Step 2: Hold the chassis against the wall where it will be mounted and mark the locations for the mounting
screws on the wall. There should be at least three inches of free wall space on either side of the chassis to
allow the hinged panels room to swing out.
Step 3: Remove the chassis from the wall and install mounting screws (not provided) in the marked locations,
leaving 1/8-inch space between the wall and the screwhead.
Step 4: Lower the chassis onto the mounting screws and tighten the screws.
Step 5: Equipment may now be mounted in the chassis using the #10-32 screws provided.

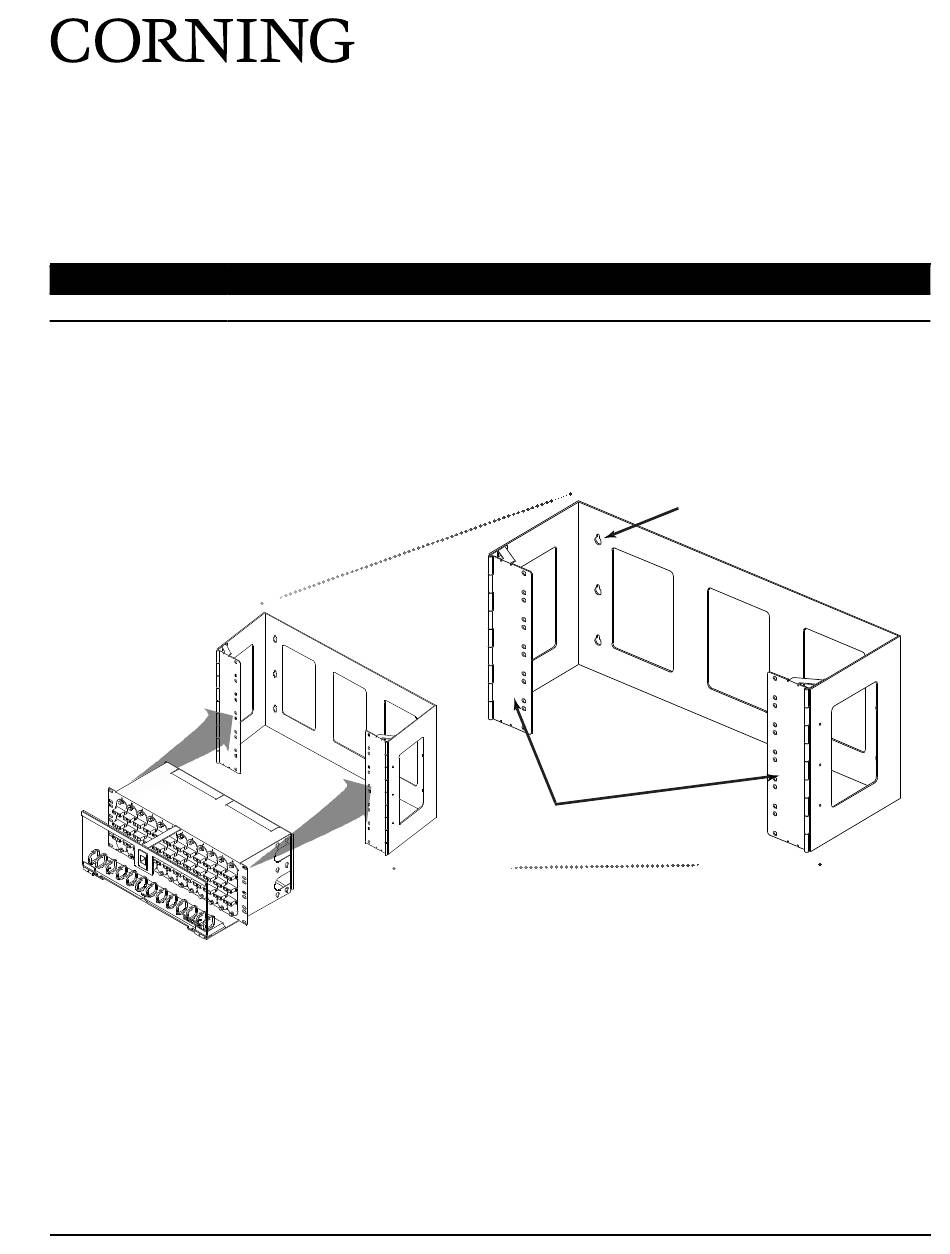

Hinged Equipment Supports
Standard Recommended Procedure 003-439 | Issue 4 | July 2016 | Page 1 of 2
Mounting Holes
