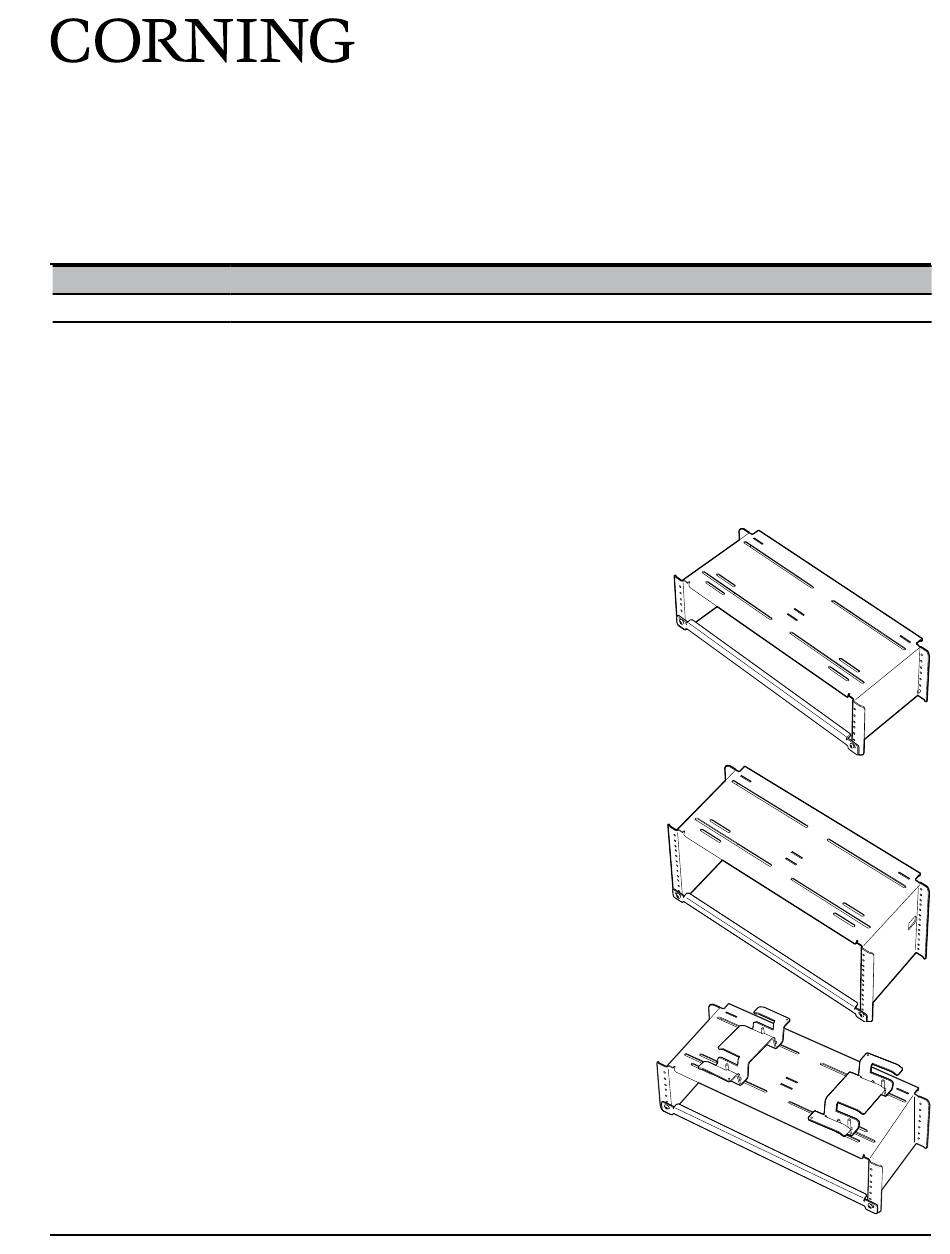

EDGE
Rackless Mounting Kits
™
P/N 003-809
Issue 7
related literature | Search www.corning.com/opcomm. Click on "Resources."
003-794
1.
General
This document describes installation of the EDGE™ housings onto an overhead wire tray using mounting kit EDGE-
BKT-WT-2RU and EDGE-BKT-WT-4RU respectively or into a ladder rack using mounting kit EDGE-BKT-LR-2RU or
EDGE-BKT-LR-4RU.
2.
Carton Contents
Use the part numbers below to determine the carton contents for your installation.
2.1
Wire Tray Mounting Kit 2U (EDGE-BKT-WT-2RU)
• (1) Bottom plate and (2) support bars preinstalled
• Hardware kit containing:
• (2) Omega bracket, horizontal position
• (2) Omega bracket, vertical position
• (8) 10-32 x .5 stainless-steel screw
• (8) Split lock stainless-steel washer
• (4) 4-40 x .125 stainless-steel screw
2.2
Wire Tray Mounting Kit 4U (EDGE-BKT-WT-4RU)
• (1) Bottom plate and (2) support bars preinstalled
• Hardware kit containing:
• (2) Omega bracket, horizontal position
• (2) Omega bracket, vertical position
• (8) 10-32 x .5 stainless-steel screw
• (8) Split lock stainless-steel washer
2.3
Ladder Rack Mounting Kit (EDGE-BKT-LR-2RU)
• (1) Bottom plate / (2) omega brackets and (2) support
bars preinstalled
EDGE
Solution
™
TPA-5829
TPA-5830
TPA-5831
Standard Recommended Procedure 003-809 | Issue 7 | May 2017 | Page 1 of 6
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CORNING EDGE EDGE-BKT-WT-2RU
Summary of Contents for CORNING EDGE EDGE-BKT-WT-2RU
- Page 1 EDGE Rackless Mounting Kits ™ P/N 003-809 Issue 7 related literature | Search www.corning.com/opcomm. Click on “Resources.” 003-794 EDGE Solution ™ General This document describes installation of the EDGE™ housings onto an overhead wire tray using mounting kit EDGE- BKT-WT-2RU and EDGE-BKT-WT-4RU respectively or into a ladder rack using mounting kit EDGE-BKT-LR-2RU or EDGE-BKT-LR-4RU.
- Page 2 Ladder Rack Mounting Kit 4U (EDGE-BKT-LR-4RU) • (1) Bottom plate / (2) omega brackets and (2) support bars preinstalled Tools and Materials Required • Phillips screwdriver TPA-5832 Kit Preparation Before installing the kit into the wire tray or ladder rack, determine the number and size of the housings to be installed into the kit.
- Page 3 Rackless Wire Tray Mounting Kit 2U or 4U X Axis Z Axis bracket bracket X Axis Z Axis TPA-5833 Figure 2 NOTE: This installation requires two people. Step 1: The first person places the mini-frame under the wire tray. Step 2: The second person aligns the X axis and Z axis brackets over the wire tray in line with the slots in the mini-frame (Figure 2).
- Page 4 NOTE: Calculate the Z dimension carefully. Once the kit is installed, any adjustment needed along the Z axis will require that the housing be removed. TPA-5834 Figure 3 Step 6: Once the kit is secured in position, install the EDGE™ housing, as applicable, or any other device that has the ability to be installed into a 19-in rack space.
- Page 5 Step 3: Adjust the kit location in the Z direction (forwards or backwards) so the housing will align with the front of the cabinet below, if present. Consider the 4.5-in frontal projection in your calculations. Tighten the screws on the underside of the mini-frame. NOTE: Calculate these dimensions carefully.
- Page 6 A complete listing of the trademarks of Corning Optical Communications is available at www.corning.com/opcomm/trademarks. All other trademarks are the properties of their respective owners. Corning Optical Communications is ISO 9001 certified. © 2009, 2017 Corning Optical Communications. All rights reserved.
