- Page 1 4 Burner Gas Grill ASSEMBLY IN STRUC TIONS Model GAS1456BSO...
- Page 2 READ ALL SAFETY WARNINGS & ASSEMBLY INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING OR OPERATING YOUR GRILL. WE RECOMMEND TWO PEOPLE WORK TOGETHER WHEN AS SEM BLING THIS UNIT. The following tools are required to assemble this Cuisinart 4 Burner Gas Grill: • Phillips Screwdriver PARTS LIST:...
- Page 4 Step 1 • Remove two Remove screws and door two screws spacers from each door handle • Attach door handles doors in door frame using four screws. Loosen three Step 2 screws • Loosen three screws on door frame • Attach right side panel to door...
- Page 5 Loosen three Step 3 screws • Loosen three screws on door frame • Attach left side panel to door frame over keyholes and tighten screws. • Remove one screw and set aside. Remove one screw Step 4 • Loosen four screws on cart side panels.
- Page 6 Step 5 Remove 2 screws • Remove two screws from cart base Step 6 • Attach cart base to cart using two pre-attached screws and two screws removed from Steps 2 and • Tighten all screws on cart base...
- Page 7 Step 7 • Lock casters • Attach casters to legs Unlocked Locked Step 8 • Attach back panel using two screws removed from Step • Tighten the four screws from Step 4.
- Page 8 Step 9 • Attach tank block to cart using two pre- attached screws. Step 10 • Attach door stopper cart base using two pre-attached screws.
- Page 9 Left Side Step 11 Remove LEFT SIDE Brackets • Loosen six screws. Right Side • Remove protective bracket. • Remove 1 screw. RIGHT SIDE • Loosen six screws. Loosen screw • Remove protective bracket. Remove • Remove 1 screw. two screws Loosen screw Step 12 •...
- Page 10 Step 13 • Loosen screws and rotate brackets upwards. • Tighten screws. • Repeat on both sides of grill body. Step 14 LEFT SIDE RIGHT SIDE TABLE TABLE • Remove two screws and washers and set aside. Remove screws washers...
- Page 11 Step 15 Loosen four screws • Loosen 4 screws. • Attach left and right front control panels over keyholes. Align • Tighten screws. edges Step 16 • Attach left side table over keyholes. • Do not tighten screws at this point in time.
- Page 12 Step 17 • Install screw. (screw was removed in Step • Do not tighten screw at this time. Install screw Step 18 • Install screw and washer (screw and washer were removed in Step 14). Do not tighten screw at this time. •...
- Page 13 Step 19 • Attach right side table over keyholes. • Do not tighten screws at this time. Step 20 • Install screw. (screw was removed in Step 11) • Do not tighten screw at this time. Install screw...
- Page 14 Step 21 • Install screw and washer (screw and washer were removed in Step 14). Do not tighten screw at this time. • Make sure panels are aligned. • Tighten 6 screws from Steps 19 through 21. Align Panels Step 22 •...
- Page 15 Step 23 KEY HOLES • Install side burner knob SIDE BURNER BEZEL KNOB SIDE BURNER VALVE STEM Step 24 • Attach wire clip to side burner. SIDE BURNER SIDE BURNER VALVE WIRE CLIP...
- Page 16 Step 25 • Attach ignitor wire to electrode. ELECTRODE IGNITER WIRE Step 26 • Install side burner grate SIDE BURNER GRATE...
- Page 17 Remove Step 27 two screws • Remove two screws from grease tray handle. • Attach grease tray hadle to outside using two screws. • Tighten screws. Step 28 GREASE TRAY • Install grease tray and grease through back of grill. GREASE CUP...
- Page 18 WARMING RACK Step 29 • Install heat tents COOKING GRATES , cooking grates and warming rack HEAT TENTS...

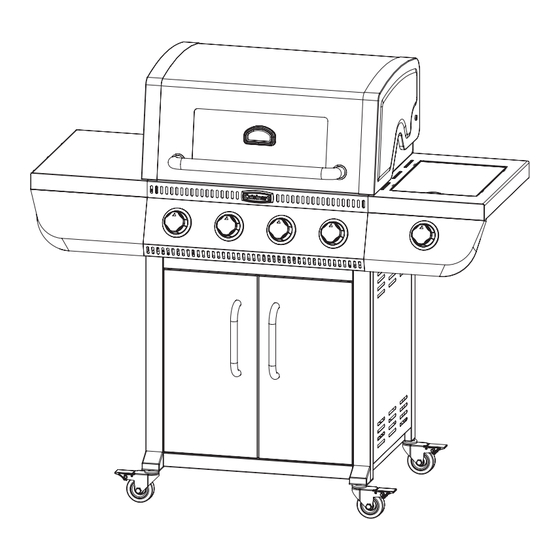

- Page 19 Model GAS1456BSO Assembled ©2021 Fair Game Group LLC OM1456BSO Assembly Instructions for Model Carrollton, Texas 75006 U.S.A. 0821, 0923 GAS1456BSO...
