EV400 SERIES – User Manual
Operation

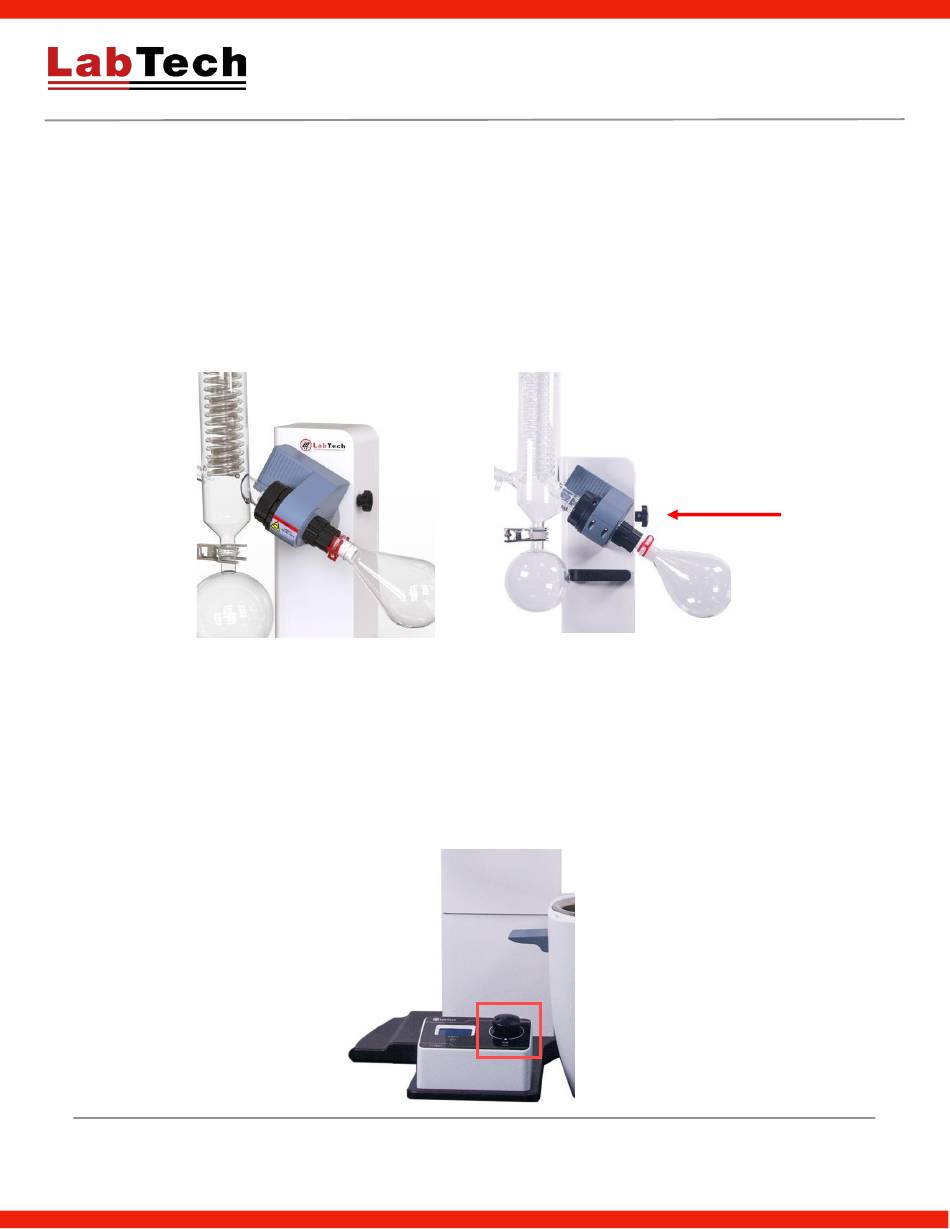

HOW TO ADJUST THE TILT ANGLE OF THE ROTATION HEAD
Loosen the tilt regulation knob and adjust the tilt angle of the motor to the appropriate degree then lock the
knob. Common angle is 30°.
NOTE: This function is only available for the vertical type of condenser; do not adjust the rotation head when
the diagonal condenser is in use.
Tilt Regulation
HOW TO OPERATE THE MAIN UNIT OF THE OF EV400H
Rotation speed setting of EV400H
Set the rotation speed via the knob as shown in the picture below.
Rotate it clockwise to increase speed, counter clockwise to decrease.
The LCD screen shows real time the rotation speed.
Set the rotation speed to minimum, switch on the instrument, then increase the speed; 100rpm is commonly set.
