Email: support@tomzontoys.com
Web: www.tomzontoys.com
FB: www.facebook.com/tomzonofficial
P5G
2K / 4K
User Manual
support.de@tomzontoys.com (DE)
support.fr@tomzontoys.com (FR)
support.uk@tomzontoys.com (UK)
DANGER
Only suitable
for age 14+
C020003V04.23.02
support.it@tomzontoys.com (IT)
support.es@tomzontoys.com (ES)
support.jp@tomzontoys.com (JP)
Advertisement
Table of Contents
Related Manuals for TOMZON P5G
Summary of Contents for TOMZON P5G
- Page 1 DANGER Only suitable for age 14+ C020003V04.23.02 2K / 4K User Manual support.de@tomzontoys.com (DE) support.it@tomzontoys.com (IT) Email: support@tomzontoys.com support.fr@tomzontoys.com (FR) support.es@tomzontoys.com (ES) Web: www.tomzontoys.com support.uk@tomzontoys.com (UK) support.jp@tomzontoys.com (JP) FB: www.facebook.com/tomzonofficial...
-
Page 2: Table Of Contents
Contents Fly Safe ···························································································· Accessories List ············································································ Drone Overview ·············································································· Remote Control Diagram ······························································ Charging the Aircraft's Battery ····················································· Operation Method ·········································································· About Aircraft ················································································ FlyCam App ···················································································· Malfunction Sloving Guideline ····················································· Specification ··················································································... -
Page 3: Fly Safe
Fly Safe Fly in open areas Sunny and windless Maintain line of sight Fly Under 120m Avoid leaping or getting near to the crowds, trees, high voltage power lines, buildings, airports or territorial waters, as well as high-intensity power line base stations as it may affect the drone’s compass. -

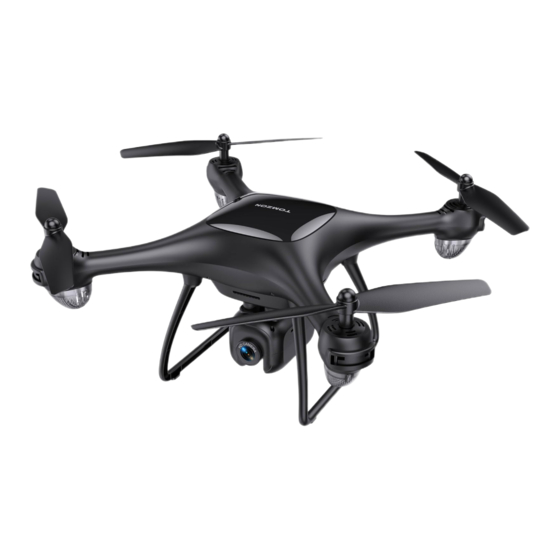

Page 4: Drone Overview
Drone Overview Power switch Blade A Blade B Body Motor Guard circle socket Indicator light WIFI cam Replace the blades 1. Replace with a new blade at the corresponding position. Blade A should be installed on position A, while blade B should be installed on position B. -
Page 5: Remote Control Diagram
Remote Control Diagram Press the buttons simultaneously for Antenna one-button emergency One Key Hovering/ One Key Returen GPS mode / Attitude mode Ascent and descend / Forward / Backward / Turn left / right Slide left / Slide right Mode 1 / Mode 2 On / Off Level calibration Long press one key to... -
Page 6: Charging The Aircraft's Battery
Charging the Aircraft's Battery Press the battery clip and pull the battery out then the battery can be taken out from the aircraft. Lithium battery charging instructions 1. Taking out the USB charging cable, connecting the battery port to the charging head, then plug the USB terminal into the USB port on the computer (or USB power adapter) to charge the battery. - Page 7 One key to take off / Long press 1S as shown in the picture to enter one key to land one key to take off/one key to land function. When flying in GPS mode, short press this button to enter the one key hovering function, One Key Hovering/ the aircraft will exit the current flight state and One Key Returen...
-
Page 8: About Aircraft
About Aircraft Flight Modes P5G 2K / 4K adopts a new generation of flight control, which supports the following two flight modes. GPS mode GPS module can realize precise hovering, pointing flight and other intelligent flight modes. In the GPS mode, when the GPS signal is strong, GPS can be used for precise positioning;... -
Page 9: Flycam App
For smart phone with iOS 9.0+: Search and download “FlyCam” from App Store. P5G 2K / 4K operation guide (GPS version) 1. Long press the power switch of the drone for 1S to start the drone, and confirm that the camera's WIFI signal light (red light) enters the slow flashing state, indicating that the WIFI module is ready. - Page 10 Enter the wireless settings of the mobile phone, click the WIFI name: Tomzon_DSDR05x_xxxxxx. 2.2 Wifi connection (Android) Enter the mobile phone WLAN settings, click to connect to the aircraft WIFI: Tomzon_DSDR05x_xxxxxx, select in the mobile hotspot Internet network data detection prompt: Keep WLAN Connection. 3.
- Page 11 5. If you need other help, please go to APP-Personal Center-Feedback and contact us. 1. Operation Interface 1. Home 2. Drone status 3. Transmission signal level 4. Drone power 5. Setting 6. Photo / Video switch 7. Photo Taking / Video Recording 8.
-
Page 12: Malfunction Sloving Guideline
There are two remote control modes of this product, mode 1 and mode 2. Mode 1 is the default setting. Malfunction Sloving Guideline Malfunction Cause Treatment 1. The drone enters low voltage 1. Charge the drone protection mode 2. The remote controller’s battery 2. -
Page 13: Specification
Specification Drone Maximum ascending speed: 3m/s Maximum descending speed: 2m/s Maximum horizontal flight speed: 5m/s Working environment temperature: 0 ~ 40°C Working frequency: 2.402 ~ 2.483GHz Hovering precision (vertical): ±0.5m (when GPS works normally) Hovering precision (horizontal): ±1.5m (when GPS works normally) Camera Photo shooting mode: Single photo Lens rotation range: +0°... - Page 14 Name P5G 2K / 4K DSDR05C DSDR05A Model Resolution Manufacturer Shenzhen Deepsea Excellence Technology Co., Ltd. 5th Floor, Building 7, Hongfa High-tech Park, Keji 4th Road, Address Shiyan Street, Baoan District, Shenzhen Battery information Capacity: 1000mAh 7.4V 7.4wh Input: 5V...
Need help?
Do you have a question about the P5G and is the answer not in the manual?
Questions and answers
my Tomzon p5g drone will not receive gps signals,the field is big,my friends Holy Stone has no trouble
Possible reasons your TOMZON P5G drone is not receiving GPS signals while your friend's Holy Stone drone is working fine include:
1. Incorrect Calibration: The drone may not be properly calibrated. You need to perform geomagnetic calibration by rotating the drone horizontally as shown in the app instructions.
2. Poor Signal Environment: GPS signal can be blocked or weakened by tall buildings, trees, or being indoors. Ensure you're flying in an open, sunny, and windless area away from obstacles and interference sources.
3. GPS Module Issue: The GPS module in the drone might be malfunctioning or not connected properly.
4. Software/App Issue: The FlyCam app may not be properly set up or updated, affecting GPS signal detection.
5. Startup Procedure: Make sure the drone is powered on and left stationary for a few minutes in an open area to acquire GPS satellites.
Try recalibrating, moving to a better location, and checking the app and drone setup.
