D15 Mini Drone
Email: support@tomzontoys.com
Web: www.tomzontoys.com
FB: www.facebook.com/tomzonofficial
User Manual
support.de@ tomzontoys.com
support.fr@ tomzontoys.com
support.uk@ tomzontoys.com
DANGER
Only suitable
for age 14+
support.it@ tomzontoys.com
support.es@ tomzontoys.com
support.jp@tomzontoys.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TOMZON D15
Summary of Contents for TOMZON D15
- Page 1 DANGER Only suitable for age 14+ D15 Mini Drone User Manual Email: support@tomzontoys.com support.de@ tomzontoys.com support.it@ tomzontoys.com Web: www.tomzontoys.com support.fr@ tomzontoys.com support.es@ tomzontoys.com support.uk@ tomzontoys.com support.jp@tomzontoys.com FB: www.facebook.com/tomzonofficial...
-
Page 2: Table Of Contents
Contents Package List ....................Safety Precaution ..................Drone LED Indicator Status ..............Trouble Shooting ..........................................Aircraft Profile ....................Remote Control Profile ................Quick Start ...................... Basic Flight ........................................Headless mode ....................3D Flip mode ....................... Fine tuning Intelligent Flight Mode ................ -
Page 3: Package List
Package List RC Drone Remote Control Battery Opener Screwdriver Blades Guard DANGER Only suitable for age 14+ D15 Mini Drone User Manual Email: support@tomzontoys.com support.de@ tomzontoys.com support.it@ tomzontoys.com Web: www.tomzontoys.com support.fr@ tomzontoys.com support.es@ tomzontoys.com FB: www.facebook.com/tomzonofficial support.uk@ tomzontoys.com support.jp@tomzontoys.com Extra Propellers... -
Page 4: Safety Precaution
Safety Precaution 1. In order to ensure the requirements of electromagnetic environment of aviation radio station, it is forbidden to use all kinds of model remote controllers in the area with radius of 5000m and center point of airport runway. During the period when the relevant national departments issue radio control orders, the remote controller of the model shall be stopped according to the requirements. -
Page 5: Trouble Shooting
Trouble Shooting Problem Analysis Solution The indicator of the 1. The remote control 1. Perform frequency drone flashes slowly is not connected to matching operations. the drone and does not respond 2. Recharge the 2. Low battery to the remote control. battery. -
Page 6: App
Download the App Scan the QR code below or search "Tomzon-V" in App Store or Google Play to download the App. For the smartphone with Android 5.0+: Search and download " Tomzon-V " from Google Play. Or scan the QR code below to download. - Page 7 Wi-Fi module is ready. 2.1 Wi-Fi Connection (IOS) Go to the setting, swipe down to find the Tomzon-V APP. Turn on the local network, Wi-Fi and cellular network authorization. Enter the wireless settings of the mobile phone, click the Wi-Fi name: Tomzon_D15_xxxxxx.
- Page 8 2.2 Wi-Fi connection (Android) Enter the mobile phone WLAN settings, click to connect to the aircraft Wi-Fi: Tomzon_D15_xxxxxx, select in the mobile hotspot Internet network data detection prompt: Keep WLAN Connection. 3. After successful connection, click connect and enter the APP flight interface to start the flight experience.
-
Page 9: Aircraft Profile

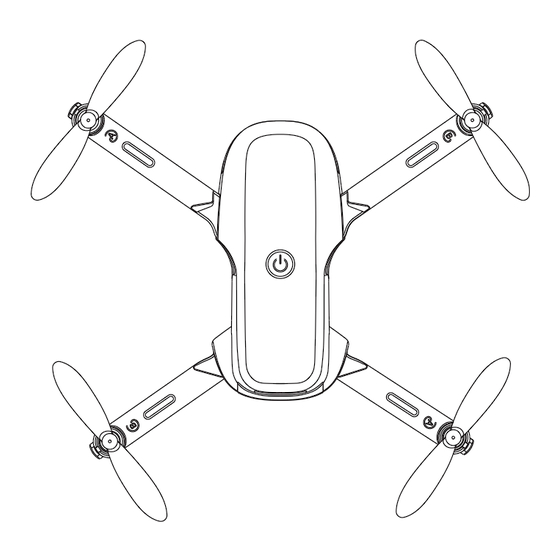

Aircraft Profile Camera Motor Indicator light Propeller The aircraft has two types of blades ("A" and "B"). The logo "A" or "B" is printed on the arm and propeller respectively. When replacing propeller, please match according to the corresponding "A" or "B" logo. Propeller guard Power button (Long press the power button to turn on / off the aircraft.) - Page 10 Install the propeller Opener Install the battery Install the protective guard Charge Charge the battery as shown in the figure. When charging, the red light of USB charger will be on. After charging, the red light of USB charger will be off. Phone Charger Power Bank Car Charger...
-
Page 11: Remote Control Profile
Remote Control Profile Slow / Normal / Fast Photo / Video (Short press to switch the flying speed) (Short press to take a photo. Long press for 1 second to start/stop recording) Left control stick Take off / Land Trimming (Short press to take off / Land, Long Power button press for 3 seconds to trigger emergency... -
Page 12: Quick Start
Install the remote control battery Use the screwdriver to press down to the position shown in the figure, and open the battery cover to install the battery (not included). Quick Start Frequency matching 1. Turn on the drone and place it on a horizontal surface. 2. - Page 13 Take off Method 1: Short press to take off. Method 2: 1. Push the two control sticks at at the same time time as shown in the figure. 2. Push the left stick up slowly and the drone will take off. Landing Method 1: Short press to land, and the drone will land slowly.
-
Page 14: Basic Flight
Emergency Stop In case of emergency, long press the button for 3 seconds, the motor of the drone will stop and fall. Only stop motors during the flight when emergent situation happens, or the risk of drone damage will increase. Basic Flight Note: The following example use the Mode 1. -
Page 15: Headless Mode
Headless mode Headless mode means that when the aircraft is flying, the movement direction of the aircraft is fixed, which does not change with the orientation of the aircraft, as shown in the figure. Front Front Back Back Front Front Back Back Direction setting:... -
Page 16: 3D Flip Mode
3D Flip mode Step 1: Press the "3D Roll" button to start the roll mode, at this time the remote control keeps beeping. Step 2: Push the right stick forward, and the drone will roll forward 360° immediately. Tip: If you want to roll in other directions, please push the right stick to other directions. -
Page 17: Intelligent Flight Mode
Intelligent Flight Mode Rotation mode Short press to start / Pause rotation mode. Surround mode Long press for 1 second to start / Pause surround mode. Tip: 1. To ensure safety, please install the protective cover first and use this function in an open environment. - Page 18 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 19 D15 Mini Drone Name Model Manufacturer Shenzhen Deepsea Excellence Technology Co., Ltd. 5th Floor, Building 7, Hongfa High-tech Park, Keji 4th Road, Address Shiyan Street, Baoan District, Shenzhen Battery information Lipo 580mAh 3.7V 2.146Wh Charging voltage / current FCC ID...
