Broncolor scope 050 Operating Instructions

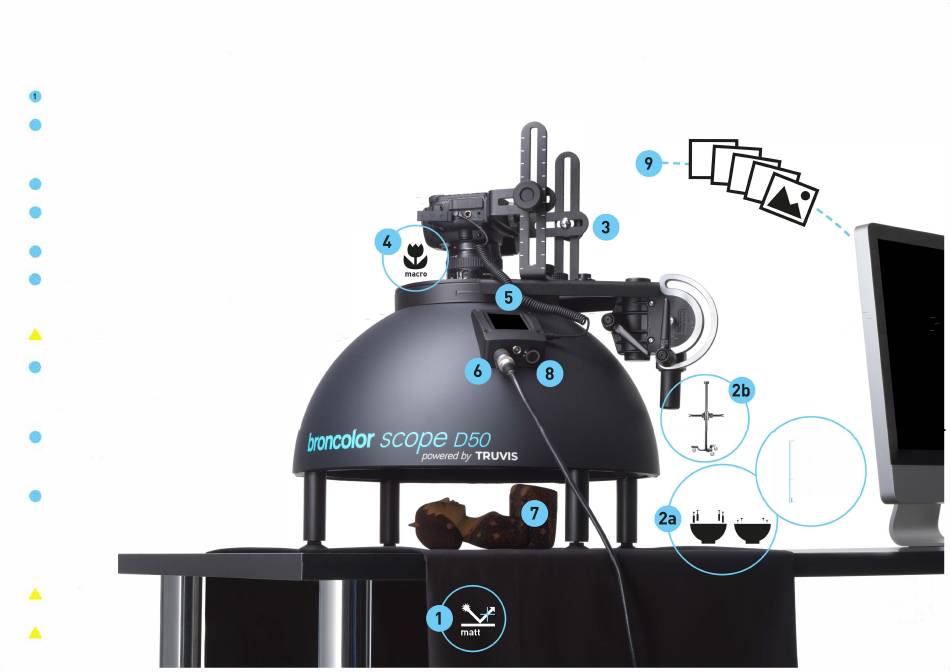

Setup in 9 steps
Place a uniform and non-reflecting underlay, e.g. on a table.
2 You can either position the Scope D50 on a Level surface (2a) or you can mount it on a sturdy stand
(2b). In the former case, you can either screw on the 4 adjusting feet alone, or combine them with
the 4 supporting feet. Place the Scope D50 upside down on a Level surface in order to mount the
feet.
3 Now fix the camera mount to the Scope D50's top by means of the two integrated screws.
Attach your camera to the camera mount. Please use a macro lens. The lens must not be inserted
4
deeper than 7 cm (2.76") in order to prevent shadowing on the object.
5 Connect the camera and the Scope D50 with the spiral sync cable.
6 Connect Scope D50 with the mains power supply using the provided mains adapter
and mains cable (start with the plug connection on Scope D50's control panel).
The display lights up and the system is being started.
/.\ The power plug serves to disconnect Scope 050 from the mains; therefore, it should
Ln be easily accessible at all times.
7 Place the object you wish to capture underneath the Scope D50 and centre it.
ldeally, the surface of the object should be placed flush with the lower
edge of Scope D50. You can adjust the device's height by means of
the 4 screwable supporting feet, or by adjusting the stand's
height, respectively.
Always press the round key at the bottom of the operating panel
8
before unplugging the cable in order to switch off the
operating system. Please wait until the display turns
completely black (approx. 7 seconds), then unplug.
9 Please follow the next steps as described in this document (please
see overleaf) in order to create the first capture and transfer the
images to the computer.
1.\ Do not reach into the Scope,
Ln the LED could be damaged.
/.\ Switch oft the LED prior to
Ln placing/positioning the object.
broncolor
- - - -
scope
050
Operating instructions
I I
max.15 cm (5.90")
(0.59")
min. 1.5 cm
a
��
