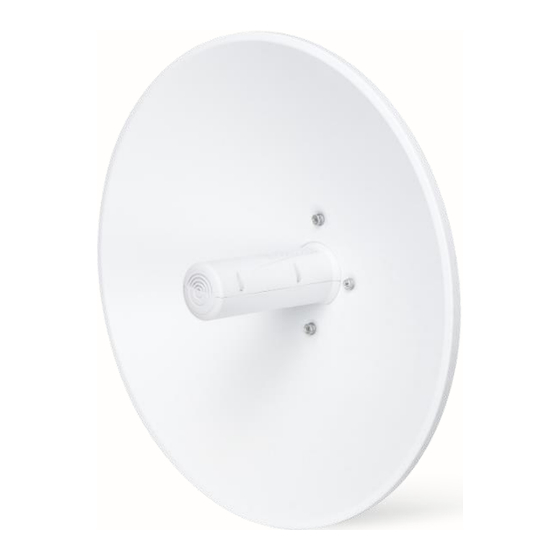

- Page 1 5GHz 802.11ac 900Mbps TDMA Outdoor Long Range Wireless CPE WBS-900AC Quick Installation Guide...
-
Page 2: Table Of Contents
Table of Contents 1. Package Contents ..................3 2. Physical Introduction ..................4 3. Hardware Installation ..................5 4. Wired Network Configuration (Windows) ............7 5. Entering into the Web Management ..............8 6. Further Information ..................9... -
Page 3: Package Contents
1. Package Contents Thank you for choosing PLANET TDMA Outdoor Long Range Wireless CPE. Before installing, please verify the contents inside the package box. The "WBS-900AC" mentioned here is the model name of the device. WBS-900AC x1 Parabolic Reflector x 1 QR Code Sheet Let’s get started with your PLANET product... -
Page 4: Physical Introduction
2. Physical Introduction Hardware Description DC power (2.1 x 5.5mm) Reset button... -
Page 5: Hardware Installation
3. Hardware Installation Step 1: Installing Antenna Set and AP Stand Proper installation requires positioning the exhaust vent facing down- wards. - Page 6 Step 2: Push the latch on the bottom of the Outdoor Wireless CPE to remove the sliding cover. Step 3: Plug the RJ45 Ethernet cable into the PoE Port of the Outdoor Wireless CPE. Then, slide back the cover to finish the installation.
-
Page 7: Wired Network Configuration (Windows)
4. Wired Network Configuration (Windows) A computer with wired Ethernet connection is required for the first-time configuration of the Wireless AP. 1. Click the “Start” button located at the lower-left corner of your computer. 2. Select “Control Panel-> Network and Sharing Center”. 3. Click “Change adapter settings”. 4. Double-click “Local Area Connection”. 5. -
Page 8: Entering Into The Web Management
5. Entering into the Web Management Default IP Address: 192.168.1.253 Default Username: admin Default Password: ap + the last 6 characters of the MAC ID in lowercase Default SSID: PLANET_5G Step 1: Launch the Web browser and enter the default Master IP address https://192.168.1.253. -
Page 9: Further Information
For further configurations, please refer to the user manual, which can be downloaded from the website. WBS-900AC https://www.planet.com.tw/en/support/downloads?&method=keyword&keyword =WBS-900&view=3#list Copyright © PLANET Technology Corp. 2024. Contents are subject to revision without prior notice. PLANET is a registered trademark of PLANET Technology Corp. All other trademarks belong to their respective owners.
