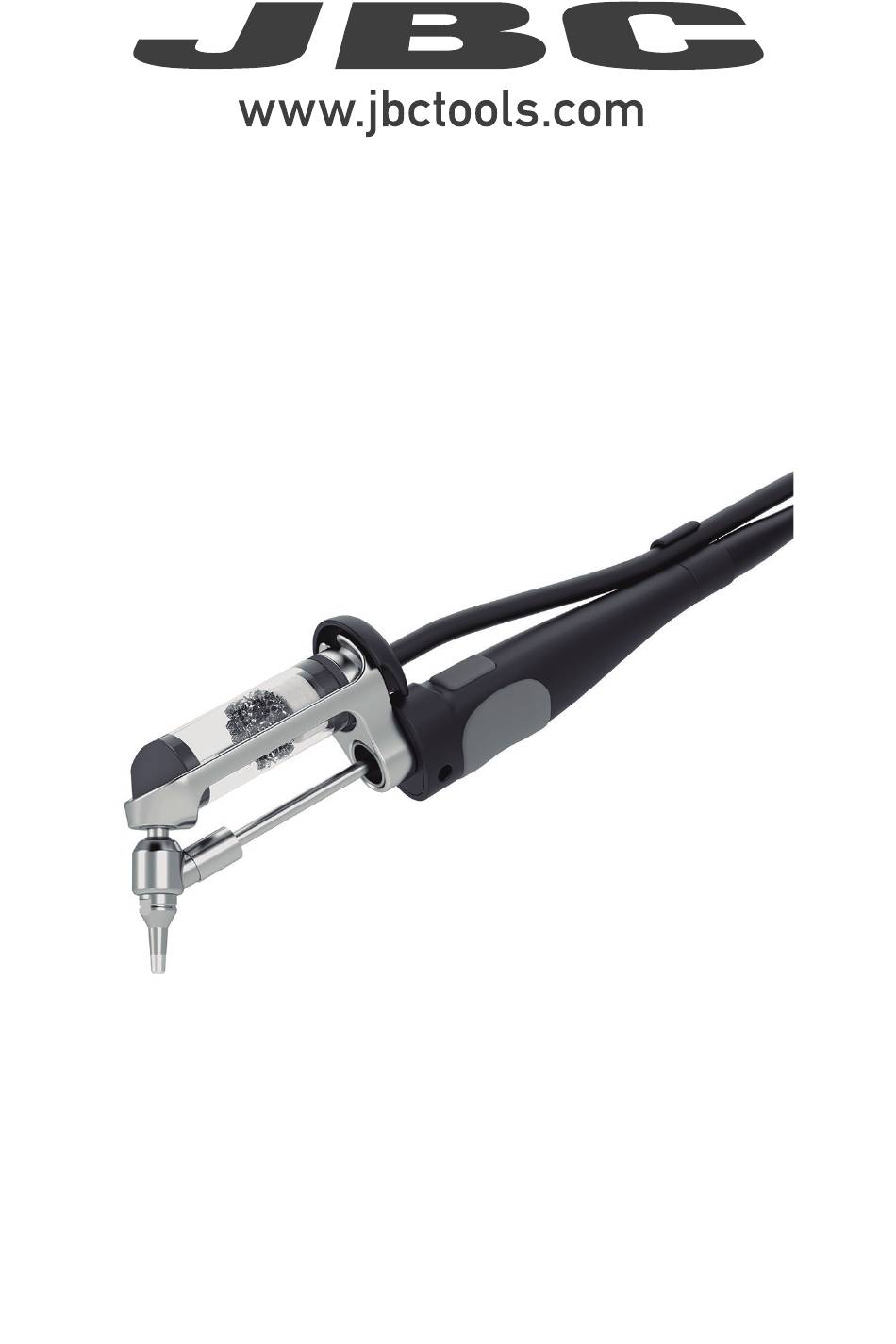

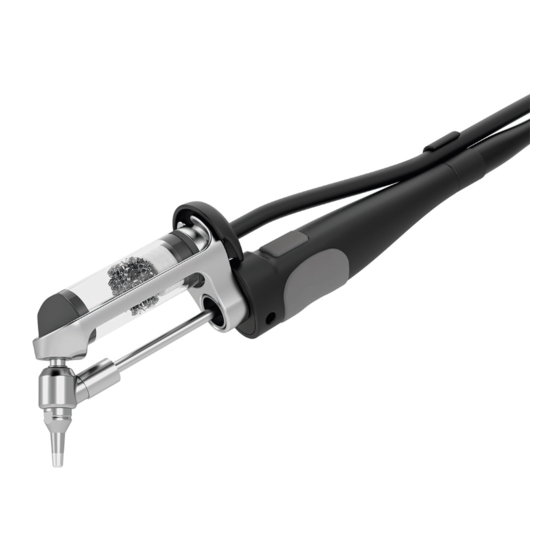

  • Page 1 INSTRUCTION MANUAL DT530 Angled Desoldering Iron...

  • Page 2: Packing List

    This manual corresponds to the following reference: DT530-A Packing List The following items are included: Angled Desoldering Iron ......1 unit Manual ..........1 unit Ref. 0032496 Box with Accessories ......1 box Ref. DT100 It includes:...
  • Page 3 Ref. DT20 80 mm 60 mm 50 mm Spanner ......1 unit Wool Filter Metal Filter Ref. DT50 for DT530 ......1 set for DT530 ......1 set 40 mm Ref. DT10 Ref. DT11 (contains 10 filters) (contains 10 filters) Heat-Resistant Cleaning Brush .....
  • Page 4 It must be connected to an electric (MSE*) or pneumatic desoldering module (MVE*) and to the tool stand*. The suction power from MSE or MVE pumps ensure optimal work quality. To control and operate DT530 and the desoldering module, DDE or DME control unit is needed. DT11...

  • Page 5: Connection Example

    200 mm Connection Example DT530 130 mm 130 mm Angled Desoldering Iron Note: In order to operate with DT530, control units must be upgraded to the following software versions or higher: 100 mm DDE* 2-Tool Control Unit min. firmware version** 8886903...
  • Page 6 Right-handed Use / Left-handed Use DT530 is designed so that the solder-collector group can be positioned on the left or right side of the push button. This allows for right-handed and left-handed users to find their most comfortable work position.
  • Page 7 para manuales - color gris 200 mm Disassembling the Solder-Collector Group 130 mm 130 mm Be careful when handling the solder collector and the other spare parts they can be hot. Let them cool down first. 100 mm Grasp here To disassemble the solder-collector group, place the desoldering iron in horizontal position 80 mm...
  • Page 8 Disassembling the Heating Element (to change position for right-haded or left-handed use) For this operation, turn off the station or disconnect the tool and wait until the equipment has cooled down to room temperature. Heating Element Spanner The solder collector group must be previously If the heating element has a tip on, remove it detached.

  • Page 9: Operation

    para manuales - color gris 200 mm Reassembling the Heating Element - continuation 130 mm 130 mm Once the heating element is in the desired Metal Bushing of the Handle position make sure that it is pushed all the way in. 100 mm Note: The metal bushing of the handle must be aligned with the...
  • Page 10 Brass Wool CL6210 Very effective cleaning method. Leaves a small layer of solder on the tip preventing oxidation between cleaning and rewetting. If the tip is very dirty, JBC recommends cleaning it first with the wiper to remove excess solder.
  • Page 11 Placing in Tip Holder Inserting At least 250 ºC Spanner Tip Storage Use JBC’s spanner to unscrew To remove the tip from the Grab the new tip with the the tip. The tip will remain spanner, simply place the spanner. Fit it into the heating...
  • Page 12 Compatible Tips DT530 uses D530 Tips. Different sizes are available for through-hole desoldering and for pad cleaning. Find the model that best suits your soldering needs at: www.jbctools.com Through-Hole Pad Cleaning Desoldering Spare Part Assembly Sequence Spare parts of the solder-collector group can be replaced when they are worn.
  • Page 13 para manuales - color gris 200 mm Heat Resistant Gripper 130 mm 130 mm Heat-Resistant Gripper Disassemble all spare parts from the glass solder-collector (the sequence is shown on the previous page). 100 mm It is recommended to use the heat-resistant gripper to handle the solder collector, it could be still hot.

  • Page 14: Maintenance

    - The wool, filter and gaskets of the solder-collector should be periodically checked and replaced when worn or clogged with solder residues. - Replace any defective or damaged pieces. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service.
  • Page 15 para manuales - color gris 200 mm Duct Maintenance 130 mm 130 mm To avoid clogging or pressure loss, carry out regular maintenance on the tip, solder-collectors, gaskets and filters. Clean with the cleaning Tip Cleaning rod also from the top. 100 mm 80 mm 60 mm...

  • Page 16: Specifications

    9.65 x 7.28 x 1.77 in / 0.91 lb Complies with CE standards. ESD safe. Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.
