jbc DSS-D User Manual

Premium micro desoldering station
Hide thumbs Also See for DSS-D:
Table of Contents

Advertisement

Quick Links

Download this manual
www.jbctools.com
English
Premium
Micro Desoldering station
Ref. DSS-D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSS-D and is the answer not in the manual?

Questions and answers

Related Manuals for jbc DSS-D

Summary of Contents for jbc DSS-D

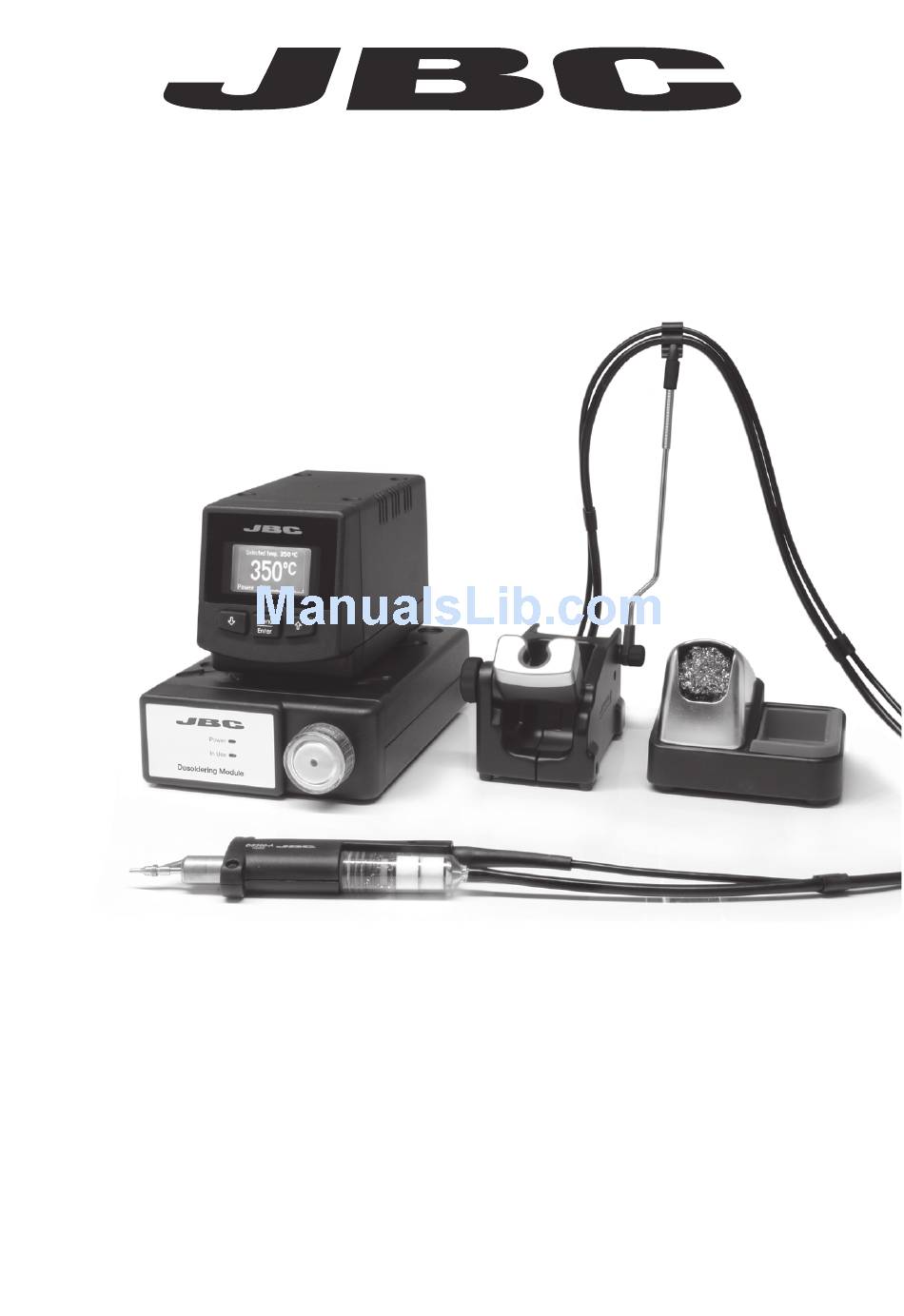

  • Page 1 English Premium Micro Desoldering station Ref. DSS-D...

  • Page 2: Packing List

    Packing List The following items should be included: DI Control Unit ....1 unit Electric Desoldering Stand ....... 1 unit Ref. DI-1D (120V) Module......1 unit Ref. DS-SD DI-2D (230V) Ref. MS-A DI-9D (100V) Micro Tip Cleaning Desoldering Iron.... 1 unit Stand .......
  • Page 3 Cable flange....2 units Filter Box ......1 unit Cotton Filter ....10 units Ref. 0010154 Ref. 0005966 Ref. 0781046 It contains 50 filters Suction Filter ..........1 unit Manual ............1 unit Ref. 0821830 w w w.jbctools.com Premium Micro Desoldering station Ref. DSS-D...
  • Page 4 Features DI Control Unit Ref. DI-1D (120V) DI-2D (230V) DI-9D (100V) Support Cable Equipotential connection connection Ref. 0011283 Module Cable Main switch Power Socket connector Ref. 0010207 Fuse Micro Desoldering Iron Ref. DS360-A Stand Ref. DS-SD Electric Desoldering Module Ref. MS-A Suction Filter Ref.

  • Page 5: Usb Connector

    Update the station software via USB connection: Cable USB AB JBC Manager www.jbctools.com/manager.html Manage and monitor as many stations as your Windows PC supports by using the JBC Manager. You can export data to another PCs. any JBC station Cable...

  • Page 6: Operation

    Operation The JBC Exclusive Heating System This revolutionary technology is able to recover tip temperature extremely quickly. This allows the user to work at a lower temperature. As a result, tip life increases x5 times. 1. Work 2. Sleep 3. Hibernation...

  • Page 7: Process Control

    w w w.jbctools.com Process Control Work Screen Displays a specific fixed temp. Fixed temp. 3 5 0 Shown when you have Levels ºC 2 7 0 3 5 0 4 0 0 selected temp. levels. Selected temp. 3 5 0 This screen provides useful information of tool status in real time.

  • Page 8: Stand Assembly

    Stand assembly Cable collector Keeps working area free of cable. Adjustable tool holder Adjustable Suits your work position. cable collector...
  • Page 9 w w w.jbctools.com Tip Cleaning stand Improve thermal transfer by cleaning the tip after each solder joint. Brass wool Sponge Ref. CL6210 Ref. S0354 Very effective cleaning The least harmful cleaning method. It leaves a small layer method. Keep the sponge damp of solder on the tip to prevent with destilled water when working oxidation between cleaning...

  • Page 10: Changing The Tip

    Changing the Tip 1. Remove the tip by using a flat-nosed pliers. 2. Insert the new tip and follow the same steps Twist the tip and pull. conversely. Important: Change tips only when the tool is hot, so that Do not hold the tip on the spring clamp. any solder left inside is in molten state.

  • Page 11: Changing The Heating Element

    w w w.jbctools.com Changing the Heating Element 1. Disconnect the tool. Pull off the filter and the solder collector. 2. Undo the fixing screw indicated in the picture and remove the heating element. 3. Insert the new heating element following the same steps conversely. Heating element Ref.

  • Page 12: Maintenance

    Press the new fuse into the holder and If necessary use a tool to lever it off. replace it in the station. - Replace any defective or damaged pieces. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service.
  • Page 13 w w w.jbctools.com Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the equipment for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases. Be sure that it is properly grounded before use.

  • Page 14: Exploded View

    Exploded View...
  • Page 15 w w w.jbctools.com...

  • Page 16: Specifications

    - Flow rate: 9 SLPM Complies with CE standards ESD protected housing “skin effect” Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear due to use or mis-use.
