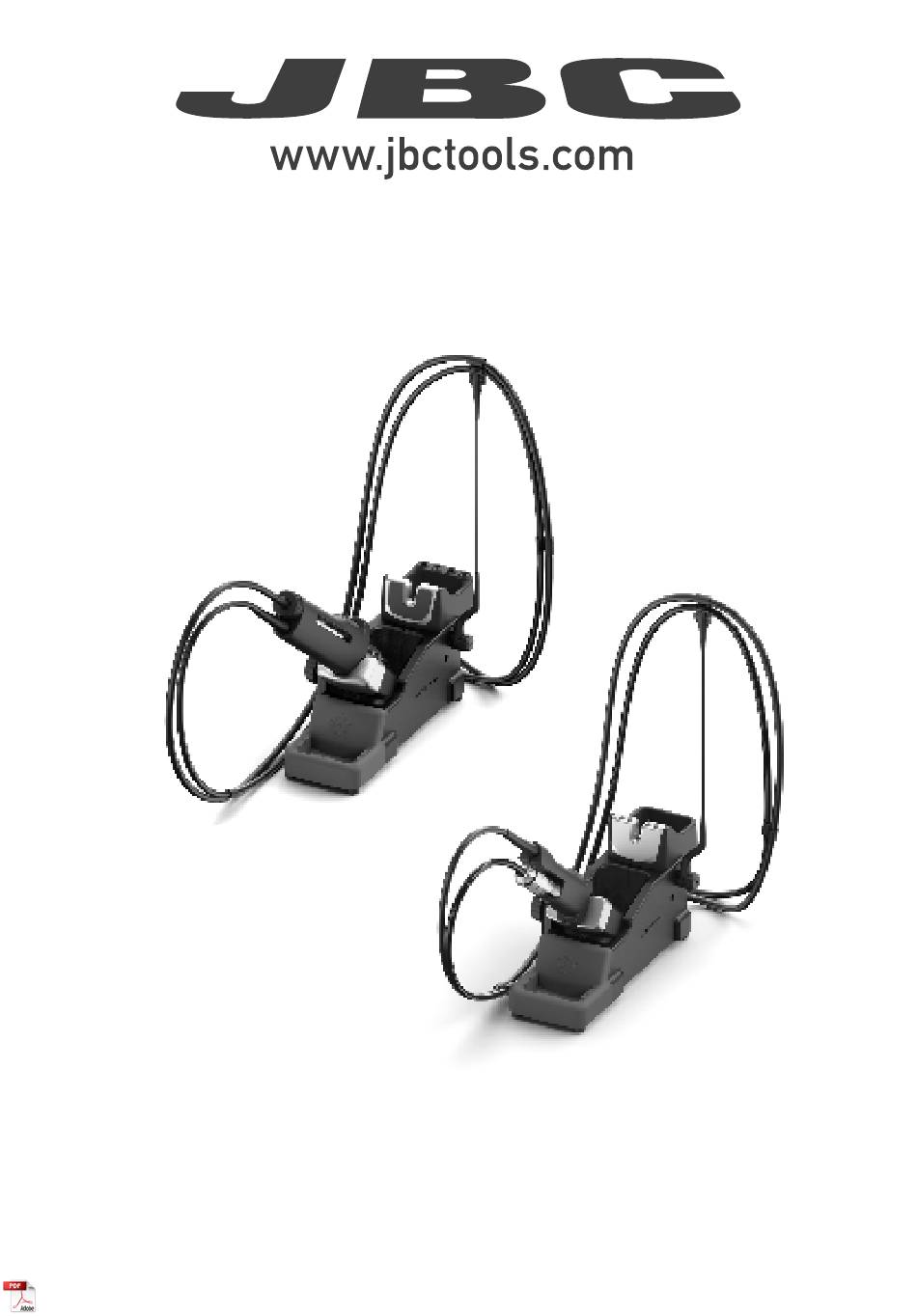

- Page 1 INSTRUCTION MANUAL DSS / DRS Stand for Desoldering Iron...
-
Page 2: Packing List
This manual corresponds to the following references: DS-SF (for DS360) DR-SF (for DR560) Packing List Box includes one stand according to purchased reference. Stand for Stand for DS360 Micro Desoldering Iron .... 1unit DR560 Desoldering Iron ..... 1 unit The following items are included in each stand: Stand Cable 1m .... -
Page 3: Features And Connections
w w w.jbctools.com Features and Connections Adjustable Cable Collector Ref. CC1001 Tip Storage Quick Tip Changer Ajustable Tool Holder Brass Wool (inside) Sponge Wiper for Modular Tool Stand Ref. CL7899 To Control Unit To Tool... - Page 4 Assembly Cable Collector and Adjustable Tool Holder The cable collector is flexible. It accompanies and adapts to the movements during the Insert the cable into the clip soldering process. and then insert into the cable collector. Do not leave the cable longer than necessary to reach the work area freely.
- Page 5 Ref. CL6210 Very effective cleaning method. Leaves a small layer of solder on the tip preventing oxidation between cleaning and rewetting. If the tip is very dirty, JBC recommends first the cleaning with the wiper to remove excess solder. Wiper The integrated wiper offers different ways to clean the cartridge tips.
- Page 6 Tip Extractor Ref. DS-SF Place the Soldering Iron with the assembled tip in the extractor groove, pull the tool towards and remove the tip. Put on the new tip and press slightly to ensure its correct postion. Tip Storage Unused tips can be stored in the extractor openings.
- Page 7 w w w.jbctools.com Accessories Suction Extension Tube Kit Ref. A1287 Length: 1.5m Stand extension cable Ref. A1286 Length: 1.5m Stand cable...
-
Page 8: Maintenance
- Periodically check all cables and tube connections. - Replace any defective or damaged parts. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service. - Page 9 w w w.jbctools.com Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the stand for any other purpose than soldering or rework. - The power cord must be plugged into approved bases. Be sure that it is properly grounded before use.
- Page 10 Notes...
- Page 11 w w w.jbctools.com Notes...
-
Page 12: Specifications
In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased. Get 1 extra year JBC warranty by registering here: https://www.jbctools.com/productregistration/ within 30 days of purchase. This product should not be thrown in the garbage.
