AURATON Aries
User manual ver. 20200817
The document presents collected information on safety, assembly and use of AURATON Aries.
Wireless Underfloor Heating Control Strip

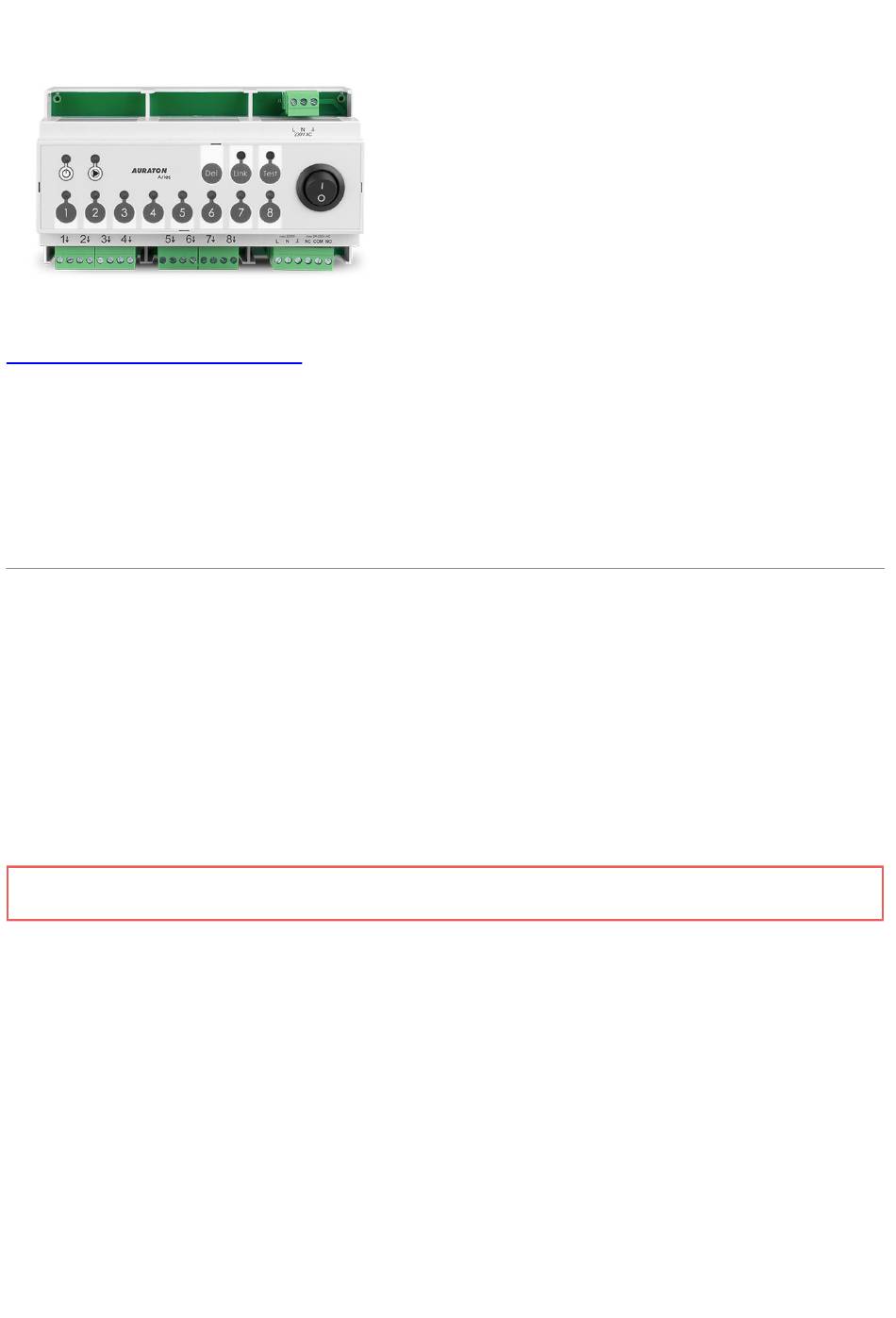

AURATON Aries is an 8-zone wireless control strip for floor heating, designed to work with AURATON
Vela actuators, a central heating pump and a heating device. Individual heating zones are controlled
with AURATON wireless temperature regulators.
NOTE:
Q
All connections must be made with the power supply disconnected.
P
AURATON Aries is designed for mounting on a DIN rail in installation cabinets. Metal
cabinets should not be used due to impaired radio communication.
Advertisement
Related Manuals for AURATON Aries
Summary of Contents for AURATON Aries
- Page 1 The document presents collected information on safety, assembly and use of AURATON Aries. Wireless Underfloor Heating Control Strip AURATON Aries is an 8-zone wireless control strip for floor heating, designed to work with AURATON Vela actuators, a central heating pump and a heating device. Individual heating zones are controlled with AURATON wireless temperature regulators.
-
Page 2: Operation
łconnecting with other AURATON Aries (up to 10 units in the system) in order to synchronize the control of central heating pump and furnace, to test the strength of radio signal from AURATON wireless regulators. -
Page 3: Mounting On A Din Rail
Zones 1-8 operation status indicator lights Mounting on a DIN rail DIN rail. Hook AURATON Aries on the DIN rail with the upper hooks. Pull the lower hook down with a “flat-head” screwdriver. Place AURATON Aries in the correct position. - Page 4 NOTE: For easier installation, the connections are equipped with pull-out clips. Before connecting wires, you can disconnect them from AURATON Aries. NOTE:...
- Page 5 All connections must be made with the power supply disconnected. AURATON Aries operation signalling AURATON Aries signals the operating statuses with the use of LED diodes. Power status indicator light (red): Power indicator light off AURATON Aries off Power indicator light on AURATON Aries operates in normal mode Central heating pump operation status indicator light (green): Indicator light off...
- Page 6 The central heating pump or the relay is switched off when no heating zone is active – the central heating pump indicator light will be off. In order to improve the operation of the heating system, AURATON Aries has been equipped with a central heating pump activation temporary delay system.
- Page 7 Such operation of AURATON Aries is intended to manage heating rationally, and prevent excessive load on the central heating pump, which could lead to its premature wear. Actuators Central heating pump Heating device, e.g. gas furnace Information and comments Only one regulator can be paired to each zone. The regulator, through an independent channel, transmits two parameters to AURATON Aries: –...
- Page 8 If AURATON Aries loses contact with the regulator of a given zone, it goes to automatic AUTO24 operation in that zone. AURATON Aries will execute the memorized heating cycles from the last 24 hours. NOTE: The manufacturer suggests pairing at least 1 AURATON weekly regulator, so that the AUTO24 function works more precisely.
- Page 9 Press the pairing button on the regulator (see the regulator’s manual) that you want to remove from the zone (or zones). AURATON Aries itself will find in which zone or zones the regulator was paired, and will remove it from all those zones that are in the removing...
- Page 10 Deleting all regulators (factory RESET) After switching off AURATON Aries with the mains switch, press and hold the DEL button, and switch the device on again. The factory RESET will be confirmed by a long beep.
- Page 11 AURATON Aries controls the central heating pump and the furnace relay depending on the status of its heating zones. In this case, the LINK function is not used. Actuators Central heating pump Central heating furnace GLOBAL 1 mode A system with the use of multiple AURATON Aries strips and one central heating pump.
- Page 12 A system using multiple AURATON Aries strips and several pumps for each zone. AURATON Aries controls the central heating pump depending on the status of its heating zones, and the furnace relay depending on the status of its heating zones...
-
Page 13: Switching The Operating Mode
AURATON Aries should operate in the GLOBAL 1 mode. With the AURAON Aries switched on in normal operation, press the LINK button for 3 s. You will hear a single acoustic signal, and the LINK light will start blinking (0.5/0.5 sec.). Then, within 60 sec., perform the same operation on the second AURATON Aries device. - Page 14 AURATON Aries will automatically switch to the next AURATON Aries. If it is necessary to remove a given AURATON Aries from the set, press the LINK button for at least 5 seconds, and after hearing a double beep (quick diode flashing) release the button, and then press and hold the DEL button for 5 seconds.
-
Page 15: Additional Notes
NOTE: If the tester function is not turned off by the user, AURATON Aries will do it automatically 10 seconds after the last press of any button. The activated test mode has no influence on the course of the heating control. -
Page 16: Technical Specifications
All connections must be made with the power supply disconnected. It is recommended to entrust the installation of Auraton Aries to professionals. For reasons of proper operation and radio signal shielding, it is essential to mount the regulator in PLASTIC electrical cabinets on a DIN rail. - Page 17 The user shall return it to a collection point for electrical and electronic waste. Hereby, LARS Andrzej Szymanski declares that the radio equipment type AURATON Apus is in compliance with Directive 2014/53/EU and 2011/65/EU. The full text of the EU declaration of conformity is available in the download section below.
