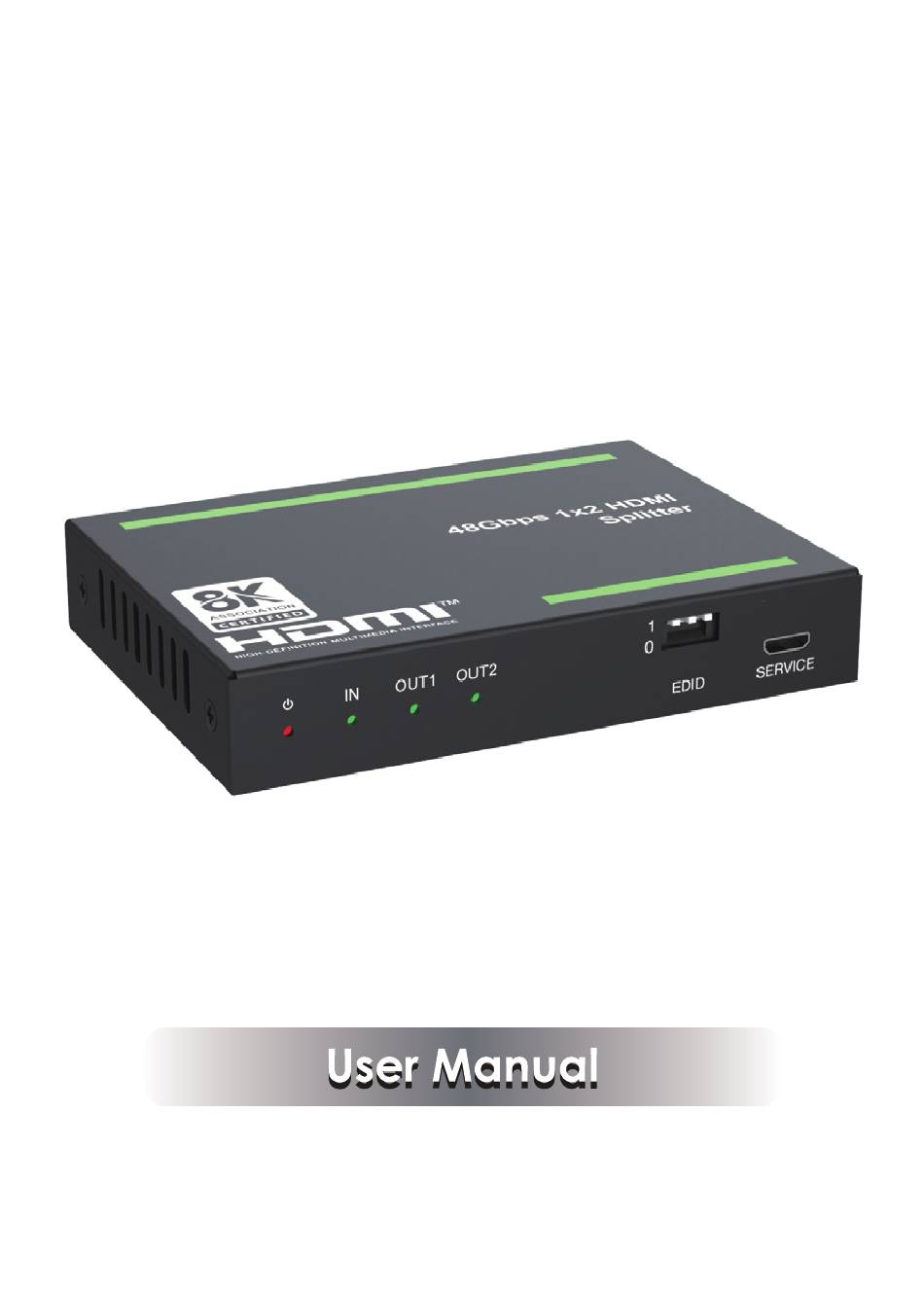

- Page 1 48Gbps 1x2 HDMI Splitter VER 1.0...
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction

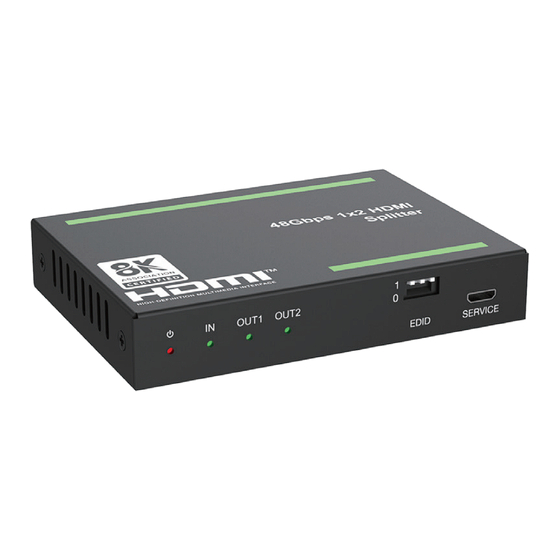

1. Introduction This 48Gbps 1x2 HDMI Splitter is an advanced solution for splitting single HDMI signal to 2 HDMI outputs synchronously, with video resolution up to 8K@60 4:2:0 12bit. It supports data rates up to 48Gbps to comply with HDMI 2.1 and HDCP 2.3 requirements. It includes several features for ease of integration, including EDID management, cable equalization. -
Page 4: Specifications
4. Specifications Technical HDMI Compliance HDMI 2.1 HDCP Compliance HDCP 2.3 Video Bandwidth 48Gbps Video Resolution Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit Color Depth 8/10/12-bit RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 Color Space HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, Audio Formats DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD HDR, HDR10, HDR10+, Dolby Vision, HLG... -
Page 5: Operation Controls And Functions
Recommended HDMI Cable Video Resolution 8K60 4K60 1080P HDMI Cable Type Ultra HDMI 2.1 cable HDMI 2.0 cable HDMI cable HDMI Cable Length 2m/6.6ft ~ 3m/10ft 10m/33ft 15m/49ft (HDMI IN / OUT) The use of “Premium High Speed HDMI” cable is highly recommended. 5. -
Page 6: Auto Downscaling & Auto Converting
Name Function Description Use the DIP switch to set EDID. [DIP]=111: Copy OUT 1 port sink EDID (as factory default) [DIP]=110: 4K60 (4:4:4), 2.0CH [DIP]=101: FRL12G_8K_HDR, 2.0CH EDID DIP [DIP]=100: FRL12G_8K_HDR, 5.1CH switch [DIP]=011: FRL12G_8K_HDR, 7.1CH [DIP]=010: FRL10G_8K_HDR, 2.0CH [DIP]=001: FRL10G_8K_HDR, 5.1CH [DIP]=000: FRL10G_8K_HDR, 7.1CH Firmware update port. -
Page 7: Application Example
Splitter 4K HDR TV 8K Source 1080P SDR 8K HDR 1080P SDR 1080P SDR TV 7. Application Example DVD or Blu-ray Player Power Supply OUT 1 OUT 2 DC 5V 8K TV 2 8K TV 1 The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
