- Page 1 Operating instructions VX 26 H 0650 VX 29 H 0650 Local/Remote feed distribution amplifier Connecting past, present and future. wisigroup .com...
- Page 2 Stay up to date For more information on your device, visit our support-website: www.wisiconnect.tv After logging in/registering, you will have access to a variety of interesting infor- mation and features, such as release notes or installation examples.
-
Page 3: Table Of Contents
4.1 VX 26 H 0650 ........ -
Page 4: Important Information
1 About this document These operating instructions are part of the device. If the warnings, notes and instructions in this document are not followed, WISI does not assume any warranty or liability for safe operation and function of this device. -
Page 5: Safety Instructions
2 .3 Improper use Any other use will result in the loss of warranty or guarantee. WISI is not liable for any damages resulting from this. The user bears the sole risk. 2 .4 Specialist personnel 2 .4 .1 Assembly and repair •... -
Page 6: Electrical Safety
Important information 2 .6 Electrical safety • The local mains voltage must correspond to the specified supply voltage of the device. • Carry out work on the device in accordance with the local safety regulations. • Observe the safety regulations of the current standards EN 60728-11 and EN 62368-1 or the national standards. -
Page 7: Overview
VX 29 H xxxx 27...90 VAC 3 .2 RF connectors WISI type Description ZG 27 PG 11 case connection for WISI MK 15 cable ZG 28 PG 11 adapter, F female ZG 35 A PG 11 adapter, 3.5/12 female EN | 7... -
Page 8: Outer Features
Important information 3 .3 Outer features Input Output 2 Output 1 GND terminal Mains input 8 | EN... -
Page 9: Technical Data
Important information 3 .4 Technical data The latest technical data can be found on the Internet at www.katalog.wisi.de. Downstream Frequency range 85...1006 MHz ≥ 18 dB (-1 dB/Oct.) Return loss ≤ 6,0 dB Noise figure Gain 41 dB ≤ ± 0,5 dB (85...862 MHz) Frequency response ≤... - Page 10 Important information Upstream Frequency range 5...65 MHz ≥ 18 dB (-1 dB/Oct.) Return loss ≤ 6,0 dB Noise figure Gain 24 ±0,5 dB ≤ ± 0,5 dB Frequency response Input/Output attenuator 0...15 dB Step size 1 dB Interstage attenuator (Jumper) 0/5 dB Interstage equalizer (Jumper) 0/3/6/9 dB...
-
Page 11: Installation
Important information 4 Installation There are two main powering concepts, depending on your amplifier type as shown in the follo- wing block diagram: EN | 11... -
Page 12: Vx 26 H 0650

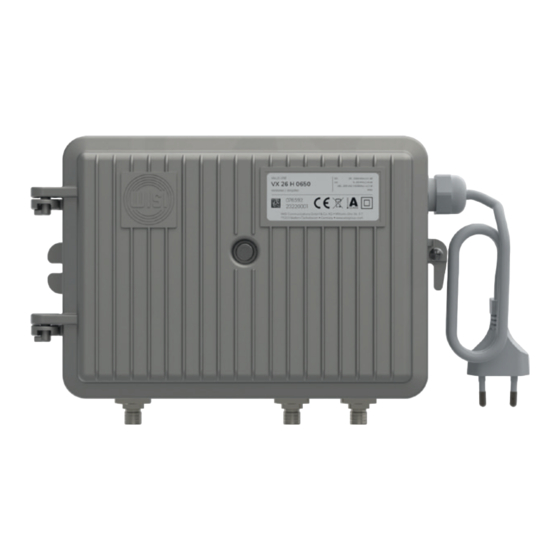

Important information 4 .1 VX 26 H 0650 The VX 26 H 0650 is fed locally from 180...265 VAC mains and is equipped with a standard Europlug power cord. DANGER Injuries due to electric shock Never touch live parts. Never remove factory mounted covers inside of the device (e.g. power supply protection cover). -
Page 13: Vx 29 H 0650
Important information 4 .2 VX 29 H 0650 The VX 29 H 0650 is fed remotely from 27...90 VAC. Remote powering can be engaged from the RF Input by plugging the according fuse. Power supply can be forwarded to next amplifi er by plugging in fuses into corresponding sockets. - Page 14 Important information Connect the unit to a potential equalisation system in accordance with the locally applicable electrical standards. For this purpose, the position marked with must be used. Loosen the cover screws and open the cover. For supplying the device with remote power , plug a fuse in the „Fuse socket Input“ (Pos.3) When the device is supplied with power, the power indicator LED lights up green.
- Page 15 Important information EN | 15...
- Page 16 WISI Communications GmbH & Co. KG Wilhelm-Sihn-Str. 5-7 75223 Niefern-Öschelbronn, Germany Fon: +49 7233 66 0 wisigroup .com info@wisigroup.com...
