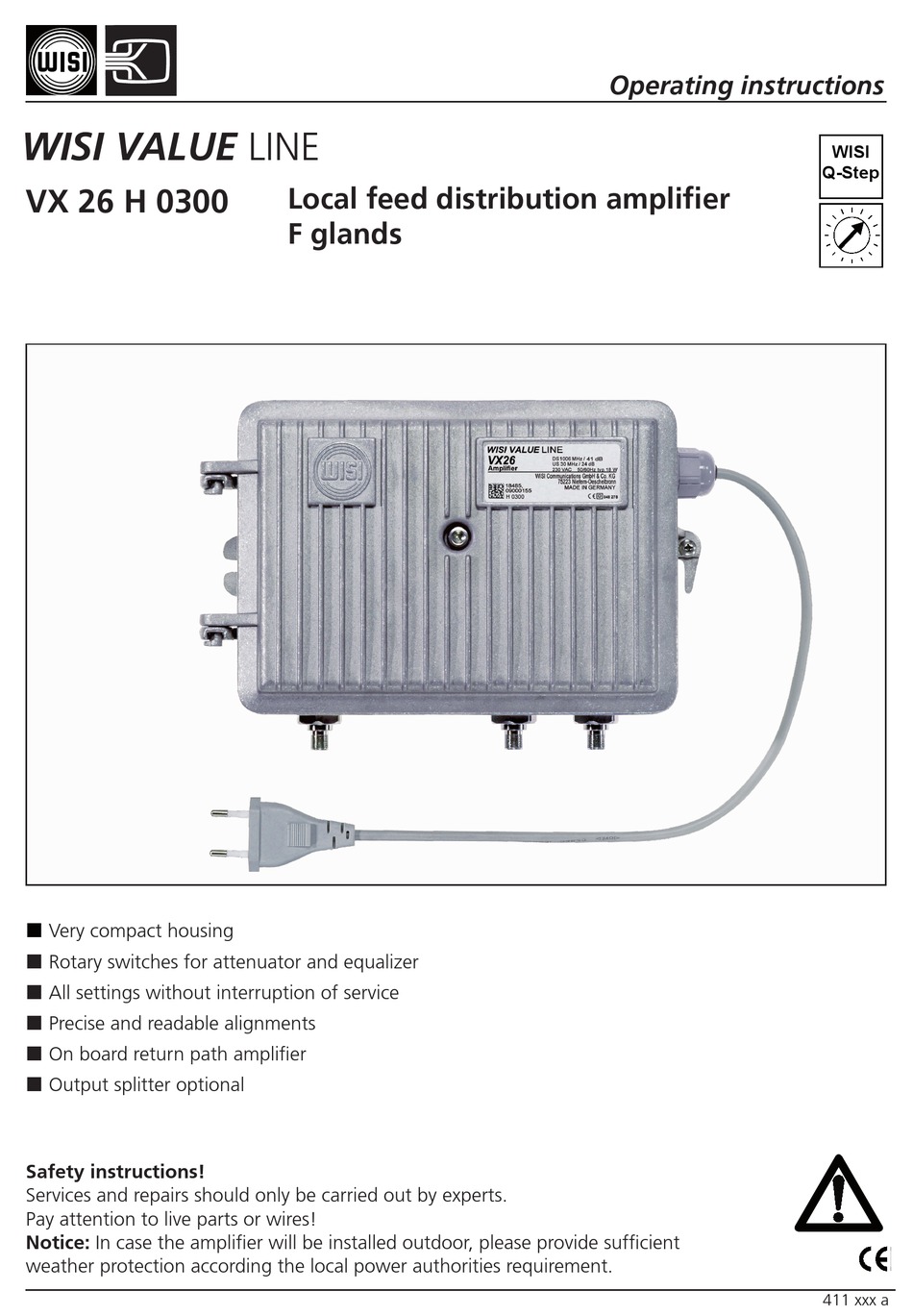

WISI VALUE LINE
VX 26 H 0300
Very compact housing
Rotary switches for attenuator and equalizer
All settings without interruption of service
Precise and readable alignments
On board return path amplifier
Output splitter optional
Safety instructions!
Services and repairs should only be carried out by experts.
Pay attention to live parts or wires!
Notice: In case the amplifier will be installed outdoor, please provide sufficient
weather protection according the local power authorities requirement.
Local feed distribution amplifier
F glands
Operating instructions
WISI
Q-Step
411 xxx a
- 1 -
Advertisement
Related Manuals for Wisi VX 26 H 0300
Summary of Contents for Wisi VX 26 H 0300
-
Page 1: Operating Instructions
Operating instructions WISI VALUE LINE WISI Q-Step Local feed distribution amplifier VX 26 H 0300 F glands Very compact housing Rotary switches for attenuator and equalizer All settings without interruption of service Precise and readable alignments On board return path amplifier... - Page 2 Dimensions / Connectors VX 26 H - F glands 231 mm Output Input DS 214 mm Initialisation Initialisation 1. Loosen the cover screw and open the cover. 2. Insert the power plug in the AC wall outlet. 3. Adjust the amplifier with attenuator and equalizer in accordance of the level plan. 4.
-
Page 3: Specifications
6 dB slope 114 dBµV ≥ 60 dB - CSO, CTB Noise figure up to 600 MHz < 6 dB WISI up to 1000 MHz < 9 dB Q-Step - Attenuator Rotary switch 16 steps per 1 dB 0-15 dB... -
Page 4: Block Diagram
Empfangs- und Verteiltechnik Technische Änderungen und Druckfehler vorbehalten! Wilhelm-Sihn-Straße 5-7, 75223 Niefern-Oeschelbronn, Germany Technical Modifications reserved. WISI cannot be held Tel . 07233 / 66-0, Fax. 66-320, http://www.wisi.de liable for any printing error. excellence in digital ... - 4 -...
