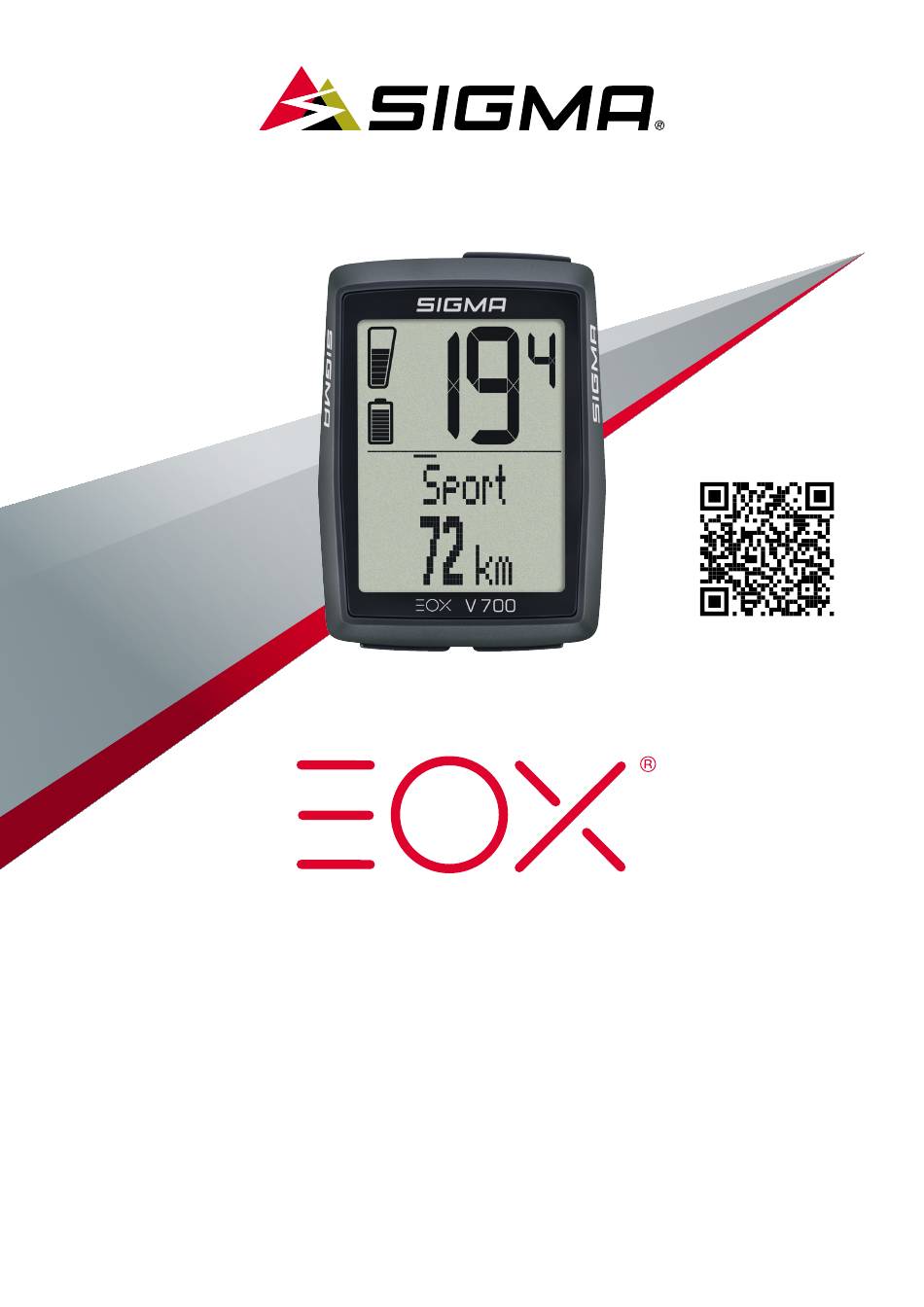

- Page 1 LATEST UPDATE AT VIEW 700 OPERATING AND MOUNTING INSTRUCTIONS Version: 1.0 Draft...
-
Page 2: Table Of Contents
Contents Safety notes Ride information User interface Battery level Operation Assist mode Initial wake-up Light status Controlling ride menu Pop-up messages Trip data reset Backlight indicator Power off Speed Main Menu Service alert Connection Multifunctional display area Totals Estimated range and assist mode Settings All functions of multifunctional area Device Info... -
Page 3: User Interface
2 User interface ASSIST MODE SPEED BACKLIGHT INDICATOR E-BIKE BATTERY LEVEL BIKE LIGHT MULTIFUNCTIONAL AREA The VIEW 700 integrates 3 buttons ( ) to control its user interface (see chapter 3). VIEW 700 I User interface I 3 ®... -
Page 4: Operation
3 Operation 3.1 Initial wake-up − Long-press button (> 5 s) to wake-up EOX VIEW 700 from shipping mode. ® − You‘ll be guided through initial settings of EOX VIEW 700. ® WAKE-UP Long press 5 sec. Change language Change E-Bike Wake-up button) Short-press button) Wait (icon shown depends on Select language button Select E-Bike Esystem connected) (15 –... -
Page 5: Controlling Ride Menu
3.2 Controlling ride menu − To change functions shown in multifunctional area of EOX VIEW 700 press button in ride menu. ® 3.3 Trip data reset − To reset trip data of EOX VIEW 700 long-press button (>2 s). ® 3.4 Power off − To power off EOX VIEW 700 long-press button (>5 s). ® − Note: EOX VIEW 700 will turn off automatically after 5 min of no connection to the E-Bike. VIEW 700 I Operation I 5 ®... -
Page 6: Main Menu
4 Main menu 4.1 Connection − Long-press button (>2 s) to enter menu − Select item Connection with button and select with button − Following connections can be done: 1. Connect to EOX app (see chapter 7) 2. Connect or disconnect a E-Bike 3. Connect or disconnect a Remote Connect E-Bike Select Select Select... - Page 7 Disconnect E-Bike − Note: diconnecting the E-Bike is only necessary if you want to switch EOX VIEW 700 to another bike. ® Select Select Select Select VIEW 700 ® Disconnect Long-press button (>2 s) Connection and E-Bike and E-Bike E-Bike? and wait menu to open press and press and press are now and press button button button disconnected button Connect the REMOTE ONE...
-
Page 8: Totals
4.2 Totals − VIEW 700 shows „My Totals“ and „E-Bike Totals“. ® My Totals: The EOX VIEW 700 records its own total distance and ride time independent from E-Bike. ® − It is possible to manipulate the device total values. See explanation below. E-Bike Totals: The E-Bike Totals show total values provided by the E-System / motor. Short-press button Set ten thousands digit Set thousands digit Set hundreds digit and short-press button and short-press button and short-press button to change totals Set tens digit Set ones digit... -
Page 9: Device Info
4.4 Device Info − Long-press button (>2 s) to enter menu − Select item „Device Info“ with button and select with button Shows technical information about the EOX VIEW 700 ® Name Firmware version of the device 4.5 E-Bike diagnostic information − VIEW 700 shows diagnostic information of paired E-Bike ® − Long-press button (>2 s) to enter menu. −... -
Page 10: Ride Information
5 Ride information 5.1 Battery level − Battery level of E-Bike is shown in segment area − Logic of battery indicator depends on E-Bike connected − Detailled information can be found here: [LINK] − SIGMA default logic of battery indicator is described below: 19 - 10% 100 - 80% Low 79 - 60% 59 - 40% 39 - 20% 19 - 10% (flashing) 5.2 Assist mode − Currently selected Assist Mode is shown permanently in segment area − Assist mode indicator is filled from bottom to top with Assist Mode increasing − SIGMA default logic of Assist Mode indicator is described below:... -
Page 11: Light Status
5.3 Light status − Light status level of E-Bike is shown in segment area − Light status can either be off or on Light off Light on 5.4 Pop-up messages − Connection and disconnection of E-Bike, Remote, battery status or Smartphone are indicated by a pop-up message (2s) E-System E-System Smartphone Smartphone disconnected connected disconnected connected Remote Remote VIEW 700 ® disconnected connected Battery low VIEW 700 I Ride information I 11 ®... -
Page 12: Backlight Indicator
5.5 Backlight indicator − Backlight mode of EOX VIEW 700 is indicated in segment area. ® Backlight mode Backlight mode disabled enabled − The backlight can be switchen on / off by pressing button simultaniously. − Once backlight mode is enabled backlight is turned on for 2s with each button press. − If backlight is off, first button press only turns backlight on and does not trigger any other action. Note: If EOX VIEW 700 battery is almost empty or the environmental temperature is very low, the backlight can‘t be switched ON. ® The power consumption of the backlight would cause the EOX VIEW 700 to switch OFF. ® 2 s wit h o ut b ut to n p re ss C on trol VIE W 700 ®... -
Page 13: Speed
5.6 Speed − Current speed of E-Bike is permanently shown in EOX VIEW 700 segment area ® − Speed unit (kmh or mph) depends on device settings (see chapter 3.5.3) Current Speed 5.7 Service alert − VIEW 700 shows a pop-up message if service of connected E-Bike is due. ® − The service alert can be defined based on total ride distance and/or date. − This pop-up message will be shown once (when it happens) and each time EOX VIEW 700 is powered on again ® until service is done. − Please contact your bike manufacturer or a certified bicycle workshop. Service alert pop-up message VIEW 700 I Ride information I 13 ®... -
Page 14: Multifunctional Display Area
6 Multifunctional display area 6.1 Estimated range and assist mode − Estimated range and name of current assist mode can be shown combinated in EOX VIEW 700 multifunctional area. ® Note: The EOX VIEW 700 does not calculate the „Estimated range“. The value is provided by the E-Bike. ® Estimated range of Estimated range of 156 km with assist mode 78 km with assist mode “Tour”... - Page 15 APP I 15 ®...
-
Page 16: Eox ® App
7 SIGMA EOX ® SIGMA EOX App is available in the Google Play Store and Apple App Store. ® Compatibility: The app can be installed on Android version 5.0 and higher as well as on iOS version 11.0 and higher. Languages: German, English, French, Italian, Dutch, Polish, Spanish, Czech 7.1 Connect EOX VIEW 700 with EOX ® ® − Make sure EOX VIEW 700 is turned on and your smartphone is around. - Page 17 − Starting and stopping Trip recording is indicated at EOX VIEW 700 by showing a pop-up message. ® Pop-up message Pop-up message indicating that trip indicating that trip recording has been recording has been started stopped Menu “My trips” − Summary of all recorded trips − Weekly, monthly and yearly statistic (distance, ride time) − Show goal achievement APP I 17 ®...
- Page 18 Menu “Trip” Following data can be added to the trip individually: − Trip name − Trip date and time − Sport type − Weather and wind information − Feeling The following values are recorded: − Location on the map − Ride time − Average speed − Maximum speed − Average temperature − Maximum temperature − Battery drain − Assist Modes Additional: − Trip can be shared with third parties in real-time by tapping (iOS) (Android). − By tapping on (iOS) (Android), the trip can be individually arranged, edited or deleted. −...
- Page 19 VIEW 700 ® − Total values (distance, ride time) General settings − Set language and scale unit User − User settings Cloud & Apps − Recorded trips can be synchronized with the SIGMA CLOUD or shared to third party platforms as STRAVA and komoot Goals − Set goals to keep yourself motivated Help & Feedback − Videos of the EOX series ® − Contact our support APP I 19...
- Page 20 ASSEMBLY 20 I EOX Assembly ®...
-
Page 21: Eox ® Assembly
8 Assembly 8.1 OVER CLAMP BUTLER + - 5° 3D Rubber Pad 0,5 Nm 2,5 mm Ø 31,8 mm Ø 35 mm + - 5° Ø 31,8 mm Rubber Pad Option: With the included LOCKING SCREW (2 mm Allen key) it is possible to lock the EOX VIEW 700 on ®... -
Page 22: Technical Information
CE, ROHS, REACH CE Declaration of Conformity We, SIGMA-ELEKTRO GmbH, declare that the equipment above has been tested in our facility and found compliance with the requirement limits of applicable standards, in accordance with the RED Directive 2014/53/EU and the ROHS Directive 2011/65/EU and additional according to Directive (EU) 2015/863 to ament Annex II of the above mention Directive with 4 additional substances. The test record, data evaluation and Equipment Under Test (EUT) -
Page 23: Romote One
REMOTE ONE VIEW 1300 I Disposal I CE Declaration I 23 ®... -
Page 24: Button Functions
10 REMOTE ONE 10.1 BUTTON FUNCTIONS Button Button Status LED Battery of the Button REMOTE ONE Button Button Button Button Function One page backward / decrease value Button One page forward / increase value Button Open menu / confirm selection Button 24 I REMOTE ONE I Button Functions... - Page 26 SIGMA-ELEKTRO GmbH Dr.-Julius-Leber-Straße 15 67433 Neustadt/Wstr. Germany service@sigma.bike WARNING: Contains button or coin cell battery. Hazardous if swallowed - see instructions. sigma.bike...
