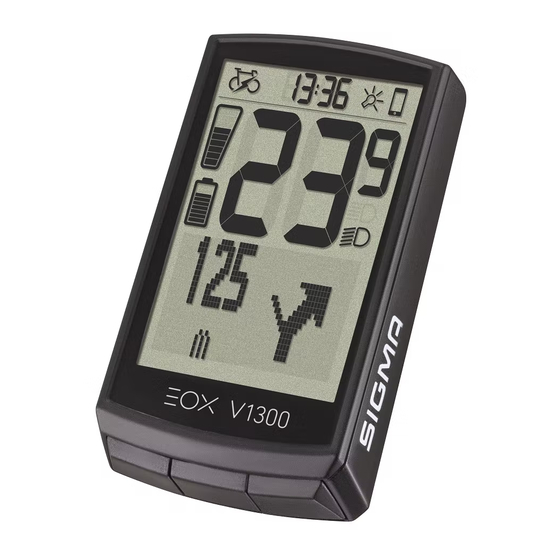

VIEW 1300
OPERATING AND MOUNTING INSTRUCTIONS
Version:
0.1 Draft

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EOX VIEW 1300 and is the answer not in the manual?

Questions and answers

Related Manuals for Sigma EOX VIEW 1300

Summary of Contents for Sigma EOX VIEW 1300

  • Page 1 VIEW 1300 OPERATING AND MOUNTING INSTRUCTIONS Version: 0.1 Draft...

  • Page 2: Table Of Contents

    Contents VIEW 1300 ® Operation Safety notes Initial wake-up Product concept Controlling ride menu User interface Trip reset Segmented display area Power off 2.1.1 Battery level Settings 2.1.2 Assist mode Disconnect E-System 2.1.3 Light status Connect E-System E-System and 2.1.4 E-System diagnostic information smartphone connection indicator Connect HR sensor...

  • Page 3: Eox ® View 1300

    ® App. Wireless SIGMA E-Bike Computer offer the greatest possible flexibility and a wealth of additional features and functions. They allow cable free hence clean cockpit solutions for E-Bikes using our partner‘s E-Systems. More details about compatile E-Systems can be found here:...

  • Page 4: User Interface

    2. User interface CLOCK BACKLIGHT INDICATOR SMARTPHONE E-BIKE CONNECTION CONNECTION ASSIST MODE HIGH BEAM BATTERY LEVEL LOW BEAM MULTIFUNCTIONAL AREA SPEED The VIEW 1300 integrates 3 buttons (A / B / C) to control its user interface (see chapter 3). 4 I EOX ®...

  • Page 5: Segmented Display Area

    This message includes the Assist Mode name and can be en-/disabled in EOX ® VIEW 1300 settings or by EOX ® − SIGMA default logic of Assist Mode pop-up message is described below: Assist Mode 0 Assist Mode 1 Assist Mode 2 Assist Mode 3...

  • Page 6: Light Status

    2.1.3 Light status − Light status level of E-System is shown in segment area − Light status can either be off, low beam, or high beam − Whether high beam function is available or not depends on E-System setup Light off Low beam High beam 2.1.4...

  • Page 7: Backlight Indicator

    2.1.5 Backlight indicator − Backlight mode of EOX ® VIEW 1300 is indicated in segment area. Backlight mode Backlight mode disabled enabled − With integrated ambient light sensor EOX VIEW 1300 automatically enables backlight mode in dark conditions and ® disables backlight mode in bright conditions.

  • Page 8: Clock

    2.1.7 Clock − Clock is permanently shown in EOX ® VIEW 1300 segment area. − Clock can be set manually (see chapter 3.5) and will be set automatically each time EOX ® App is connected. − Clock format (12h or 24h) depends on device settings (see chapter 3.5) Current Clock 8 I EOX ®...

  • Page 9: Multifunctional Display Area

    Multifunctional display area 2.2.1 Estimated range and assist mode − Estimated range and name of current assist mode can be shown combinated in EOX ® VIEW 1300 multifunctional area. Estimated range of Estimated range of 40 km with assist mode 28 km with assist mode “Mode 4”...

  • Page 10: Gear Level And Shifting Advice

    2.2.4 Gear level and shifting advice − Current rear gear can be shown on EOX ® VIEW 1300 multifunctional area. − Visual representation indicates whether lowest (A), highest (B), or any intermediate gear (C, D, E) is selected. − If E-System advices to shift (up or down) an indicator is shown right to the visual (D, E). Gear 5 selected Gear 5 selected Lowest gear...

  • Page 11: All Functions Of Multifunctional Area

    2.2.6 All functions of multifunctional area Distance since Ride time since Average speed since Maximum speed since the last trip reset the last trip reset the last trip reset last trip reset Estimated range Environmental Cadence Human power and assist mode temperature (see chapter 2.2.1) Heart rate and...

  • Page 12: Operation

    3 Operation 3.1 Initial wake-up − Long-press button (> 5 s) to wake-up EOX ® VIEW 1300 from shipping mode. − You‘ll be guided through initial settings of EOX ® VIEW 1300 (A). − If you purchased EOX ® VIEW 1300 being part of E-System, both can already be paired. If so, start with (B). Select E-System VIEW 1300 ®...

  • Page 13: Controlling Ride Menu

    3.2 Controlling ride menu − To change functions shown in multifunctional area of EOX ® VIEW 1300 press button in ride menu. 3.3 Trip reset − To reset trip data of EOX ® VIEW 1300 long-press button (>2 s). 3.4 Power off −...

  • Page 14: Connect E-System

    3.7 Connect E-System ® Select Select Select VIEW 1300 Long-press B button (>2 s) Connection E-Bike E-System and and E-Sytem Wait and wait menu to open and press and press short-press are now (15 – 60 s) B button B button B button connected −...

  • Page 15: E-System Diagnostic Information

    3.8 E-System diagnostic information − ® VIEW 1300 shows diagnostic information of paired E-System − Long-press button (>2 s) to enter menu. − Select item Connection and short-press button. − Select item E-Bike and short-press button. − The following diagnostic information can be shown: Total distance value Wireless protocol Name...

  • Page 16: Connect Hr Sensor

    Connect HR sensor ® Select Select Select VIEW 1300 Long-press B button (>2 s) Connection Heartrate HR sensor and HR sensor Wait and wait menu to open and press and press and press are now (15 – 60 s) B button B button B button connected...

  • Page 17: Device Totals

    3.11 Device totals − ® VIEW 1300 records its own total distance and ride time independent from E-System. − Long-press button (>2 s) to enter menu. − Select item Totals and short-press button. − It is possible to manipulate the device total values: Short-press B button Set ten thousands digit Set thousands digit...
  • Page 18 18 I EOX ®...
  • Page 20 4. SIGMA EOX ® SIGMA EOX ® App is available in the Google Play Store and Apple App Store. Compatibility: The app can be installed on Android version 5.0 and higher as well as on iOS version 11.0 and higher.
  • Page 21 − Starting and stopping Trip recording is indicated at EOX ® VIEW 1300 by showing a pop-up message. Pop-up message Pop-up message indicating that trip indicating that trip recording has been recording has been started stopped Menu “My trips” − Summary of all recorded trips −...
  • Page 22 Menu “Trip” Following data can be added to the trip individually: − Trip name − Trip date and time − Sport type − Weather and wind information − Feeling The following values are recorded: − Location on the map − Ride time −...
  • Page 23 Set language and scale unit User − User settings Cloud & Apps − Recorded trips can be synchronized with the SIGMA CLOUD or shared to third party platforms as STRAVA and komoot Goals − Set goals to keep yourself motivated Help & Feedback −...

  • Page 24: Eox ® App

    VIEW 1300 WITH KOMOOT APP 24 I EOX APP 24 I KOMOOT APP...

  • Page 25: Komoot App

    You can connect the komoot app with the EOX ® VIEW 1300 to show the turn-by-turn instructions. Initial Connection Open your profile in Open settings. Open menu option Start pairing to Komoot. “Bluetooth Connect” a SIGMA device. KOMOOT APP I 25...
  • Page 26 Initial Connection In the Ride menu of Both Komoot and EOX ® VIEW 1300 are Once a connection is established, ® VIEW 1300 now searching for a connection. Komoot and EOX ® VIEW 1300 display navigate to the option a message. In case of connection „Connect Komoot“...
  • Page 27 Subsequent Connections Start a navigation in In the Ride menu of ® VIEW 1300 connects to Komoot. Komoot. Make sure that ® VIEW 1300 In case of connection difficulties, start the EOX ® your smartphone has navigate to the option in parallel and connect EOX ®...
  • Page 28 ASSEMBLY 28 I EOX ® Assembly...

  • Page 29: Over Clamp Butler

    6. Assembly 6.1 Over Clamp Butler Mounting the EOX VIEW 1300 on the Over Clamp Butler ® − Set the EOX ® VIEW 1300 in 11 o’clock position on the Over Clamp Butler − Turn the EOX ® VIEW 1300 to the right until it’s straigt. −...
  • Page 30 6.2 EOX Ribbon Butler ® Insert EW-EN100 in Ribbon Butler − Loosen the clamping − Open the clamp screw (2.5 mm Allen key) − Loosen the four screws − Open the back of the back case cover case cover (Phillips-head screw) −...
  • Page 31 − Insert EW-EN100 in the intended opening. − Slot #1 must point at the clamp. − The button muss point at the opening on the top side of the Ribbon Butler. − Carefully, place the cable outlet #1 inside the cable groove.
  • Page 32 − Slide in the back case cover. − Press down the cover until it fits tightly inside the intended opening. − Fix the cover with the four screws (Phillips-head screw). 32 I EOX ® Assembly...
  • Page 33 Mounting the EOX ® VIEW 1300 on the Ribbon Butler − Set the EOX ® VIEW 1300 in 11 o’clock position on the Ribbon Butler − Turn the EOX ® VIEW 1300 to the right until it’s straight. Option: With an additional screw (2.5 mm Allen key) it‘s possible to lock the EOX ®...

  • Page 34: Technical Information

    7. Technical information Dimensions 16.34 29.95 47.82 Weight 43 g Power supply CR 2450 IP rating IPX6K, IPX7 Operating temperature -10/25/60 °C (min/typ/max) Storage temperature -20/25/70 °C (min/typ/max) Certifications CE, FCC, ROHS, REACH 8. Product care − Remove dirt carefully with water or a soft wipe. −...

  • Page 35: Disposal

    CE Declaration of Conformity We, SIGMA-ELEKTRO GmbH, declare that the equipment above has been tested in our facility and found compliance with the requirement limits of applicable standards, in accordance with the RED Directive 2014/53/EU and the ROHS Directive 2011/65/EU and additional according to Directive (EU) 2015/883 to ament Annex II of the above mention Directive with 4 additional substances.
  • Page 36 Federal Communication Commission Interference Statement FCC: M5LV1300 Caution: If any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 37 Industry Canada Statement IC number: 7580A-R500 This device complies with Innovation, Science and Economic Development Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. CAN ICES-3(B)/NMB-3(B) Le présent appareil est conforme aux CNR Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence.
  • Page 38 SIGMA-ELEKTRO GmbH Dr. - Julius - Leber - Straße 15 D -67433 Neustadt /Weinstraße Tel. + 49 (0) 63 21- 9120 - 0 Fax + 49 (0) 63 21- 9120 - 34 E - Mail: info@sigmasport.com...
