Security Brands Ascent C4 Install Manual

I n s t a l l G U I D E
1
Unlatch and open unit door for wiring
2
and setup.
S T O P

This is a cellular accessory for a gate or door.
An uninterrupted cellular connection
CANNOT BE GUARANTEED!
An emergency egress or primary entry
mechanism SHOULD ALWAYS BE USED!
(transmitter, fire box, mechanical release)
Consult with your dealer, distributor, and/or
system designer for more information.

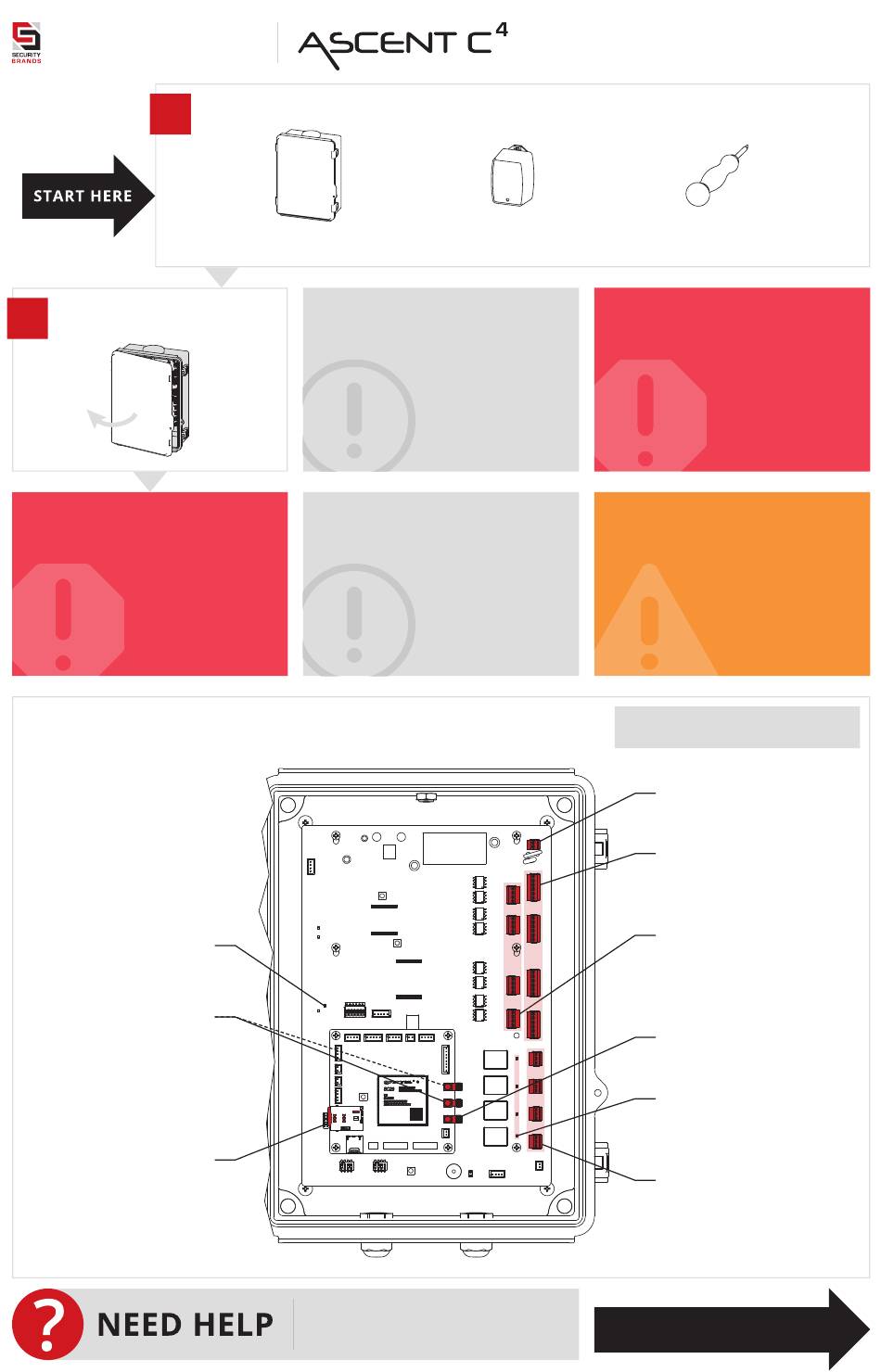

What's what?
All important components labeled
Power Indicator LED
Cellular Antenna Jacks
Jack marked with dashed line is
backup jack and not used.
SIM Card
Press in gently to eject.
Unpack box and make sure you have all items shown here.
Ascent Unit
I M P O R T A N T
r
This Ascent unit WILL NOT WORK until the
activation process is COMPLETE!
See the included Activation Guide to get this
If you need help or have any questions, please
contact Summit Control at (972) 474-6422.
I M P O R T A N T
 r
If mounting in a location that will shield the
4G LTE Antenna Extension Kit
should be purchased and installed.
Failure to do so may result in NO SIGNAL!
Call (972) 474-6422
Email support@summitcontrol.com
We are available Mon–Fri / 8am–5pm Central
12-V AC/DC Adapter
r
unit activated.
r
puck antenna, the
(Model 16-ANTX-1)
Model
Screwdriver
W A RN I NG

AUTOMATIC GATES CAN CAUSE SERIOUS
INJURY OR DEATH!
ALWAYS CHECK THAT THE GATE PATH IS
CLEAR BEFORE OPERATING!
REVERSING OR OTHER SAFETY DEVICES
SHOULD ALWAYS BE USED!
CA U TI O N

Leave the "hockey puck" antenna in place
even if using an antenna extension.
Seal all openings created in the enclosure.
Failure to follow these instructions can
damage the unit!
Unit shown with door fully open.
Internal wiring not shown for clarity.
Power Terminals
For wiring to included power
supply. See Page 2.
Wiegand Terminals
For wiring to Wiegand devices.
See Page 2.
Digital Input Terminals
For connecting accessory devices.
Scan QR code on next page for
wiring instructions.
WiFi/Bluetooth Antenna Jack
Relay Status LEDs
Relay is active when lit.
Relay Terminals
For wiring to gate operator or
door opener. See Page 2.
Status LEDs are next to the
relay they correspond to.
Flip page to continue...
1 of 2
25-C4


