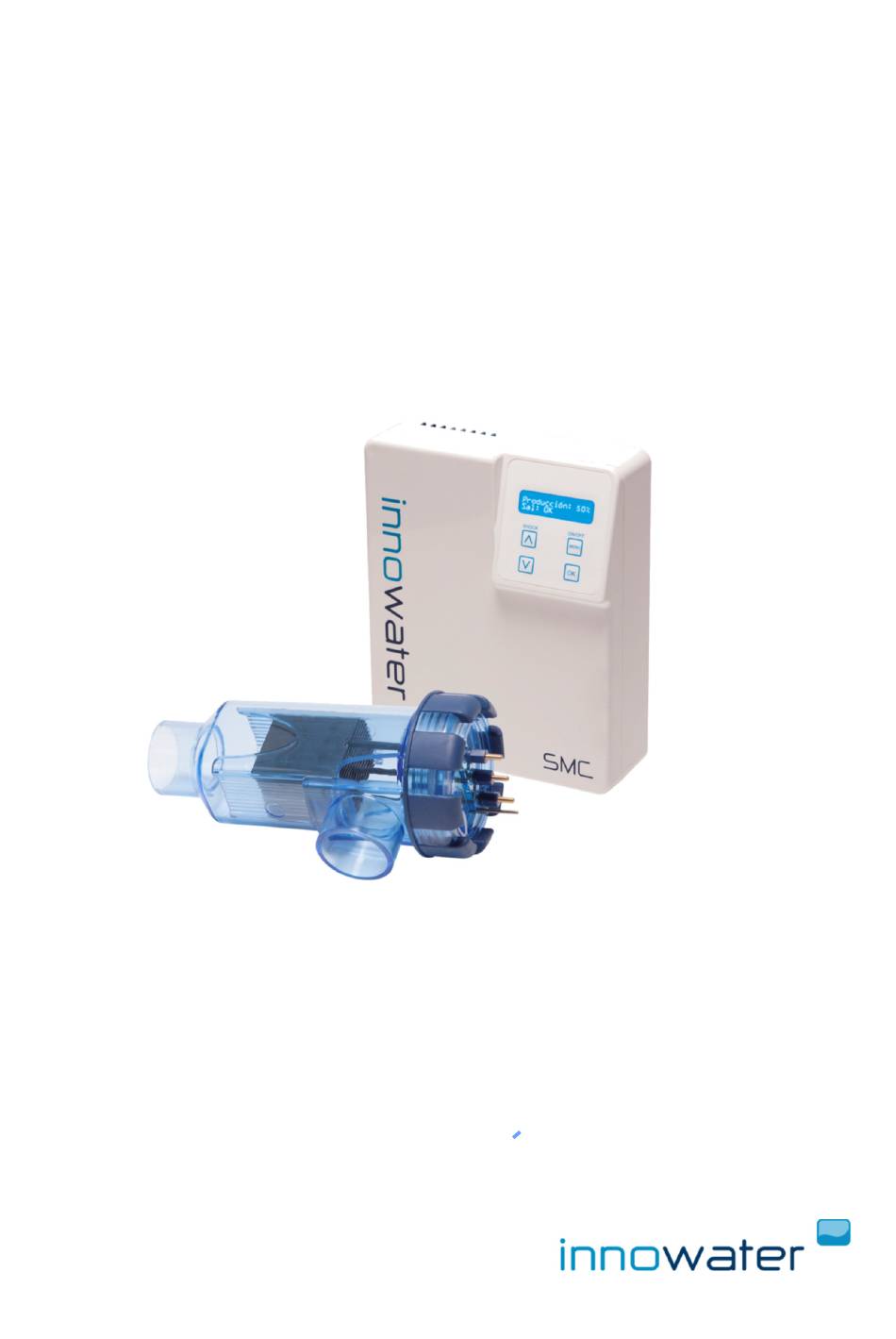

- Page 1 Redox Option Manual 05-2024...
-
Page 2: Table Of Contents
Página WARNINGS …………………………….…………………………….………… Operating …………………………………….………………………………. 2 Installation of the Redox probe ……………………………….…. 3 RX control functions …………………………………………………… 3.1 Activation …………………………………………………………. 3.2 Set points …………………………………..……………………. 3.3 Calibration …………………………………………………………. 3.4 Factory calibration…………………………………………... 4 Technical features ……………….…….………………………………... -
Page 3: Warnings
UAL CHECK of the pH and redox potential using approved means to ensure that the values are within the accepted limits. INNOWATER TRATAMIENTOS INTERGRALES DEL AGUA S.L. declines all responsibility for possi- ble material and/or personal damage caused by excessive or insufficient injection of acid, chlo- rine or other chemical substances or due to their handling or storage. -
Page 4: Operating
1. Operating The redox option provides continuous readings of the redox potential of the pool water thanks to a probe connected to the chlorinator and installed in the filtration circuit. When the Control RX function is activated, the production of the chlorinator is automatically regulated based on these readings. -
Page 5: Set Points
When the Control RX function is activated, the top line of the main screen permanently indicates the value of the redox potential and the chlorine production calculated based on the redox poten- < > tial and the established set points. When the Control RX function is activated the keys to manually change the production have NO effect since it is the RX function that controls the production: 650 mV... -
Page 6: Calibration
You can set both points and choose the production percentage for each of them. To do this, use the MENU key to place the cursor on the parameter to be modified and press the arrows < > to change its value. Press OK to save the data and exit the submenu. The total amount of chlorine produced is determined by the value of the established production percentages. -
Page 7: Factory Calibration
3.4 Factory calibration MAIN MENU RX Control 7 RX Control 1 Activation Factory calib? RX Control yes:OK Exit:MENU 4 Factory calib. Using this function you can restore the factory calibration that corresponds approximately to the theoretical measurement of a new probe. This function can be useful in some situations to cor- rect or diagnose faults or if you do not have buffer solutions. - Page 8 Opción Redox...
