Summary of Contents for Innowater pH Wireless option

  • Page 1 Wireless option 05-2024...
  • Page 2: Table Of Contents

    Page WARNINGS DESCRIPTION INSTALLATION OPERATING CONFIGURATION AND CALIBRATION 1 Activation of the pH functions 2. Set points 3. pH4 calibration 4. pH7 calibration 5. Factory calibration 6. Radio output 7. Initial dosage delay 8. Dosing alarm...
  • Page 3: Warnings

    MANUAL pH CHECK using approved means to ensure that the pH is within the accepted limits. INNOWATER TRATAMIENTOS INTERGRALES DEL AGUA S.L. declines all responsi- bility for material and personal damage caused by an excessive or insufficient dosage of acid or due to its handling.
  • Page 4: Description

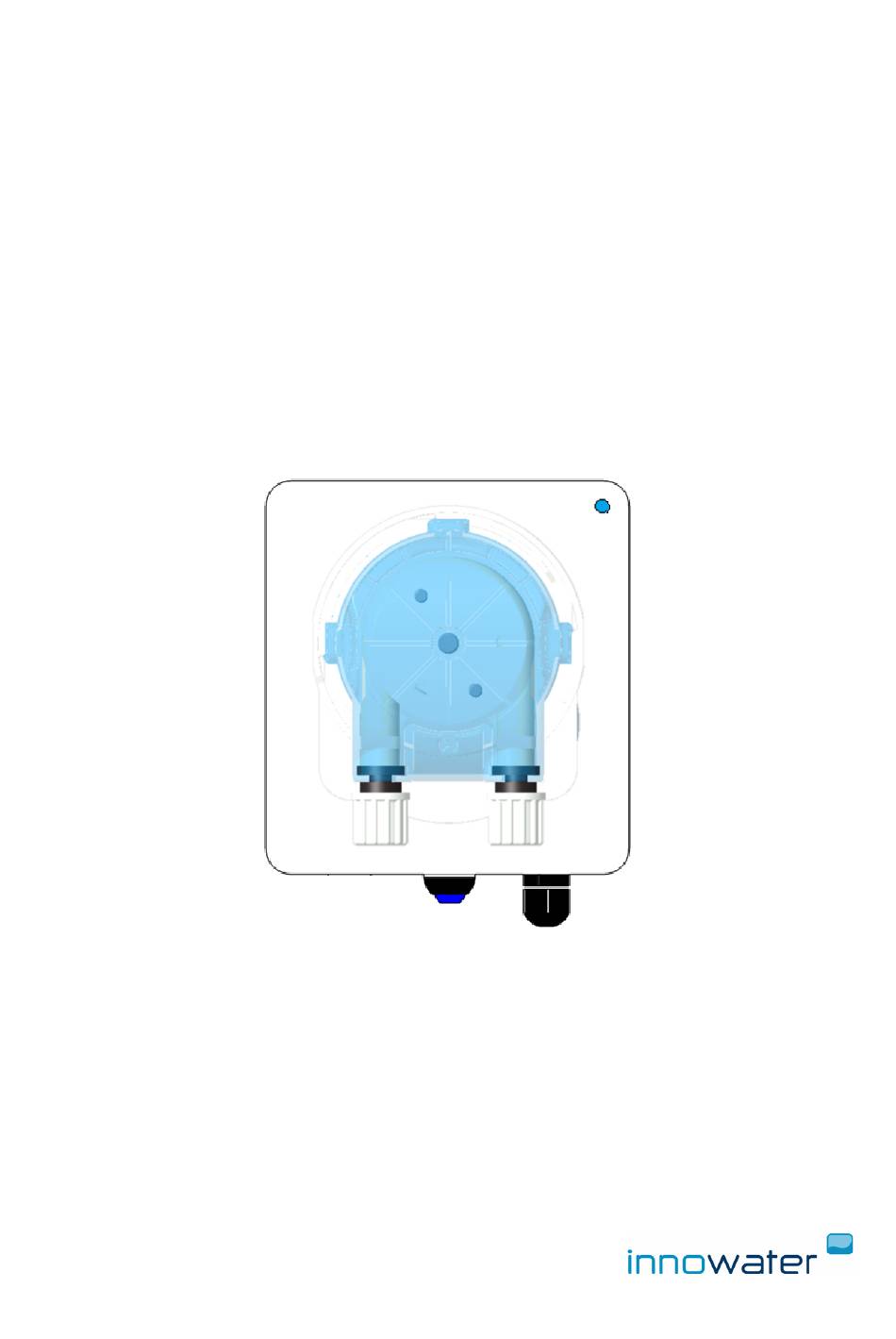

    6. 1. Connection for suction tube 2. Connection for injection tube 3. Priming push button 4. Main 230 VAC cable 5. Data reception blue LED indicator pH Wireless Option...
  • Page 5: Installation

    Acid container. We strongly recommend you not to place the acid tank in the same room than the filter and the salt chlorinator. The fumes that emanate from it will quickly destroy any metallic element and electronic equipment. pH Wireless Option...
  • Page 6: Operating

    (5) not flashing, it will stop dosing after a few seconds. The manual priming of the pump (4) continues to be enabled even if the pump does not receive data from the chlorinator. See point 6 for channel configuration. pH Wireless Option...
  • Page 7: Configuration And Calibration

    2 Set points. pH > The acid dosage is determined at each moment by the two established set points (screen on the right). The following example shows the calculation of the dosage (blue trace) based on these points: pH Wireless Option...
  • Page 8: Ph4 Calibration

    = 7,2 As each pool requires more or less acid and is more or less reactive to dosing, at the beginning at least, you may need to correct the set points several times. 3. pH4 calibration pH Wireless Option...
  • Page 9: Ph7 Calibration

    4 Calib. pH7 and repeat the above process but with the buffer solution pH7. 5. Factory calibration pH Config Factory calib.? 5 Factory calib. yes:OK exit:MENU Using this function, you can reset the default value of a calibration that corresponds pH Wireless Option...
  • Page 10: Radio Output

    NOTE: If the pump priming button is not held down when you press OK, the pump will not change channels and will stop receiving data. pH Wireless Option...
  • Page 11: Initial Dosage Delay

    If the function is activated and the maximum set dosing time is reached, the following screen will appear and dosing will be interrupted: DOS. pH EXCEEDED Resume? = OK Press OK to continue. The dosing counter will reset and dosing will continue normally. pH Wireless Option...
