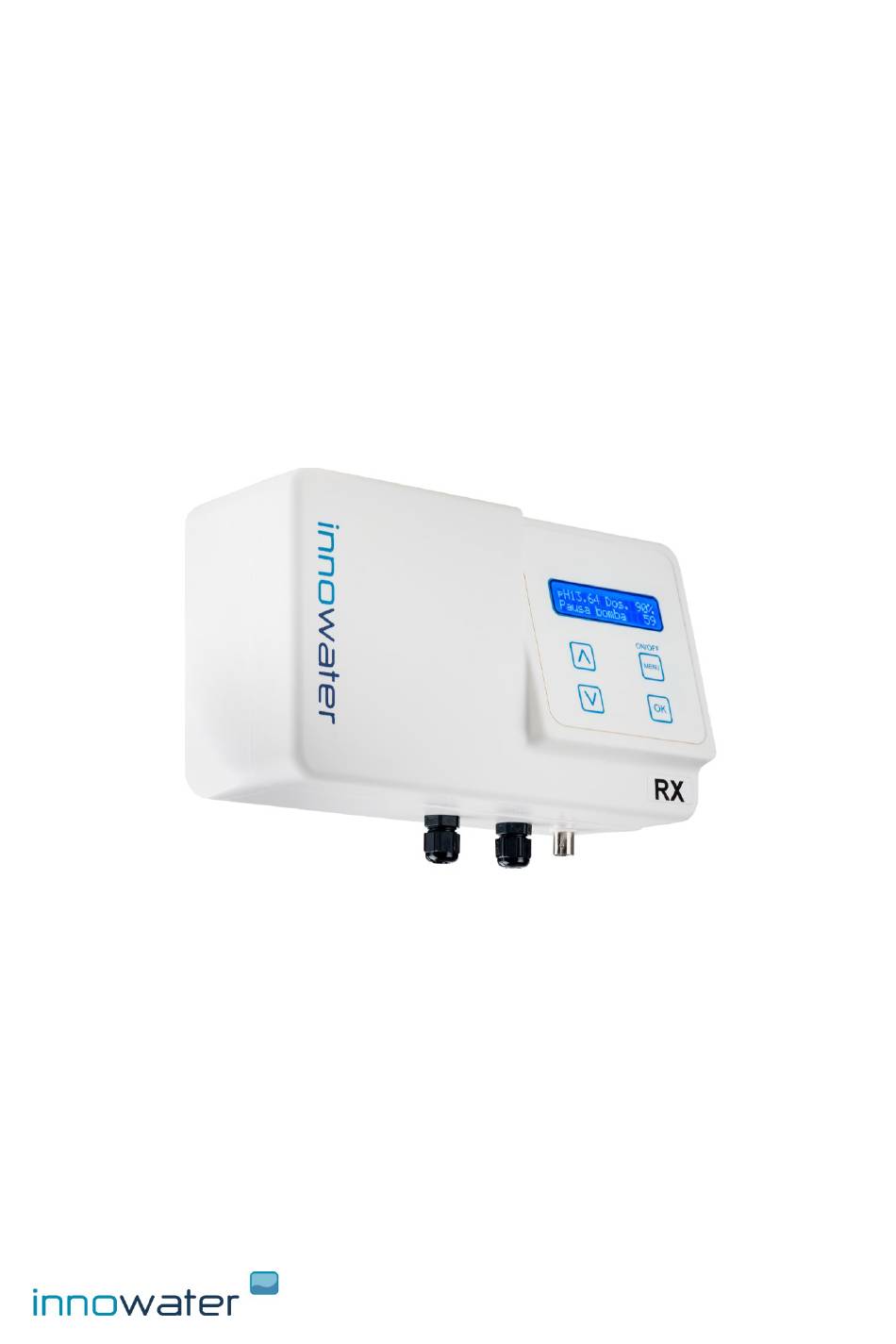

  • Page 1 MANUAL Innowater RX English version Rev.06/19...
  • Page 3 During the installation phase, check that the voltage of the power supply corresponds with the voltage indicated on the side of the appliance Innowater Tratamientos Integrales del Agua S.L. will not be held liable for the use of this device with inappropriate products.
  • Page 4 3.3. Start up. ON/OFF............. 5 4. ORP configuration ........... 6 4.1. Setpoints ..............6 4.2. ON/OFF mode (with chlorinator) ........ 8 4.3. Probe calibration ............. 9 4.4. Factory calibration ..........10 5. Language .............. 10 6. Contrast LCD ............10 INNOWATER PHRH...

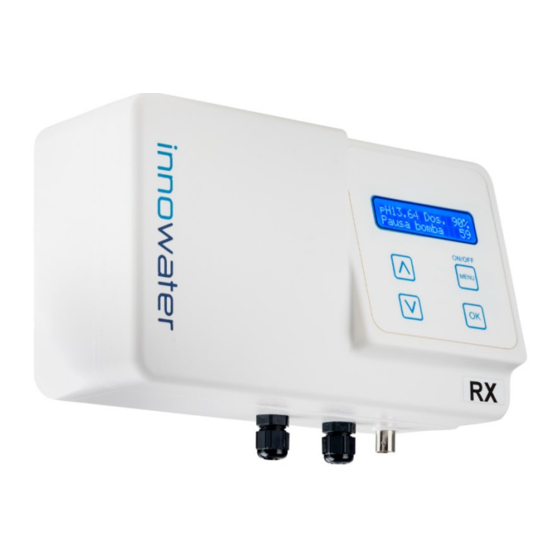

  • Page 5 1. DESCRIPTION The Innowater RX allows you to correct the ORP level of your pool. The device monitors the ORP continuously by means of its ORP sensor and then, when needed, sends a signal (dry contact) to activate an oxidant doser/producer device.
  • Page 6: Installation

    Connect the cable to the external control input of the chlorinator or use it to activate a relay or other device. If you use the cable to switch a voltage, do not exceed the following values : Maximum voltage 230 VAC Maximum current INNOWATER PHRH...
  • Page 7 3. START UP 3.1 Main screen 560mV 100% Output Main screen shows the following info: (1) ORP measure (2) ORP dosage percentage, calculated from the setpoints (3) ORP output status 3.2 Start up— ON/OFF To turn on the equipment press ON/OFF (MENU) for two seconds. Main screen will appear.
  • Page 8 To enter press OK, it will show the following screen: A: RH 650mV B: RH 700mV The calculation of the production is made by setting of two setpoints, A and B, and the % of production that is desired for each of those points. INNOWATER PHRH...
  • Page 9 A: RH 650mV B: RH 700mV - When the ORP is below the lower set point, the signal will work at its maximum frequency. - When the ORP is between both points, the chlorinator will send a proportional signal defined by both points. For example, in the case of the figure, if the ORP is at 675 mV the pump will dose at 50%.
  • Page 10 - When ORP is below the value, output will remain ON (closed contact) - If ORP is above the value, output will remain OFF (open contact) 4.2.1 To work with a domestic INNOWATER salt water chlorinator, you have to set the following parameters in the chlorinator: Enter “Control Ext”...
  • Page 11 In “3 Production”, set 0%: MENU CONTROL EXT Production if 3 Production active This way, when chlorinator receives the order to produce chlorine, it will do it at the percentage chosen from the main screen. If the order is not to produce, it will remain at 0%.
  • Page 12 MAIN MENU LCD Contrast 3 LCD Contrast - ■ ■ ■ ■ Press OK key to enter and scroll with the help of the arrows to choose the desired LCD contrast. Press OK key to confirm and Exit. INNOWATER PHRH...
