SECO-LARM E-941SA-80Q Installation Manual

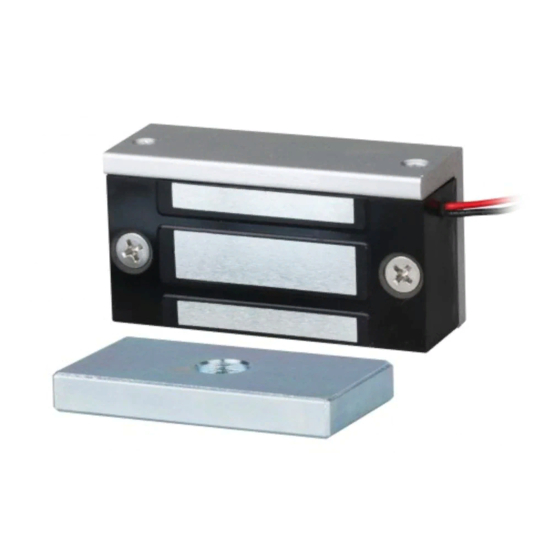

80-lb Miniature Electromagnetic Lock
E-941SA-80Q
Installation Manual
5024193
Conforms to
UL Std. 294
When power is applied to an electromagnetic lock, it activates a built-in electromagnet that attracts
a door-mounted steel armature plate, preventing the door from opening. When power is removed,
the electromagnet releases the armature, allowing the door to open. SECO-LARM offers a full line
of electromagnetic locks with holding forces up to 1,500-lb for single- and double-doors and gates.
 For spaces where small size is required, including cabinets, drawers, etc.
 Miniature size, 2
3
 Low current draw
 12~24 VDC operation
 No residual magnetism
 MOV surge protection
 Complete mounting hardware for typical installations
/ "x1 / "x / " (70x31x19 mm)
1 3
4 4 4
