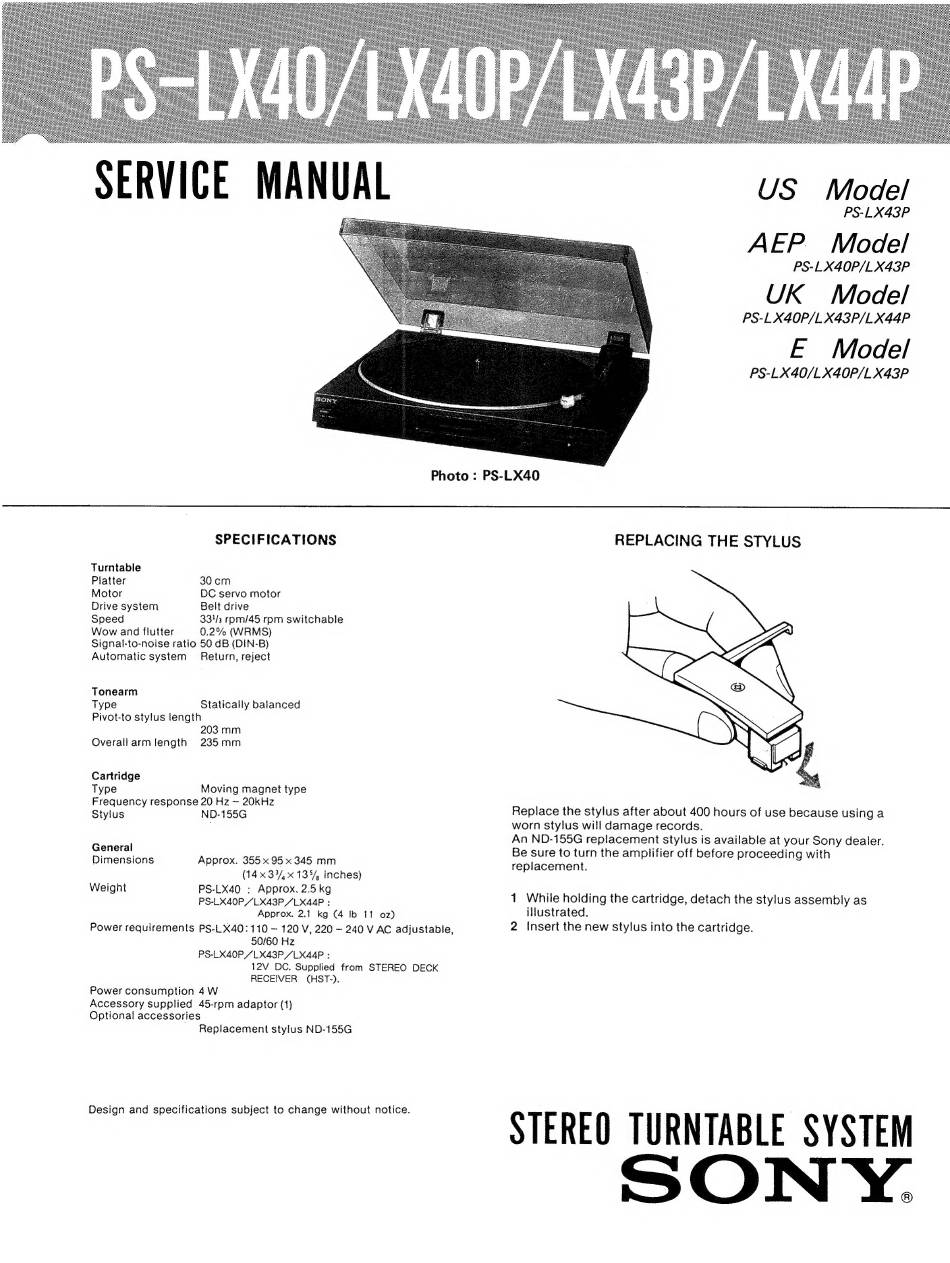

US
Model
PS-LX43P
AEP.
Madel
PS-LX40P/LX43P
UK
Model
PS-LX40P/LX43P/LX44P
E
Model
PS-LX40/LX40P/LX43P

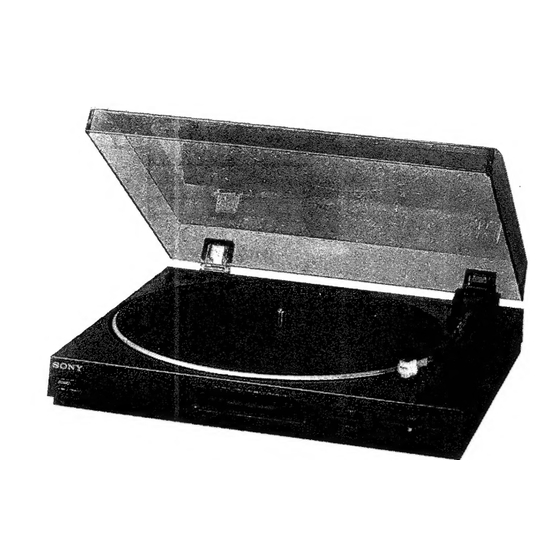

Photo : PS-LX40
SPECIFICATIONS
Turntable
Platter
30 cm
Motor
DC servo motor
Drive system
Belt drive
Speed
3314/3 rom/45 rom switchable
Wow and flutter
0.2% (WRMS)
Signal-to-noise ratio 50 dB (DIN-B)
Automatic system
Return, reject
Tonearm
Type
Statically balanced
Pivot-to stylus length
203 mm
Overallarm length
235mm
Cartridge
Type
Moving magnet type
Frequency response 20 Hz — 20kHz
Stylus
ND-155G
General
Dimensions
Approx. 355 x 95 x 345 mm
(14x3¥%,x« 13, inches)
Weight
PS-LX40
: Approx. 2.5 kg
PS-LX40P/LX43P/LX44P :
Approx. 2.1
kg (4 Ib 11 02)
Power requirements PS-LX40:110 — 120 V, 220 —- 240 V AC adjustable,
50/60 Hz
PS-LX40P/LX43P/LX44P
:
12V
DC. Supplied
from
STEREO
DECK
RECEIVER
(HST-).
Power consumption 4W
Accessory supplied
45-rpm adaptor (1)
Optional accessories
Replacement stylus ND-155G
Design and specifications subject to change without notice.
REPLACING THE STYLUS
Replace the stylus after about 400 hours of use because using a
worn stylus will damage records.
An ND-155G replacement stylus is available at your Sony dealer.
Be sure to turn the amplifier off before proceeding with
replacement.
1 While holding the cartridge, detach the stylus assembly as
illustrated.
2 Insert the new stylus into the cartridge.
