ACCUMULATION TANKS
PS 200, PS 300, PS 500, PS 650, PS 800, PS 1000,
PS 1500, PS 2000, PS 3000, PS 4000, PS 5000
EN
v. 1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS 200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Regulus PS 200

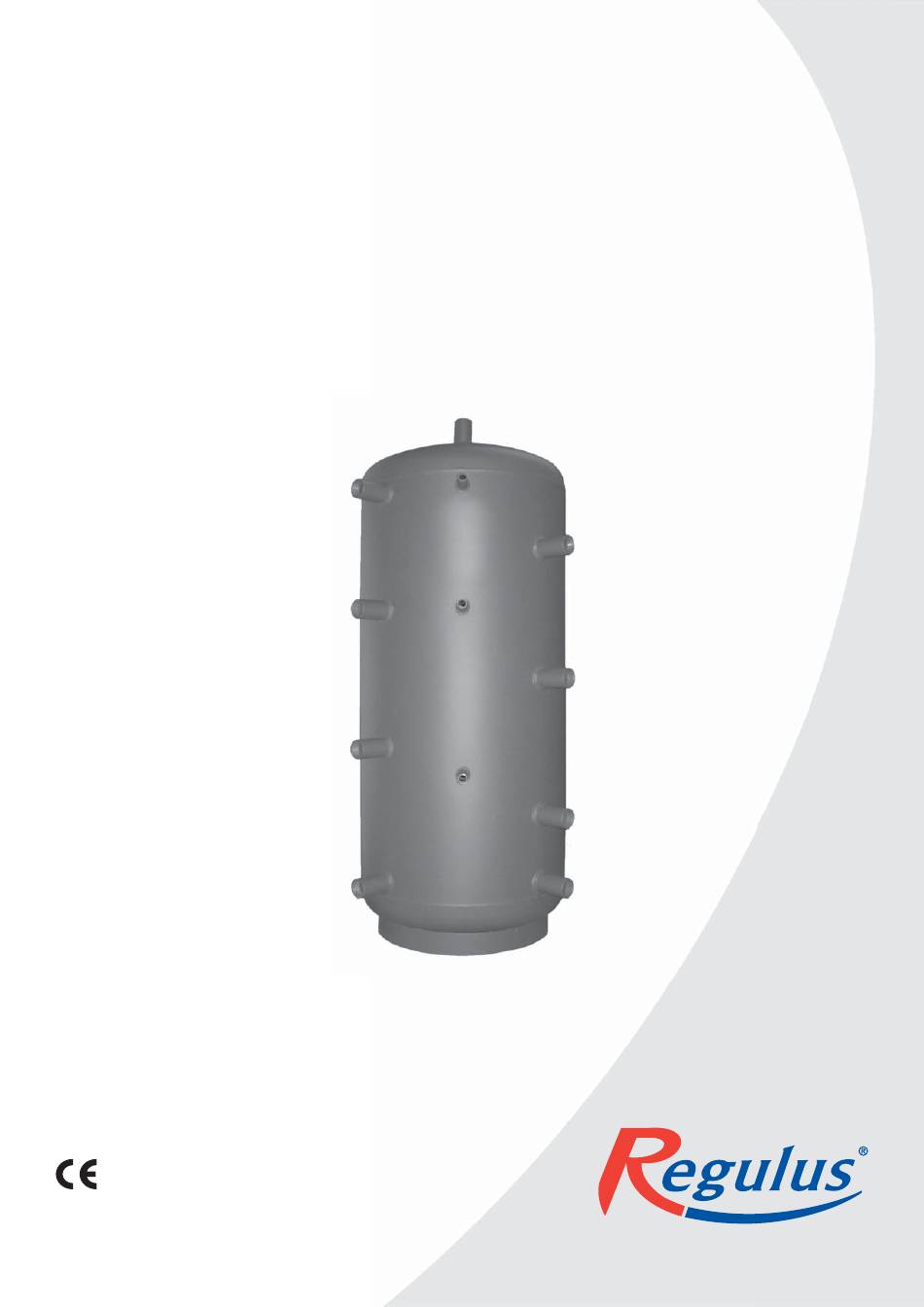

  • Page 1 Owners Manual ACCUMULATION TANKS PS 200, PS 300, PS 500, PS 650, PS 800, PS 1000, PS 1500, PS 2000, PS 3000, PS 4000, PS 5000 v. 1.1...
  • Page 2: Table Of Contents

    CONTENTS 1. Description ..............................1.1 Models ............................... 1.2 Tank protection ..........................1.3 Thermal insulation ..........................1.4 Connection points on the tank ......................1.5 Packing .............................. 2. General Information ............................. 3. Technical Data and Dimensions of PS Models ..................4. Operation............................... 5.
  • Page 3: Description

    1.4 Connection points on the tank 8x sleeve with lateral connection in a 90° sector (PS 200 6x sleeve), G 6/4“ inner thread 1x sleeve with upwards connection, G 6/4“ inner thread 3x sleeve for installation of lateral sensor sheaths (PS 200 4x sleeve), G 1/2“ inner thread 1.5 Packing...
  • Page 4: Technical Data And Dimensions Of Ps Models

    3. Technical Data and Dimensions of PS Line of Tanks G 6/4“ G 1/2“ G 6/4“ G 6/4“ G 6/4“ G 1/2“ G 6/4“ G 6/4“ G 1/2“ G 6/4“ G 6/4“ G 6/4“ ø N ø O ø P Tank code ............
  • Page 5: Operation

    4. Operation In the accumulation tank heating water is heated up from several heat sources like various types of hot-water boilers, renewable energy sources (heat pumps, solar collectors), or electric heating rods. The accumulation tank shall be connected to a heat source through G 6/4” threaded fittings. Should the tank be connected to a solar system, this must be done via a heat exchanger because solar systems are not filled with heating water.
  • Page 6 Example II. A gas boiler and hot water fireplace. gas boiler hot water cold water Example III. A heat pump and an el. heating rod. hot water cold water...
  • Page 7: Installation And Commissioning

    6. Installation and Commissioning Installation must meet valid rules and may be done only by qualified staff. Defects caused by improper installation, use or handling are not covered by warranty. After the tank is installed and connected to an existing heating system, it is recommended to clean the entire heating system using a suitable cleaning agent, e.g.
  • Page 8: Installing Insulation On The Tank

    7. Installing Insulation on the Tank Instructions Product description Thermal insulation of soft polyurethane foam with a zipped PVC layer, or melamine or polystyrene boards with a batten and hard PS sheet, with a lid and a set of rosettes. Warning Insulation installation shall be done in two or three persons, depending on its size.
  • Page 9         Pictures showing how to mount soft-foam insulation with a PVC sheet on a storage water heater.
  • Page 10: Maintenance

    8. Maintenance If the tank is fitted with a heating element, disconnect it from the mains first. Clean the exterior of the tank with a soft cloth and a mild detergent. Never use abrasive cleaners or solvents. Check all connections for leaks. 9.
  • Page 11 10.3 Additives for heating systems MR-501/F Protective liquid made of organic compounds, intended for use in heating and cooling systems, solar collectors and heat pumps. It prevents corrosion of metals (iron, copper, aluminum etc.) and their alloys by creating a film on the surface that is in touch with the heating liquid.
  • Page 12 Stamp print, signature of the salesman and address of the shop: Date of a professional installation by plumber: ........Stamp print, signature and address of the authorized person: 03/2012 REGULUS spol. s r.o. Do Koutů 1897/3 http://www.regulus.eu CZ-143 00 Praha 4...
