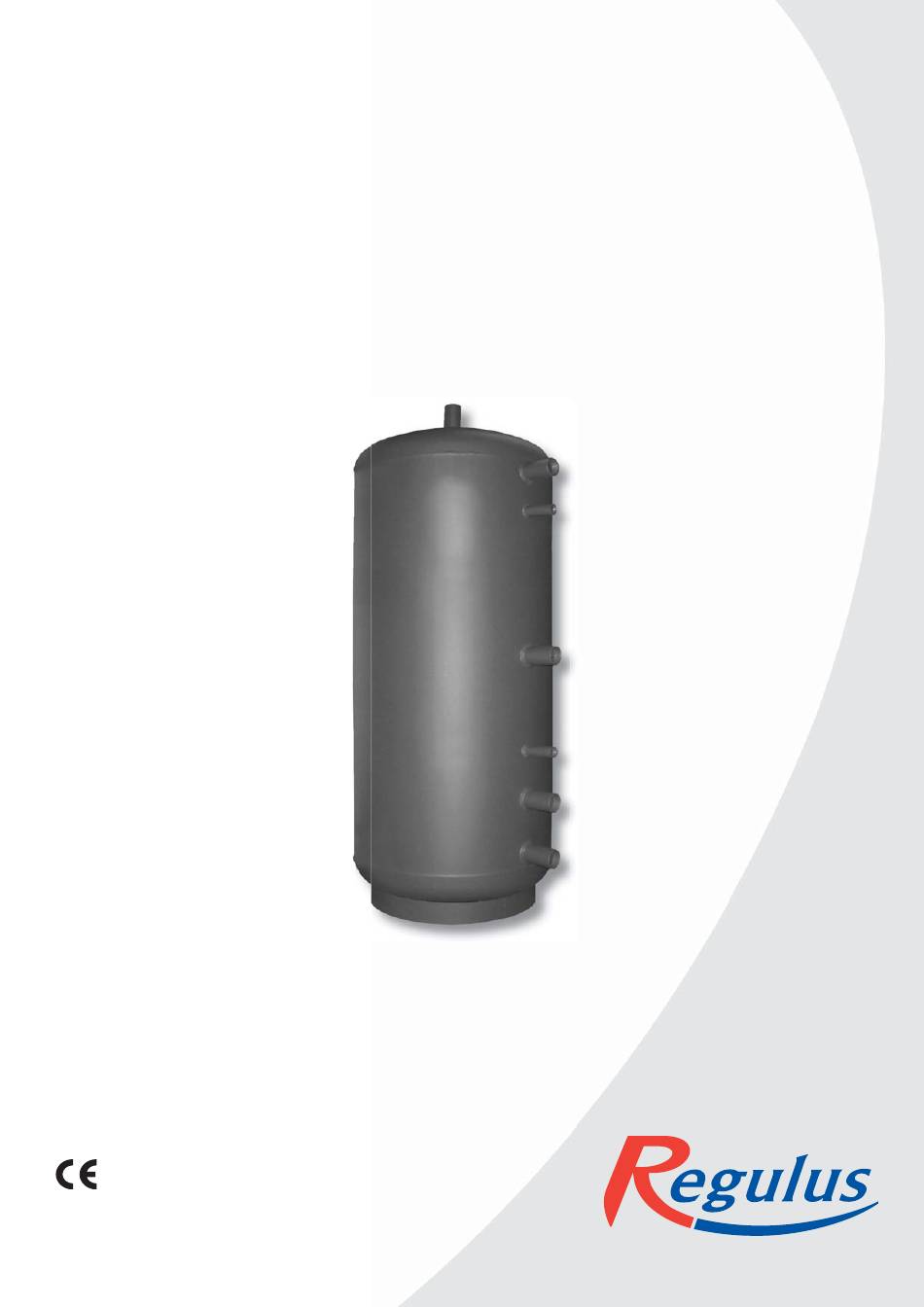

  • Page 1 Installation and Operation Instructions ACCUMULATION TANKS PS 500 E, PS 750 E and 1100 E verze 1.3...
  • Page 2: Table Of Contents

    CONTENTS 1 Description ..............................1.1 Models ............................... 1.2 Tank protection ..........................1.3 Thermal insulation ..........................1.4 Connection points on the tank ......................1.5 Packing............................... 2 General Information ............................3 Technical Data and Dimensions ........................4 Operation................................ 5 Typical Installation Examples ........................6 Installation and Commissioning ........................
  • Page 3: Description

    1 - Description PS E Accumulation Tanks are intended for accumulation and subsequent distribution of thermal energy from solid-fuel fired boilers, heat pumps, solar collectors, electric boilers etc. No heating coils can be installed into these tanks, just an el. heating rod. Heating rods of 2-9 kW output can be installed directly into the 6/4” sleeves that are power supplied either with 230V or 3x230V/400V.
  • Page 4: Technical Data And Dimensions

    3 - Technical Data and Dimensions Regulus PS 500 E Accumulation Tank code: 12118 Insulation code ............12119 Tank total volume ............473 l Max. working temperature .......... 95 °C Max. working pressure ..........4 bar Empty weight ............... 67 kg Tipping height without insulation .......
  • Page 5 Regulus PS 750 E Accumulation Tank code: 11044 Insulation code ............11368 Tank total volume ............756 l Max. working temperature .......... 95 °C Max. working pressure ..........4 bar Empty weight ..............90 kg Tipping height without insulation ....... 1990 mm...
  • Page 6 Regulus PS 1100 E Accumulation Tank code: 9039 Insulation code ............11777 Tank total volume ............1038 l Max. working temperature .......... 95 °C Max. working pressure ..........4 bar Empty weight ..............124 kg Tipping height without insulation ....... 2120 mm...
  • Page 7: Operation

    4 - Operation In the accumulation tank heating water is heated up from several heat sources like various types of hot-water boilers, renewable energy sources (heat pumps, solar collectors), or electric heating rods. The accumulation tank shall be connected to a heat source through G 6/4” threaded fittings. Should the tank be co- nnected to a solar system, this must be done via a heat exchanger because solar systems are not filled with heating water.
  • Page 8: Installation And Commissioning

    After the tank is installed and connected to an existing heating system, it is recommended to clean the entire heating system using a suitable cleaning agent, e.g. MR-501/R or some other supplied by Regulus. Anti-corrosion protective liquid should be also used, e.g. MR-501/F or F1.
  • Page 9: Installing Insulation On The Tank

    7 - Installing Insulation on the Tank Instructions Product description Thermal insulation of soft polyurethane foam with a zipped PVC layer. Warning Insulation installation shall be done in two or three persons, depending on its size. The zippered soft-foam insulation must not be installed at temperatures below 20°C.
  • Page 10         Pictures showing how to mount soft-foam insulation with a PVC sheet on a storage tank. │...
  • Page 11: Maintenance

    8 - Maintenance If the tank is fitted with a heating element, disconnect it from the mains first. Clean the exterior of the tank with a soft cloth and a mild detergent. Never use abrasive cleaners or solvents. Check all connections for leaks. 9 - Disposal Packing shall be disposed of in compliance with the valid rules.
  • Page 12 03/2014 REGULUS spol. s r.o. Do Koutů 1897/3 http://www.regulus.eu 143 00 Praha 4 E-mail: sales@regulus.cz CZECH REPUBLIC...
