Icom IC-705 Installation Manual page 2

Assembly Instructions
Please read and review all of the instructions before starting the assembly of your frame.

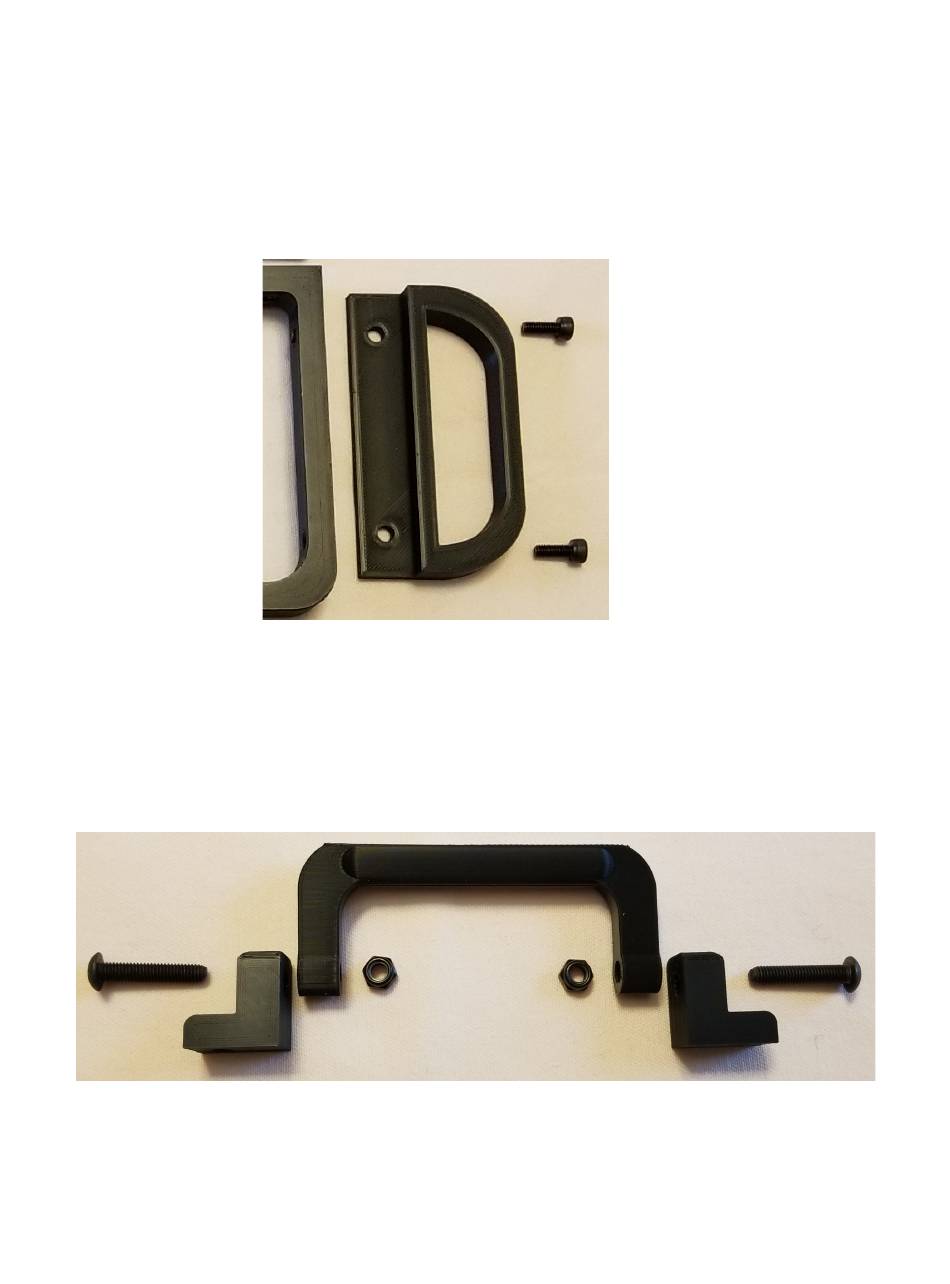

1. Assemble the side rails onto the frame, using 4 M4 x 10mm socket head screws. The inside
edge of the side rails should line up with the inside edge of the frame. Tighten these screws
securely.
2. Assemble the handle and the two handle brackets using the 2 M5 x 25mm socket head screws,
and the nylon lock nuts. The screws go through the thicker part of the bracket. They are a tight
fit, so you may need to twist the screw through the bracket to get it to go all the way. Tighten
the lock nuts until they engage, but don't over tighten. It may appear that the handle motion is
stiff, but this will loosen a bit with use.
