Garrett Vortex VX5 Quick Start Manual page 3

1
2
3
4
5
6

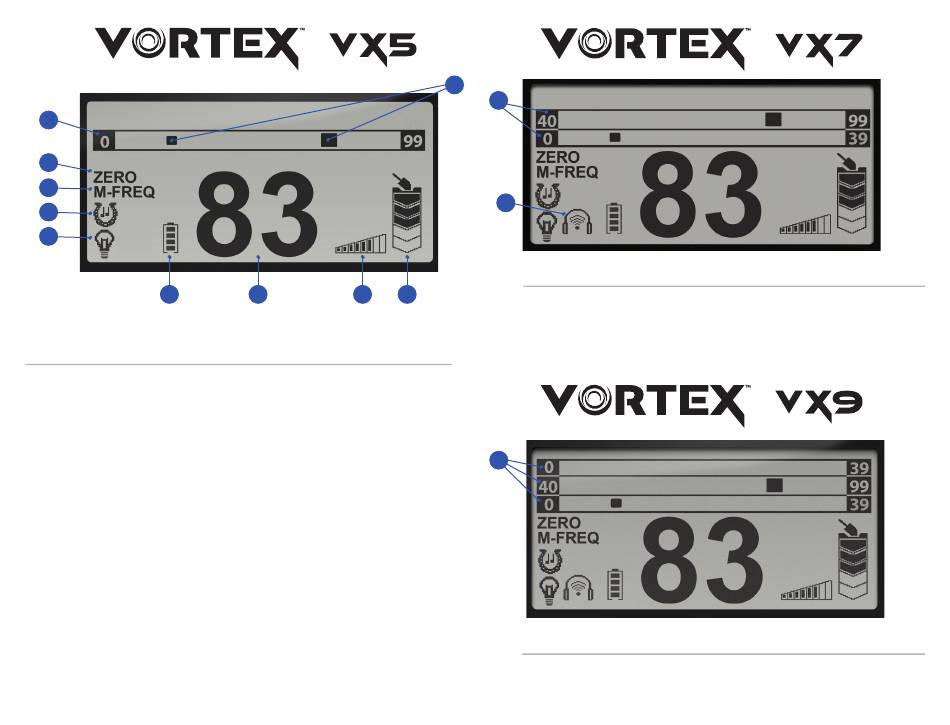

LCD/DISPLAY ELEMENTS
1. Target Scale—Single-tier Target ID scale indicates both ferrous and non-ferrous targets,
with ferrous targets indicating toward the left, low conductivity in the middle, and high
conductivity toward the right.
2. Search Mode—Displays the current Search Mode (e.g., Zero, Standard, US Coins, etc.).
3. Frequency—Displays the current Frequency setting (e.g., 13 kHz, Multi-Freq., Multi-Salt).
4. Iron Audio—Indicates Iron Audio feature is in use when this icon is displayed.
5. Backlight—Indicates LCD backlight feature is in use when displayed.
6. Battery Level—Shows status of battery life (25% per segment).
7. Digital Target ID—Provides a value from 0 to 99 to identify targets more precisely.
8. Sensitivity—Indicates current Sensitivity setting.
9. Target Depth—Shows depth of coin-sized target in 2" (5cm) increments. Targets larger
than a coin may display shallower than actual depth. Targets smaller than a coin may
display deeper than actual depth.
10. Target ID Cursor—Indicates Target ID of detected target. Complex targets may register
more than one Target ID cursor. For adjacent targets, Vortex is capable of presenting more
than one Target ID on the screen simultaneously.
7 8 9
10
1
2
LCD/DISPLAY ELEMENTS
1. Target Scale—Two-tier Target ID scale indicates different metal types. The top
scale indicates non-ferrous (conductive) targets. The lower scale indicates ferrous
targets. For other LCD elements and more on Target Scale, refer to VX5 key shown to left.
2. Wireless Headphones—Icon flashes while attempting to pair headphones. Icon is
solid when unit is paired with headphones.
1
LCD/DISPLAY ELEMENTS
1. Target Scale—Three-tier Target ID scale indicates different metal types. The top
scale indicates "tricky" or complex ferrous (iron) items. The center scale indicates
non-ferrous (conductive) targets. The lower scale indicates common ferrous targets.
For other LCD elements, refer to VX5 key shown to left.
