User's Manual
KODAK Professional

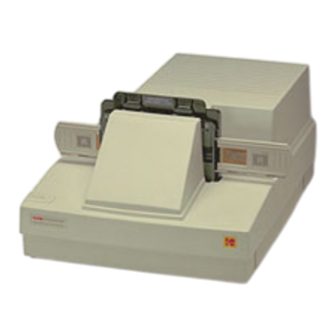

RFS 3570 Film Scanner
© Eastman Kodak Company, 1997.
This manual and the accompanying software are protected by United States and international
copyright laws. You may make one backup copy of the enclosed software and one copy of this
manual. Do not make additional copies of the software or copies of the manual or electronically
transmit them in any form whatsoever, in whole or in part, without the prior written permission
of Eastman Kodak Company.

Advertisement

Table of Contents
loading

Related Manuals for Kodak RFS 3570

Summary of Contents for Kodak RFS 3570

  • Page 1 This manual and the accompanying software are protected by United States and international copyright laws. You may make one backup copy of the enclosed software and one copy of this manual. Do not make additional copies of the software or copies of the manual or electronically transmit them in any form whatsoever, in whole or in part, without the prior written permission of Eastman Kodak Company.
  • Page 2 ......

  • Page 3: Important Safeguards And Precautions

    ......Important Safeguards and Precautions WARNING: To prevent fire or shock hazard, do not expose unit to rain or moisture. CAUTION...
  • Page 4 WARNING: Water and Moisture — Do not use the equipment near water — for example, near a sink, or in a wet room or basement, etc. Do not expose the unit to rain or moisture and do not immerse the equipment in water or other liquids;...
  • Page 5 © Power-Cord Protection — Route power-supply cords so that they are not likely to be walked on or pinched by items placed on or against them; pay particular attention to cords at plugs, receptacles, and the point where they leave the unit.

  • Page 6: Electromagnetic Emissions

    Electromagnetic Emissions This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer- ence when the equipment is operated in a commercial environment.
  • Page 7 édicté par le Ministère des Communications du Canada. This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the radio interference regula-...

  • Page 8: Technical Assistance

    If you are unable to find answers from this manual, contact your dealer. © If you are a customer in the United States and you are unable to find answers to your questions using this manual or from you dealer, call Kodak at 1-800-CD-KODAK.

  • Page 9: Table Of Contents

    Connecting the Scanner to a Power Source 3-2 Connecting the Scanner to Your Computer 3-3 If No External SCSI Devices Are Connected 3-5 If External SCSI Devices Are Connected 3-9 Setting the Scanner SCSI Identification Number 3-19 Installing the KODAK Driver for Adobe Photoshop Software (Macintosh) 3-21...
  • Page 10 Loading 35 mm Film and Slide Holders into the Scanner 4-4 Loading Film Sizes Other Than 35 mm 4-8 Loading Film into the Film Holder 4-8 Loading Film Holders (Other Than 35 mm Sizes) into the Scanner 4-10 Using the KODAK Driver for Adobe Photoshop Software — Macintosh Computer 5-1...
  • Page 11 Optional Printers 6-4 Installation (Hardware and Software) — PC 7-1 Installing the Scanner Hardware 7-2 Connecting the Scanner to a Power Source 7-2 Installing a SCSI Host Adapter 7-3 For Qualified Technical Personnel Only Connecting the Scanner to Your Computer 7-4...
  • Page 12 Loading Film Sizes Other Than 35 mm 8-8 Loading Film into the Film Holder 8-8 Loading Film Holders (Other Than 35 mm Sizes) into the Scanner 8-10 Using KODAK Driver with Windows Applications — PC Using a KODAK Driver for TWAIN Compliant PC Applications 9-3 Adobe Photoshop 2.5 and 3.0 for Windows 9-4...
  • Page 13 Appendix F — Updating the KODAK Driver Appendix G — Repacking Instructions G-1 Appendix H — Problem Report Form H-1 Appendix I — Optional Equipment & Spare Parts List I-1 Appendix J — Specifications J-1 Appendix K — Glossary K-1...

  • Page 15: Introduction

    Introduction The KODAK Professional RFS 3570 Film Scanner combines high resolu- tion, high speed, and scanning of a variety of film formats from 35 mm to 70 mm (RFS “3570”), in one easy-to-operate desktop scanner. Once you’ve scanned the image (color negative, color transparency, or black-and-white negative) you can view it as a color or monochrome image.
  • Page 16 Adaptec, Inc. running EZ-SCSI 4.01 or later (PC only). If your computer has a video card that supports 24-bit color, the image is displayed in full color (16.8 million colors) on your monitor. If your video card supports only 8-bit color, the image is displayed in 256 dithered colors.
  • Page 17 You can then edit images and save them as files on your computer hard disk. NOTE: You may be able to use the Scanner on other computer platforms or with additional operating systems, using drivers prepared by companies other than Kodak, or by developing your own driver.

  • Page 19: Before You Begin - Macintosh Computer

    Macintosh Computer NOTE: Before you continue, complete and submit the enclosed Warranty Regis- tration card. You should also read “Appendix A — Software License Agreement” and “Appendix B — Warranty.” Check the following lists to ensure that you have the appropriate hardware and software.

  • Page 20: Required Hardware

    NOTE: Adobe Photoshop 3.0, when run on a Power Macintosh, needs a mini- mum of 16 MB of RAM (including at least 11 MB of RAM in addition to the memory used by the operating system), and recommends 24 MB of RAM.

  • Page 21: Required Software

    Apple System software 7.0, 7.1, 7.1.2, or 7.5 to 7.5.3 and 32-bit QuickDraw. Consult your Apple manuals for installation instructions if this software is not already installed. (If you are using System 7.0 or System 7.0.1 you should use the System Tuner version 1.1.1, or consider upgrading to System 7.1 or 7.5;...

  • Page 22: Optional Printers

    ......Optional Printers Suggested printers for use with the scanner appear in “Appendix I — Optional Equipment & Spare Parts List.” In the United States, contact Kodak at 1-800-CD-KODAK for detailed information on printer options and accessories and to obtain ordering catalog numbers;...

  • Page 23: Installation

    ....... . Installation (Hardware and Software) — Macintosh Computer Follow the steps in this section to — © Install the Scanner. ©...

  • Page 24: Installing The Scanner Hardware

    Scanner on either side of your Macintosh computer. (You should retain the original shipping carton and packing materials.) 2. Press the O end of the power switch on the back of the Scanner to be sure that the Scanner power is off.

  • Page 25: Connecting The Scanner To Your Computer

    Scanner — a non-terminated SCSI device — to your PowerBook. You will probably need to supply a PowerBook HDI-30-pin to 50-pin SCSI cable to complete this connection. Be certain that the cable you obtain is for connecting a PowerBook computer to a SCSI device, not for connecting a PowerBook com- puter to a desktop computer.
  • Page 26 ......2. Find the SCSI port, also called a SCSI connector, on the back of the computer (not the back of the Scanner), and determine whether or not a device (for example a disk drive) is attached.

  • Page 27: If No External Scsi Devices Are Connected

    “If External SCSI Devices Are Connected” later in this chapter. CAUTION: Whenever connecting or disconnecting SCSI cables, be sure power is turned off on all devices in the SCSI chain, including the computer and the Scanner (turn off the computer first).
  • Page 28 ......2. Attach the 25-pin SCSI connector of the cable to the SCSI port on the back of the Macintosh computer.
  • Page 29 ......3. Attach the other end of the cable to either of the identical SCSI ports on the back of the Scanner.
  • Page 30 SCSI port on the Scanner, seat the terminator firmly, and pinch the thin wire clamps shut. Terminator NOTE: If you are using a Macintosh IIfx computer, use the black terminator supplied with that computer; it is not interchangeable with the terminator supplied with the Scanner.

  • Page 31: If External Scsi Devices Are Connected

    Multiple SCSI devices are connected to the Macintosh computer in a chain. The following steps will help you determine where you should place the Scanner in that chain — either at the end of the chain, or in the middle of the chain.
  • Page 32 ......2. Locate the two identical SCSI ports and thin wire clamps on the back of the Scanner.
  • Page 33 A. Continue on the next page if none of the connected devices is terminated internally. B. Or continue at “Follow these steps if one of the connected devices is terminated internally”...
  • Page 34 (and any external terminator found in the SCSI chain has been removed): NOTE: In the following steps, you will place the Scanner at the end of the chain of connected devices. (You can place the Scanner anywhere in the chain as long as you add a terminator to the last device in the chain.)
  • Page 35 ......2. Attach the other end of the cable to either of the identical SCSI ports on the back of the Scanner.
  • Page 36 SCSI port on the Scanner, seat the terminator firmly, and pinch the wire clamps shut. NOTE: If you are using a Macintosh IIfx Computer, use the black terminator supplied with the computer; it is not interchangeable with the terminator supplied with the Scanner.
  • Page 37 Follow these steps if one of the connected devices is terminated internally: NOTE: In the following steps, you will place the Scanner in the chain just before the terminated device. (You can place the Scanner anywhere in the chain be- tween the terminated device and the Macintosh Computer.)
  • Page 38 Do not disconnect the other end of the cable. Back of Macintosh Computer Internally Terminated Device Step 2 3. Position the Scanner so that you can connect it in the chain before the terminated device. Back of Macintosh Computer Back of Film Scanner Internally Terminated...
  • Page 39 ......4. Attach the end of the cable you just disconnected to either of the identical SCSI ports on the back of the Scanner.
  • Page 40 Kodak. Refer to “Appendix I — Optional Equipment & Spare Parts List.” This cable is also widely available from computer retailers; if you obtain a cable from one of these sources, be certain to obtain a high quality cable with a continuous EMI shield over the cable and connectors.

  • Page 41: Setting The Scanner Scsi Identification Number

    Follow the steps below to set the SCSI identification (ID) number for the Scanner. You set the number by gently pushing buttons at the top and bottom of the SCSI ID switch on the back of the Scanner as described in this section.
  • Page 42 Apple Computer, Inc. Assign high ID numbers to devices used most frequently. NOTE: Make sure the power to the Scanner is off if you change its ID number at a later time. ©...

  • Page 43: Installing The Kodak Driver For Adobe Photoshop Software (Macintosh)

    SHOP Software for use with KODAK Professional RFS 3570 Film Scanner.” 5. If the diskette is not locked, lock it by sliding the tab on the back to reveal a small hole. This will prevent the contents of the disk from being changed inadvertently, and may aid in preventing the spread of computer viruses to this diskette.
  • Page 44 NOTE: If the PS PREFS file does not exist, you must run Photoshop (once) to create it. If you do not place the KODAK RFS 3570 and RFS3570.BIN icons into the same folder as PS PREFS, you will not be able to acquire images from the Scanner.

  • Page 45: Loading The Film And Slide Holders - Macintosh Computer

    Holders — Macintosh Computer NOTE: This chapter is identical with Chapter 8 (in the PC Platform portion of this manual). It is repeated in both places for your convenience. This chapter describes how to use the film and slide holders with the Scanner.

  • Page 46: Loading 35 Mm Film And Slides

    Loading 35 mm Film into the 35 mm Film Holder Up to six frames from a strip of 35 mm film of any length can be posi- tioned for scanning at one time. Refer to the diagram below to load film into the 35 mm film holder.

  • Page 47: Loading 35 Mm Slides Into The Slide Holder

    ......4. Tuck the lower edge of the film under the tabs that run along the hinge.

  • Page 48: Loading 35 Mm Film And Slide Holders Into The Scanner

    ......Loading 35 mm Film and Slide Holders into the Scanner To load a 35 mm film or slide holder into the Scanner: 1. If the single-frame holder adapter is in the Scanner, remove it. Single-frame Holder Adapter .
  • Page 49 ......2. If the 35 mm multi-frame holder adapter is not in the Scanner, put it in place in the Scanner in the orientation shown.
  • Page 50 3. Orient the film or slide holder as follows: Film Holder: Make sure that the two orientation labels face you, that the film images read in the direction of the letter “R,” and that the “R” is right-side up. In this position, the film will be oriented correctly.
  • Page 51 NOTE: Since the slide holder is thicker than the film holder, you may need to use more force to move the slide holder from side to side than you will need for the film holder. KODAK Professional RFS 3570 F ilm Scanner 5.

  • Page 52: Loading Film Sizes Other Than 35 Mm

    Loading Film Sizes Other Than 35 mm Loading Film into the Film Holder Follow the steps below to load film sizes other than 35 mm into their film holders. 1. Select the film holder to match the film size you will scan. Notice that a label on the holder indicates its size.
  • Page 53 4. Center the film so that the frame aligns with the hole in the holder. 5. Place the top of the film holder over the bottom so that to top is aligned over the four pins.

  • Page 54: Loading Film Holders (Other Than 35 Mm Sizes) Into The Scanner

    ......Loading Film Holders (Other Than 35 mm Sizes) into the Scanner 1. If the 35 mm multi-frame holder adapter is in the Scanner, remove it. 35 mm Multi-frame Holder Adapter . . .
  • Page 55 ......2. If the single-frame holder adapter is not in the Scanner, put it in place in the Scanner.
  • Page 56 ......3. Place the film holder into the Scanner by sliding it down completely into place behind the single-frame holder adapter;...

  • Page 57: Using The Kodak Driver For Adobe Photoshop Software - Macintosh Computer

    You can then use Adobe Photoshop to edit the image and save the image as a file on your Macintosh hard disk. © Turn off the Scanner. The end of the chapter includes a full reference section of all software features. © Using the KODAK Driver for Adobe Photoshop (Macintosh)
  • Page 58 Adobe Photoshop, and that you have your Scanner connected properly to your Macintosh Computer as described in “Installing the Scanner Hardware” in Chapter 3. We also assume you have read and are familiar with the material con- tained in: ©...

  • Page 59: Displaying The Kodak Driver Window

    Chapter 3 to ensure that the driver files are properly installed on you hard disk. If you see a message that “The Scanner was not found . . .” refer to this message in “Appendix D — Messages from KODAK Drivers.”...
  • Page 60 ......6. Wait, and when start-up is complete, the KODAK Driver window appears.

  • Page 61: Producing Scanned Images

    Macintosh Computer” to: 1. Load the film or slide holder. 2. Place the holder in the Scanner. NOTE: Do not have a high level of direct light around the film holder area of the Scanner. © Using the KODAK Driver for Adobe Photoshop (Macintosh)

  • Page 62: Operating The Kodak Driver

    Follow the steps in this section to use the controls on the KODAK Driver window. NOTE: As you use the Scanner, the settings you have in effect each time you leave the KODAK Driver are retained and will be in effect the next time you use the driver. Set the Film Type 1.
  • Page 63 ......Wait as a “Calibration Procedure” alert box appears; follow the directions it contains as outlined in detail in parts A through E of this step. (Calibration is required each time the Scanner is turned on.) IMPORTANT: Image quality will be degraded significantly if the steps below are not followed with care.
  • Page 64 ......B. If a single-frame film holder is in the Scanner, remove it.
  • Page 65 ......C. If the single-frame holder adapter is not in the Scanner, put it in place in the Scanner.
  • Page 66 ......D. Put the calibration mask into the Scanner. As you insert it into the Scanner, the words “Calibration Mask”...
  • Page 67 E. Click OK. The Scanner will then display several messages. As prompted, wait for calibration to complete, reinsert the appropri- ate film holder — with film in place — and wait while focusing occurs and your image appears in the Driver window.

  • Page 68: Change The Magnification Adjustment

    AGNIFICATION DJUSTMENT its slider or typing an integer value from -10 to 10 in the text box to the right of the slider. The illustrations below for a 6x7 image demon- strate the operation of this adjustment. (The film has been removed from the holder to emphasize the border in these illustrations.)
  • Page 69 Missing image above and below the scan area indicate overscanning ..which occurs at the positive end of the slider. © Using the KODAK Driver for Adobe Photoshop (Macintosh) 5-13...

  • Page 70: Prescan The Image Again

    However you may wish to use other settings. To ensure that you obtain all of the image for one piece of film after another, you may wish to leave magnification at the negative end (underscanning) of the magnification slider. On the other hand if you always have “extra”...

  • Page 71: Select The Image

    C. If you are using film sizes other than 35 mm, and you do not see the image you want, click S , remove the film holder,...

  • Page 72: Set Auto Balance

    ; instead, adjust color and/or brightness as described in “Change Color Levels” and “Change Brightness” below. Rotate the Image 8. (Optional) Click 90 CCW, 180 , or 90 CW to rotate the image 90 counterclockwise (CCW), 180 , or 90 clockwise (CW), respectively. Click N...

  • Page 73: Set The Image To Black And White

    Focus the Image 11. (Optional) Use the Scanner to focus your image: NOTE: You could focus the image without Step A below; however Step A is helpful when working with an image that contains one area that is sharper than the rest of the image.

  • Page 74: Change Color Levels

    C. Click once to remove the selection rectangle; this will ensure that later when you do a scan you obtain the full image, not just the small portion within the focus rectangle. Change Color Levels 12.

  • Page 75: Change Brightness

    EFAULTS settings to 0 (for the current film type selected). Otherwise, current settings will be saved from one work session to the next for the selected film type until they are changed. When you move the pointer over the image, the arrow pointer becomes a cross-hair pointer, and red (R), green (G), and blue (B) values at the location of the pointer appear near the lower right-hand corner of the image.

  • Page 76: Change Contrast

    Additionally, you can choose C from the RES popup menu and USTOM type a value from 1 to 100 in the text box that appears to the right of the RES menu. NOTE: Different resolutions produce different image sizes, as shown in the information below the image in the KODAK Driver window.

  • Page 77: Crop" The Image

    ......“Crop” the Image 16. Follow part A or part B of this step depending on whether or not you want to crop the image.
  • Page 78 ......time while working with the scanner, clean the scanner “diffuser” (a 3 x 4-inch piece of white plastic), as summarized in this note, and as fully described at the end of “Appendix C — Troubleshooting.”...

  • Page 79: Scan Additional Images

    ......18. (Optional) Edit the image as desired. Scan Additional Images 19. (Optional) To scan additional images, begin by choosing KODAK RFS 3570 from the A submenu of the Adobe Photoshop F...

  • Page 80: Turning Off The Scanner

    Macintosh computer is off. 1. (Optional) Save any open Photoshop images to the computer hard disk. IMPORTANT: If you click in the close box of the window of an acquired — but unedited — image (or choose C from the F...

  • Page 81: Reference: Buttons And Indicators

    B & W Obtains only black-and-white data from the Scanner when on (X appears in the box). Red and blue scanner flashes are disabled; only green data are obtained from the Scanner. NOTE: There is no immediate response when the B & W setting changes;...
  • Page 82 LICK HITE image known to be gray or white. (Do not click on a dark shadow or a bright highlight or overexposed area.) This action automatically displays changes in the image window...
  • Page 83 S to scan the cropped area into Adobe Photoshop, resulting in a smaller image size. NOTES: To change the size of an existing selected area, press and hold down the Command ( ) key. With the key down, when you move the crossbar cursor over the edge of the selection rectangle, the crossbar turns into arrows.
  • Page 84 Adjusts the magnification of the image, allowing AGNIFICATION DJUSTMENT you to ensure that as many pixels of the imager as possible are used for your image. NOTE: Refer to “Change the Magnification Adjustment” earlier in this chapter for additional information on this option.
  • Page 85 ......menu and type a value from 1 to 100 in the text box that appears to the right of the RES menu.
  • Page 86 B area of the KODAK Driver window. ALANCE You can use this choice after each set of adjustments to view changes before final scanning. NOTE: Normally no scanning occurs, so V is faster than...

  • Page 87: Before You Begin - Pc

    Before You Begin — PC NOTE: Before you continue, complete and submit the enclosed Warranty Regis- tration card. You should also read “Appendix A — Software License Agreement” and “Appendix B — Warranty.” Check the following lists to ensure that you have the appropriate hardware and software.

  • Page 88: Required Hardware

    An 80386 or higher computer that has: a minimum of 8 megabytes (MB) random access memory (RAM) (32 MB RAM or more is recommended for fastest scan times) that can operate Windows 3.1; a minimum of 25 MB of free space on its hard disk; a SCSI port (see below).

  • Page 89: Required Software

    © A TWAIN compliant software application. The Kodak driver for use with TWAIN-compliant PC applications can be used with Adobe Photoshop 3.0.5 or higher with Windows 95, and may also work with other software applications that support TWAIN specifications. ©...

  • Page 90: Optional Printers

    ......Optional Printers Suggested printers for use with the scanner appear in “Appendix I — Optional Equipment & Spare parts List.” In the United States, contact Kodak at 1-800-CD-KODAK for detailed information on printer options and accessories and to obtain ordering catalog numbers;...

  • Page 91: Installation (Hardware And Software) - Pc

    ....... . Installation (Hardware and Software) — Follow the steps in this section to — © Install the Scanner hardware. © Install the KODAK TWAIN Driver for use with your PC TWAIN compliant software. © Installation (Hardware & Software) — PC...

  • Page 92: Installing The Scanner Hardware

    Scanner on either side of your computer. (You should retain the original shipping carton and packing materials.) 2. Press the O end of the power switch on the back of the Scanner to be sure that the Scanner power is off.

  • Page 93: Installing A Scsi Host Adapter

    For Qualified Technical Personnel Only 1. Turn off the power to the computer and all peripherals (turn off the computer first). 2. If the termination power setting on your SCSI host adapter is disabled, change its setting to enable it.

  • Page 94: Connecting The Scanner To Your Computer

    3. Install the SCSI Host Adapter for your PC according to the manufacturer’s installation instructions. When installation is complete, a SCSI2 connector should be available on the back of your PC, as shown in one example below. Different PCs have different connec- tors.

  • Page 95: If No External Scsi Devices Are Connected

    1. Select the cable with the 50-pin SCSI2 HD connector at one end and the 50-pin SCSI connector at the other end. NOTE: You will need to obtain this cable if it is not supplied with your host adapter. 50-pin SCSI2 HD Connector 50-pin SCSI Connector ©...
  • Page 96 ......2. Attach the 50-pin SCSI2 HD connector of the cable to the SCSI port on the back of the computer.
  • Page 97 ......3. Attach the other end of the cable to either of the identical SCSI ports on the back of the Scanner.
  • Page 98 ......4. Attach a SCSI terminator (supplied with the Scanner) to the empty SCSI port on the Scanner, seat the terminator firmly, and then pinch the thin wire clamps shut.

  • Page 99: If External Scsi Devices Are Connected

    Multiple SCSI devices are connected to the computer in a chain. The following steps will help you determine where you should place the Scanner in that chain — either at the end of the chain, or in the middle of the chain.
  • Page 100 Kodak. Refer to “Appendix I — Optional Equipment & Spare Parts List.” This cable is also widely available from computer retailers; if you obtain a cable from one of these sources, be certain to obtain a high quality cable with a continuous EMI shield over the cable and connectors.
  • Page 101 ......2. Locate the two identical SCSI ports and thin wire clamps on the back of the Scanner.
  • Page 102 A. Continue on the next page if none of the connected devices is terminated internally. B. Or continue at “Follow these steps if one of the connected devices is terminated internally”...
  • Page 103 (and any external terminator found in the SCSI chain has been removed): NOTE: In the following steps, you will place the Scanner at the end of the chain of connected devices. In fact, you can place the Scanner anywhere in the chain as long as you add a terminator to the last device in the chain.
  • Page 104 ......2. Attach the other end of the 50-pin to 50-pin SCSI cable to either of the identical SCSI ports on the back of the Scanner.
  • Page 105 Follow these steps if one of the connected devices is terminated internally: NOTE: In the following steps, you will place the Scanner in the chain just before the terminated device. (You can place the Scanner anywhere in the chain be- tween the terminated device and the PC.)
  • Page 106 Do not disconnect the other end of the cable. Back of PC Internally Terminated Device Step 2 3. Position the Scanner so that you can connect it in the chain before the terminated device. Back of PC Back of Film Scanner Internally Terminated...
  • Page 107 ......4. Attach the end of the cable you just disconnected to either of the identical SCSI ports on the back of the Scanner.
  • Page 108 Kodak. Refer to “Appendix I — Optional Equipment & Spare Parts List.” This cable is also widely available from computer retailers; if you obtain a cable from one of these sources, be certain to obtain a high quality cable with a continuous EMI shield over the cable and connectors.

  • Page 109: Setting The Scanner Scsi Identification Number

    Follow the steps below to set the SCSI identification (ID) number for the Scanner. You set the number by gently pushing buttons at the top and bottom of the SCSI ID switch on the back of the Scanner as described in this section.
  • Page 110 9; additionally, consult your SCSI host adapter manual to see if other SCSI IDs should not be used. Assign high ID numbers to devices used most frequently. NOTE: Make sure the power to the Scanner is off if you change its ID number at a later time. ©...

  • Page 111: Kodak Twain Driver

    KODAK driver described in this chapter. The availability of the KODAK Driver for TWAIN compliant PC applica- tions means that you may be able to use the Scanner with the growing number of software applications that support the TWAIN specifications.

  • Page 112: Installing Twain Compliant Kodak Driver

    3. Locate the diskette labeled “KODAK Driver for use with (TWAIN Compliant) KODAK Professional RFS 3570 Film Scanner.” 4. If the diskette is not locked, lock it by sliding the tab on the back to reveal a small hole. This will prevent the contents of the disk from being changed inadvertently, and may aid in preventing the spread of computer viruses to this diskette.
  • Page 113 A. Choose the driver option that matches the SCSI host adapter installed in your computer. Indicate which driver you want to install by clicking “on” (an X appears to the left of the choice when it is on) the ASPI driver for TWAIN.
  • Page 114 This README file applies to using the TWAIN drivers. This file can be reread at a later time. It is stored on your hard drive at path WINDOWS\TWAIN\RFS3570\README.WRI. D. After reading the file, choose E from the F menu.

  • Page 115: Loading The Film And Slide Holders - Pc

    Loading the Film and Slide Holders — PC NOTE: This chapter is identical with Chapter 4 (in the Macintosh Platform portion of this manual). It is repeated in both places for your convenience. This chapter describes how to use the film and slide holders with the Scanner.

  • Page 116: Loading 35 Mm Film And Slides

    Loading 35 mm Film into the 35 mm Film Holder Up to six frames from a strip of 35 mm film of any length can be posi- tioned for scanning at one time. Refer to the diagram below to load film into the 35 mm film holder.

  • Page 117: Loading 35 Mm Slides Into The Slide Holder

    ......4. Tuck the lower edge of the film under the tabs that run along the hinge.

  • Page 118: Loading 35 Mm Film And Slide Holders Into The Scanner

    ......Loading 35 mm Film and Slide Holders into the Scanner To load a 35 mm film or slide holder into the Scanner: 1. If the single-frame holder adapter is in the Scanner, remove it. Single-frame Holder Adapter .
  • Page 119 ......2. If the 35 mm multi-frame holder adapter is not in the Scanner, put it in place in the Scanner in the orientation shown.
  • Page 120 3. Orient the film or slide holder as follows: Film Holder: Make sure that the two orientation labels face you, that the film images read in the direction of the letter “R,” and that the “R” is right-side up. In this position, the film will be oriented correctly.
  • Page 121 NOTE: Since the slide holder is thicker than the film holder, you may need to use more force to move the slide holder from side to side than you will need for the film holder. KODAK Professional RFS 3570 F ilm Scanner 5.

  • Page 122: Loading Film Sizes Other Than 35 Mm

    Loading Film Sizes Other Than 35 mm Loading Film into the Film Holder Follow the steps below to load film sizes other than 35 mm into their film holders. 1. Select the film holder to match the film size you will scan. Notice that a label on the holder indicates its size.
  • Page 123 4. Center the film so that the frame aligns with the hole in the holder. 5. Place the top of the film holder over the bottom so that to top is aligned over the four pins.

  • Page 124: Loading Film Holders (Other Than 35 Mm Sizes) Into The Scanner

    ......Loading Film Holders (Other Than 35 mm Sizes) into the Scanner 1. If the 35 mm multi-frame holder adapter is in the Scanner, remove it. 35 mm Multi-frame Holder Adapter . . .
  • Page 125 ......2. If the single-frame holder adapter is not in the Scanner, put it in place in the Scanner.
  • Page 126 ......3. Place the film holder into the Scanner by sliding it down completely into place behind the single-frame holder adapter;...

  • Page 127: Using Kodak Driver With Windows Applications - Pc

    Use a KODAK Driver for TWAIN compliant PC applications to access the KODAK Driver window. © Use Scanner buttons and indicators to control the scan. © Produce a scan and have it appear in an untitled window in your TWAIN compliant application. © Turn off the Scanner. ©...
  • Page 128 ......The end of the chapter also includes a full reference section of all soft- ware features.

  • Page 129: Using A Kodak Driver For Twain Compliant Pc Applications

    KODAK Driver with Adobe Photoshop 3.0.5 for Windows. If you use other software, refer to its documentation to determine if it is TWAIN compliant, and if it is, how it provides access to TWAIN drivers.

  • Page 130: Adobe Photoshop 2.5 And 3.0 For Windows

    NOTE: The choice of source, and other settings you establish while using the driver, are maintained in a preferences file for the TWAIN compliant driver; you do not need to repeat steps 2 through 4 each time you use the driver. ©...
  • Page 131 6. Wait, and when start-up is complete, the KODAK Driver window appears. NOTE: If you see a message that “The Scanner was not found . . .” refer to this message in “Appendix D — Messages from the KODAK Drivers.”...

  • Page 132: Producing Scanned Images

    Holders — PC” to: 1. Load the film or slide holder. 2. Place the holder in the Scanner. NOTE: Do not have a high level of direct light around the film holder area of the Scanner. © Using KODAK Drivers with Windows Applications — PC...

  • Page 133: Operating The Kodak Driver

    Follow the steps in this section to use the controls on the KODAK Driver window. NOTE: As you use the Scanner, the settings you have in effect each time you leave the KODAK Driver are retained and will be in effect the next time you use the driver. Set the Film Type 1.
  • Page 134 ......Wait as a “Calibration Procedure” alert box appears; follow the directions it contains as outlined in detail in parts A through E of this step. (Calibration is required each time the Scanner is turned on.) IMPORTANT: Image quality will be degraded significantly if the steps below are not followed with care.
  • Page 135 ......B. If a single-frame film holder is in the Scanner, remove it.
  • Page 136 ......C. If the single-frame holder adapter is not in the Scanner, put it in place in the Scanner.
  • Page 137 ......D. Put the calibration mask into the Scanner. As you insert it into the Scanner, the words “Calibration Mask”...
  • Page 138 E. Click OK. The Scanner will then display several messages. As prompted, wait for calibration to complete, reinsert the appropri- ate film holder — with film in place — and wait while focusing occurs and your image appears in the Driver window.

  • Page 139: Change The Magnification Adjustment

    AGNIFICATION DJUSTMENT its slider or typing an integer value from -10 to 10 in the text box to the right of the slider. The illustrations below for a 6x7 image demon- strate the operation of this adjustment. (The film has been removed from the holder to emphasize the border in these illustrations.)
  • Page 140 Missing image above and below the scan area indicate overscanning ..which occurs at the positive end of the slider. © 9-14 Using KODAK Drivers with Windows Applications — PC...

  • Page 141: Prescan The Image Again

    However you may wish to use other settings. To ensure that you obtain all of the image for one piece of film after another, you may wish to leave magnification at the negative end (underscanning) of the magnification slider. On the other hand if you always have “extra”...

  • Page 142: Set Auto Balance

    C. If you are using film sizes other than 35 mm, and you do not see the image you want, click S , remove the film holder,...

  • Page 143: Rotate The Image

    ......Rotate the Image 8. (Optional) Click 90 CCW, 180 , or 90 CW to rotate the image 90 counterclockwise (CCW), 180 , or 90 clockwise (CW), respectively.
  • Page 144 To change the size of an existing selected area, drag a handle to make the rectangle bigger or smaller. To move the selection rectangle, place the pointer inside the rectangle, and drag the rectangle to its new location.

  • Page 145: Change Color Levels

    ......C. Click once to remove the selection rectangle; this will ensure that later when you do a scan you obtain the full image, not just the small portion within the focus rectangle.

  • Page 146: Change Brightness

    ......will be saved from one work session to the next for the selected film type until they are changed.

  • Page 147: Crop" The Image

    RES drop down list box USTOM and type a value from 1 to 100 in the text box that appears to the right of the RES menu. NOTES: Different resolutions produce different image sizes as shown in the information below the image in the KODAK Driver window.

  • Page 148: Scan The Image

    . The KODAK Driver window closes and the scan appears in a window in your software application. NOTE: If this is the first time that you are completing a scan during this work session, or if you notice water spots or bubbles in the scanned image at any time while working with the scanner, clean the scanner “diffuser”...

  • Page 149: Scan Additional Images

    ......B. Orient the dust removal tool as shown below, and with an up and down motion, clean the surface of the diffuser making sure the fiber strip makes contact with the diffuser.

  • Page 150: Turning Off The Scanner

    1. (Optional) Save any open images to the computer hard disk. IMPORTANT: If you click in the close box of the window of an acquired — but unedited — image (or choose C from the F...

  • Page 151: Reference: Buttons And Indicators

    B & W Obtains only black and white data from the Scanner when on (X appears in the box). Red and blue scanner flashes are disabled; only green data is obtained from the Scanner. NOTE: There is no immediate response when the B & W setting changes;...
  • Page 152 LICK HITE image known to be gray or white. (Do not click a dark shadow or a bright highlight or overexposed area.) This action automatically displays changes in the image window and repositions the color sliders in the B...
  • Page 153 NOTE: Some film types include a letter code. Use these values to match the film type from this drop down list to the edgeprint codes printed on your negatives from KODAK Professional Films. Choose the film size from this drop down list box to match the film you will scan.
  • Page 154 Additionally, you can choose C from the RES drop USTOM down list box and type a value from 1 to 100 in the text box that appears to the right of the RES list box. NOTE: Different resolutions produce different image sizes as shown in the I information below the image.
  • Page 155 (pixels). Choose from H , or O ORMAL Version Number The version number for the KODAK TWAIN Driver appears in the title line at the top of the KODAK Driver window. Using the last scanned or prescanned image, this button HANGES...

  • Page 157: Appendices

    D — Messages from KODAK Drivers E — Replacing the Fuse F — Updating the KODAK Driver G — Repacking Instructions H — Problem Report Form I — Optional Equipment & Spare Parts List J — Specifications K — Glossary © Appendices...

  • Page 159: Appendix A - Software License Agreement

    License You may: a. use the software; b. copy the software onto one or more computers only for the purpose of operating the equipment with which this software was provided (the “Related Equipment”) or into any machine-readable form for backup purposes in support of your use of the software;...

  • Page 160: Limited Warranty

    Kodak warrants the diskettes on which the software is furnished to be free from defects in materials and workmanship under normal use for a period of ninety (90) days from the date of delivery to you as evidenced by a copy of your receipt.
  • Page 161 Some states do not allow the exclusion of implied warranties, so the above exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other rights that vary from state to state. Limitations of Remedies Kodak’s entire liability and your exclusive remedy shall be:...
  • Page 162 This Agreement will be governed by the laws of the State of New York. Should you have any questions concerning this Agreement, you may contact Kodak at 1-800-CD-KODAK.

  • Page 163: Appendix B - Warranty

    Warranty Repair Coverage If this equipment does not function properly during the warranty period, due to defects in materials or workmanship, Kodak will at its option, either repair or replace the equipment, without charge, subject to the conditions and limitations stated herein. Such repair service will include...
  • Page 164 If it should become necessary to repair or replace a malfunctioning or defective system, the provisions of this warranty shall apply to the repaired or replaced system until 30 days from the date of return, or until the end of the original 12 month warranty period, which- ever is later.
  • Page 165 Kodak will not be responsible for any consequential or incidental dam- ages resulting from the purchase, lease, use, or improper functioning of this equipment, even if loss or damage is caused by the negligence or other fault of Kodak. ©...
  • Page 166 ......Such damages for which Kodak will not be responsible include, but are not limited to, loss of revenue or profit, downtime costs, loss of use of the equipment, cost of any substitute equipment, facilities or services or claims of your customers for such damages.

  • Page 167: Appendix C - Troubleshooting

    Scanner has been in successful use if an additional device is connected to the computer and results in a SCSI ID conflict, or if the Scanner is connected to a different computer and results in a SCSI ID conflict with that system.) ©...
  • Page 168 You are using System 7.0 Put the System Tuner version 1.1.1 crashes or you lose files or System 7.0.1 and are or higher in your System Folder, or or folders from your not using the System consider upgrading to System 7.1 Macintosh computer hard Tuner version 1.1.1.
  • Page 169 Remove and clean film. Try again. Dust has accumulated Clean the diffuser as described at on the diffuser glass. the end of this appendix and try again. The image appears blank Unexposed portion of Move 35 mm Holder left or right after scanning.
  • Page 170 Apple menu. Find and open properly on Control Monitors. Click Colors, then click Panel. the largest value in list box. Close and try again. PC monitor is not set Follow the manufacturer’s properly for color. instructions for setting color for your monitor and video adapter.
  • Page 171 5 (Macintosh) or Chapter 9 (PC). of the calibration mask. Light in the area of the Do not have a high level of direct film holder is interfering light around the film holder area of with Scanner operation.
  • Page 172 — appearing like water spots, dimples, bubbles, or blisters — in scanned images. These objects occur when dust collects on the surface of the diffuser (a 3” x 4” piece of white plastic) in the scanner, producing unwanted results. The two-part procedure de-...
  • Page 173 ......2. Orient the dust removal tool as shown below, with the label on the tool (and the fiber strip) facing the front of the scanner;...
  • Page 174 © Work in a clean environment if possible. © Use the supplied dust cover to cover the scanner whenever it is off. © Keep the calibration mask in the scanner during idle times. ©...

  • Page 175: Appendix D - Messages From Kodak Drivers

    The KODAK Drivers add new messages to your software application. An explanation of those added messages follows. NOTE: If you do not find the message below, the message may have been displayed by your software application; refer to the user’s manual for your application for explanations of these messages.
  • Page 176 Follow the prompts in the PROCEDURE perform a calibration. message. Chapters 5 (Macintosh) and 9 (PC) provide details, with 1. If using 35 mm multi - art work illustrating the parts frame holder, REMOVE mentioned in the message. the holder and holder adapter.
  • Page 177 Message Possible Cause(s) Suggested Solution(s) “Cannot create the buffer There is not enough Create free space on the hard disk for scanning image.” storage or memory to by deleting unneeded files, or by complete the operation. backing up files from this disk to another storage device and then deleting the files from this disk.
  • Page 178 Chapter 6.) If problems persist, have a technician verify that the host adapter is properly installed and is not faulty, and then try again. If necessary, have the technician repair or replace the adapter. “Could not acquire An unexpected, Try the operation again;...
  • Page 179 — with film loaded — Scanner and try again. has been left in the Scanner. An unexpected problem If the steps suggested just above has developed with the do not resolve the problem, Scanner software. reinstall the Scanner software as...
  • Page 180 PC. The TWAIN compliant Install the Windows ASPI files KODAK Driver for ASPI that accompany the ASPI is installed, as is an ASPI compliant SCSI host adapter, compliant host adapter, then try again. but the Windows ASPI...
  • Page 181 ......Message Possible Cause(s) Suggested Solution(s) “Firmware download The Scanner SCSI ID is Reset the Scanner SCSI ID so that failed. Check SCSI bus.” set improperly. it is different from other devices connected to the computer. To NOTE: Firmware is...
  • Page 182 “Firmware download An unexpected problem Be certain that the RFS3570.BIN failed. Could not load has developed with the file is placed in the appropriate RFS3570.BIN file.” Scanner software. location on your hard disk as described in Chapter 3 NOTE: Firmware is...
  • Page 183 Choose a smaller scanning resolution (RES) and/or drag to crop on the KODAK Driver window, and try again. Create free space on this disk by deleting unneeded files, or by backing up files from this disk to another storage device and then deleting the files from this disk.
  • Page 184 Increase the memory size.) Restart Photoshop and try the operation again. “Not enough memory. There is not enough Create free space on the hard disk Please close other storage or memory to by deleting unneeded files, or by applications to free system complete the operation.
  • Page 185 Shut down the computer and the Magnification hardware.” detected. Scanner. Restart and try again. If the problem persists, reinstall the Scanner software as described in Chapter 3 (Macintosh) or Chapter 7 (PC), and try again. If the problem continues contact Kodak. Messages D-11 ©...
  • Page 186 “Required Scanner setup The software Driver is Reinstall the KODAK Driver as file (RFS3570.TBL for unable to use a required described in Chapter 7, and try input) not available. Try file. again. again. If problem persists, If this is unsuccessful, contact reinstall the driver and try Kodak.
  • Page 187 Check for blown fuse” © The Scanner SCSI ID is Reset the Scanner SCSI ID so that set improperly. it is different from other devices connected to the computer. To do so, turn off the computer, then the Scanner. Reset the Scanner SCSI ID.
  • Page 188 Computer but the 32 bit QuickDraw file is missing or damaged. The KODAK Driver will You will not be able to use the not work on an older KODAK Driver on this computer; Macintosh Computer run the driver on a different that does not have 32 bit computer.

  • Page 189: Appendix E - Replacing The Fuse

    NOTE: Contact Kodak if you replace the fuse because it has blown, and it immediately blows again. 1. Turn off your computer. 2. Verify that the power switch on the back of the Scanner is in the off (O) position by pressing the O end of the power switch. BACK OF FILM SCANNER...
  • Page 190 ......4. Notice that the fuse cover has a small tab accessible from the plug outlet cavity.
  • Page 191 ......7. Lift the tab on the fuse housing and slide out the fuse holder.
  • Page 192 ......10. With the fuse facing up, insert the flat end of the fuse holder into the fuse housing, and slide the pieces together until they snap together.

  • Page 193: Appendix F - Updating The Kodak Driver

    Downloading an update from this network is the quickest way to obtain the most current driver. You receive the driver directly — in a timely way — at your convenience.
  • Page 194 Adobe Photoshop Software (Macintosh) and/or the KODAK TWAIN Driver. Refer to the “Appendix I —Optional Equipment & Spare Parts List” for ordering information. If you obtain software directly from Kodak, install it as described in the next section. ©...
  • Page 195 ......Installing the Software Driver This section describes how to update the driver on your hard disk, either the KODAK Driver for Adobe Photoshop Software (Macintosh) or the KODAK TWAIN Driver.
  • Page 196 Updating the KODAK TWAIN Driver (PC) 1. Complete all steps in “Installing TWAIN Compliant KODAK Driver(s)” in Chapter 7, except if the files have been downloaded from a net- work — instead of obtained on a diskette — run the S...

  • Page 197: Appendix G - Repacking Instructions

    Canada call 1-800-465-6325. In other countries, call your nearest Kodak representative. If service is required, your Kodak representative will tell you how to return the unit to the nearest service center for repair and issue a return authorization number. Please make sure that you have filled out and returned your Warranty Registration card;...
  • Page 198 ......4. Remove the Film or Slide Holder from the Scanner. 5. Place the Scanner into the plastic bag and then into the original shipping carton.

  • Page 199: Appendix H - Problem Report Form

    ) ______________________________________________________ Date ________________________________________________________________ Equipment Description Scanner Serial Number — ______________________ See back of Scanner under “Serial Number.”) Return Authorization Number ______________________ Provided by the Kodak. Refer to “Appendix G — Repacking Instructions” for additional information. Problem Description ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________...

  • Page 201: Appendix I - Optional Equipment & Spare Parts List

    United States call 1-800-CD-KODAK, in Canada call 1-800-465-6325, and elsewhere contact your local Kodak representative, except as noted below. NOTE: None of the items described in this section is supplied with the Scanner. Item Name Description...
  • Page 202 ......Item Name Description KODAK Digital Science™ Prints 300 pixels per inch, 24-bit color images up to 12.2 x Desktop Color Proofer 9000 18-inches (30.9 x 45.7-cm) to KODAK EKTATHERM Color Digital Printer Proofing Ribbon/CMYK reflective print paper.
  • Page 203 Dust Brush 809-9939 Ordering Optional Equipment from Other Vendors To order items in this category, contact the individual vendors listed below. Kodak assumes no responsibility for your use of third-party optional equipment. NOTE: None of these items is supplied with the Scanner.
  • Page 204 NOTE: The Macintosh and PC cables below are also widely available from computer retailers. If you obtain a cable from one of these sources, be certain to obtain a high quality cable with a continuous EMI shield over the cable and connections.
  • Page 205 Power cord 590966 50-pin SCSI terminator 692480 Shipping box — cardboard 3B5877 Ordering New Manuals from Kodak To order an additional user’s manual, call Kodak Advertising Distribution at 1-800-233-1650 (fax 1-716-588-4807). Part Name Part No. Description User’s Manual The part...

  • Page 207: Appendix J - Specifications

    Holder for 35 mm mounted slides up to four frames Holders for 120 film format (for 6 x 7 cm and 6 x 6 cm) Optional Holders available for 6 x 9 cm, 6 x 4.5 cm, 4.5 x 6 cm, 46 mm, and 70 mm ©...
  • Page 208 Small Computer System Interface (SCSI) The Scanner does not have an internal terminator. Interface Cards Macintosh computer: none required PC: ASPI SCSI host adapter cards such as those from Adeptec, Inc. run- ning EZ-SCSI 4.01 or later. Scan File Size 18 MB full-resolution color 6 MB full-resolution monochrome ©...
  • Page 209 ......Approximate Dimensions 13.25 in. (33.7 cm) wide x 21 in. (53.4 cm) long x 8 in. (20.3 cm) high Approximate Weight (Scanner alone) 16 lbs., 13 oz.

  • Page 211: Appendix K - Glossary

    In addition, Chapter 5, “Using the KODAK Driver for Adobe Photoshop — Macintosh Computer,” and Chapter 9, “Using the KODAK Drivers with Windows Applications — PC,” contain detailed reference material at the end of the chapters of each term appearing on the KODAK Driver window. Access.
  • Page 212 A single large image displayed in the KODAK Driver win- dow as you manipulate the controls in the window. POWER on Light. A light at the top left front of the Scanner that when on indicates that the Scanner is on.

  • Page 213: Index

    ............. . . Index ©...
  • Page 214 ......8-bit video card. See Video display card Macintosh 5-16, 5-25 Carton G-1 to G-2, I-5...
  • Page 215 Identification, SCSI. See SCSI, ID Drivers. See KODAK Drivers Message D-5, D-11 Image Troubleshooting C-3 to C-5 Dust iv, 5-22, 5-23, C-6 to C-8 PC 9-6, 9-12, 9-13, 9-15, 9-17 to Image Size Dust cover 5-24, 9-24, C-8, I-3 9-19, 9-27...
  • Page 216 KODAK XLS 8650 PS printer I-1 Macintosh 5-6 to 5-11, 5-14, 5-15, PC 9-17, 9-28 5-18, 5-28 Normal (Sharpen) PC 9-7 to 9-12, 9-15, 9-19, 9-28 Macintosh 5-16, 5-28, 5-29 Preview 1-2, K-2 Light, power on 5-3, 9-3, K-2 PC 9-17, 9-29...
  • Page 217 Crashes C-2 Scan (image) Macintosh 5-17, 5-21, 5-27 Tuner 2-3 Macintosh 5-5 to 5-23, 5-29 PC 6-3 PC 9-18, 9-21 to 9-22, 9-26 to 9-27 Command 5-16, 5-21 Self test 5-3, 9-3 Troubleshooting C-2 Message D-5 Service vi PC 9-16 to 9-24...
  • Page 218 Warm up time J-1 Warranty B-1 to B-4 Warranty Registration card 2-1, 6-1 Water hazard iv Weight J-3 Windows 6-2, 6-3, 9-4 ASPI host adapter. See SCSI, ASPI host adapter Microsoft 6-3 Windows 95 6-3 World Wide Web F-2 Xenon strobe J-2...
  • Page 219 Kodak shall not be liable for any loss or damage, including consequential or special damages, resulting from the use of this information, even if loss or damage is caused by Kodak’s negligence or other fault.
  • Page 220 DIGITAL & APPLIED I M A G I N G EASTMAN KODAK COMPANY • ROCHESTER, NY 14650 KODAK Professional RFS 3570 Film Scanner Revised 4-97 Part No. 7C3306 Kodak is a trademark. Printed in U.S.A.
