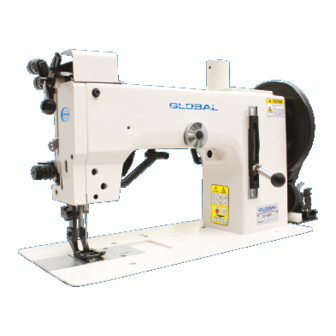

Summary of Contents for Global ZZ 1267
- Page 1 GLOBAL ZZ 1267 Instruction manual...
- Page 2 Needle Bar Height. REQUIREMENT. With needle bar at lowest point, (B.D.C.), from needle bar frame to end of needle bar is 66mm. ADJUSTMENT. Loosen hex screw, and raise/lower needle bar. See photo below. From the library of Superior Sewing Machine & Supply LLC - www.supsew.com...
-
Page 3: Shuttle Timing
Shuttle Timing. REQUIREMENT. When needle has been raised 5mm from B.D.C. point of shuttle must be at centre line of needle. See photo below. From the library of Superior Sewing Machine & Supply LLC - www.supsew.com... - Page 4 ADJUSTMENT. Loosen clamp and adjust shuttle driver shaft. See photo below. From the library of Superior Sewing Machine & Supply LLC - www.supsew.com...
- Page 5 Check Needle Bar Height on Widest Zigzag. REQUIREMENT. On widest zigzag, needle on right side, the point of shuttle must be 1.5-2.0mm above top of needle eye. See photo below. From the library of Superior Sewing Machine & Supply LLC - www.supsew.com...
- Page 6 ADJUSTEMENT. Loosen hex screw and raise/lower needle bar. See photo below From the library of Superior Sewing Machine & Supply LLC - www.supsew.com...
-
Page 7: Needle Guard
Needle Guard. REQUIREMENT. With needle at B.D.C. face of shuttle driver must touch, but not deflect needle. ADJUSTMENT. See photo below. From the library of Superior Sewing Machine & Supply LLC - www.supsew.com... - Page 8 Clearance between shuttle point & needle. REQUIREMENT. At shuttle timing space between point of shuttle & needle must be 0.10mm. See photo below From the library of Superior Sewing Machine & Supply LLC - www.supsew.com...
- Page 9 ADJUSTMENT. See photo below. From the library of Superior Sewing Machine & Supply LLC - www.supsew.com...
-
Page 10: Straight Stitch Alignment
STRAIGHT STITCH ALIGNMENT (1) From the library of Superior Sewing Machine & Supply LLC - www.supsew.com... - Page 11 STRAIGHT STITCH ALIGNMENT (2) From the library of Superior Sewing Machine & Supply LLC - www.supsew.com...
- Page 12 LATERAL SETTING OF MAX. ZIG-ZAG (1) From the library of Superior Sewing Machine & Supply LLC - www.supsew.com...
- Page 13 LATERAL SETTING OF MAX. ZIG-ZAG (2) From the library of Superior Sewing Machine & Supply LLC - www.supsew.com...
- Page 14 LATERAL SETTING OF STRAIGHT STITCH (1) From the library of Superior Sewing Machine & Supply LLC - www.supsew.com...
- Page 15 LATERAL SETTING OF STRAIGHT STITCH (2) From the library of Superior Sewing Machine & Supply LLC - www.supsew.com...
