SunSetter Solar-Powered EasyShade Owner's Manual & Installation Instructions page 6

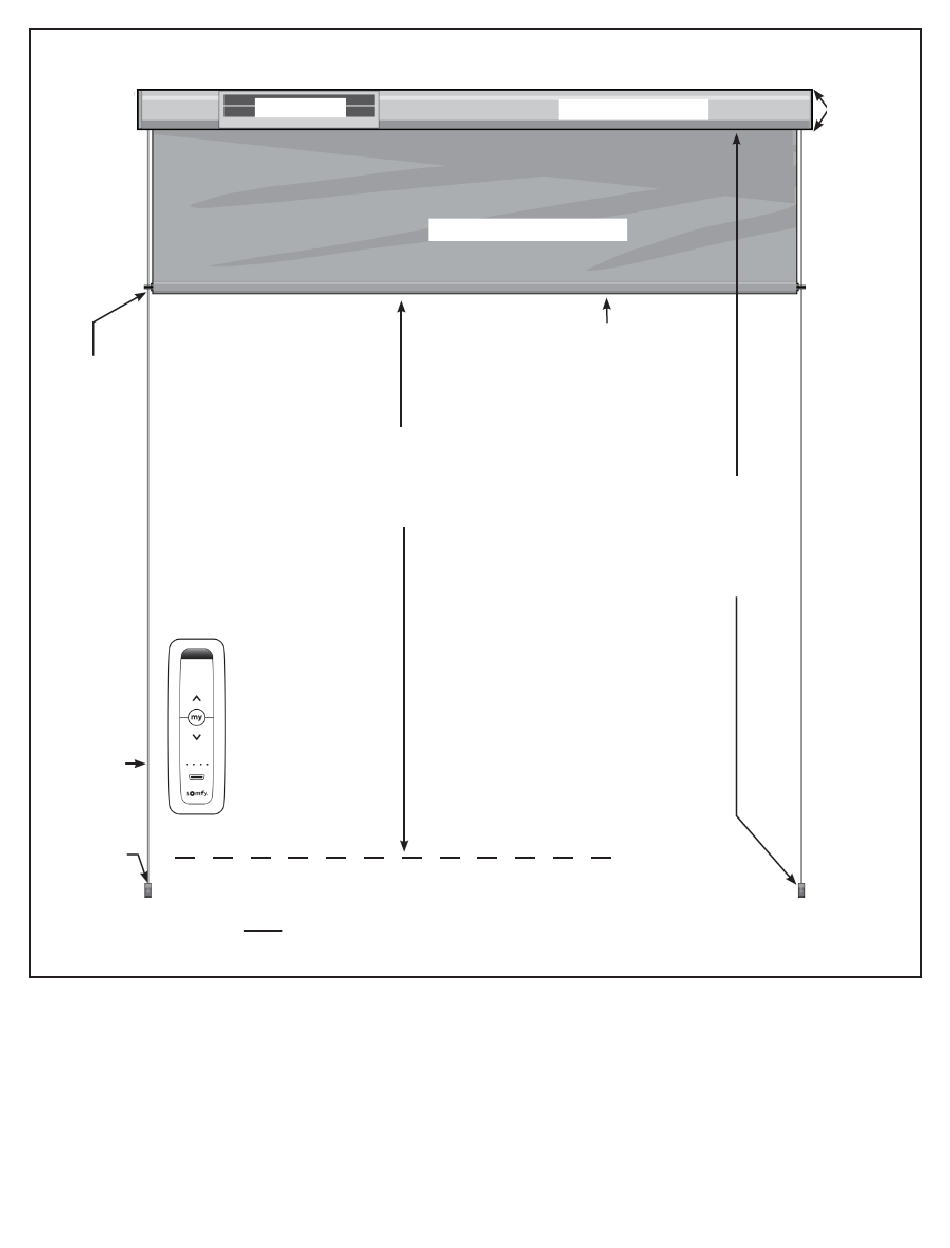

Figure 1 - Solar-Powered EasyShade Schematic View
Power Cord
between
Motor and
Solar Panel
not shown
Cable
Guide
Hole
Vinyl
Coated
Guide
Cable
Cable
Guide
Bracket
Solar Panel
Factory set to open 36" (3')
Adjustable to open 84" (7') max
See Appendix A to Adjust Limits
Multi-Channel
Remote Transmitter
included with
Wall Post
Note: The solar screen fabric panel width is 3" less than the
EasyShade width (measured at the aluminum housing).
Aluminum Housing
Solar Screen Fabric Panel
Aluminum Leading Bar
(inside bottom fabric pleat)
Vertical space between
Aluminum Housing and
Cable Brackets must be
clear of obstructions
3
3-1/2"
Total
clearance
is needed
for the
Aluminum
Housing
