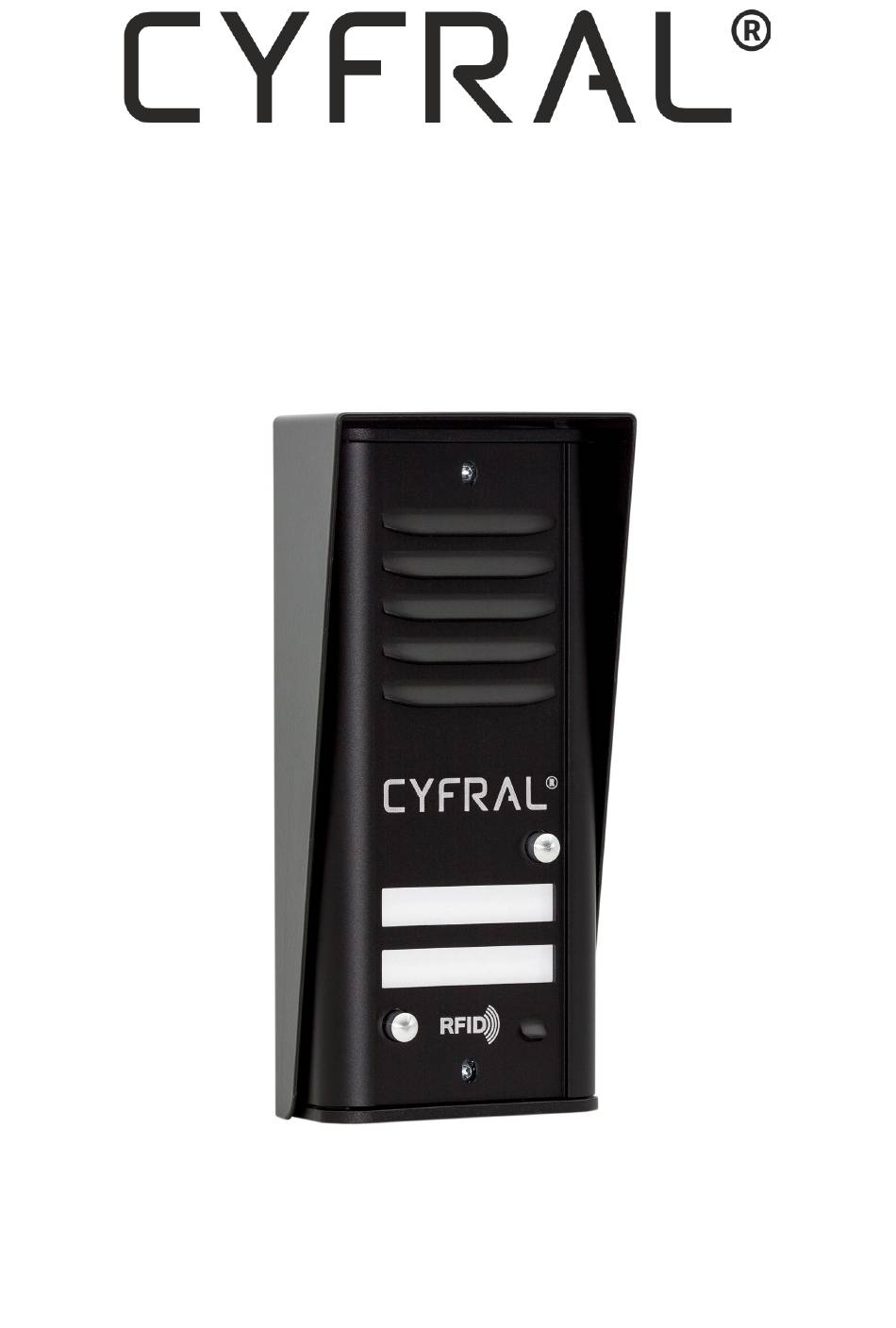

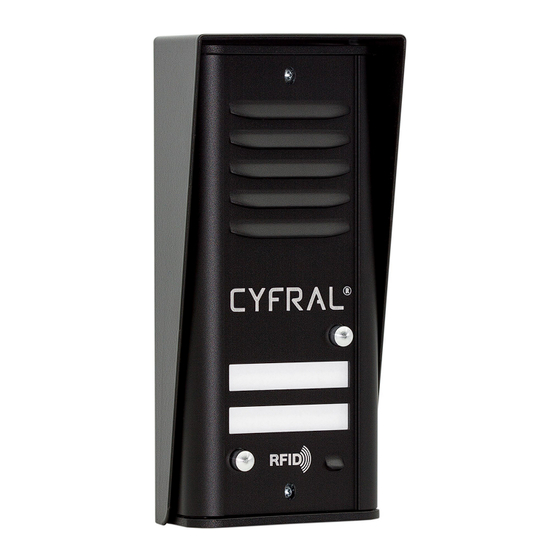

- Page 1 COSMO-R1 COSMO-R2 Installation and operation manual of the intercom set (1v2)
- Page 2 We are very pleased that you have chosen the CYFRAL intercom set. We believe that the good quality and functionality of our product will meet your expectations. 1. COSMO headquarters The COSMO control panel is a solution in which duplex signal transmission is used, and the connection of the handset uniphone with the call panel is made by a two-wire line.
- Page 3 The spacing of the AHU mounting holes with the surface-mounted roof. 2.2. Electrical connections in the switchboard. Electrical connections in the panel with other elements of the CYFRAL entry phone should be made in accordance with the block diagram, remembering that: screw the wires from the AC adapter to the marked terminals~11.5V...
-
Page 4: Down Button
CENTRAL UN 1 UN 2 DOWN BUTTON PROPERTY AC ADAPTER ELECTRIC LOCK - 4-... - Page 5 2.3. List of tenants. To insert the list of tenants, disassemble the aluminum panel, then slide down the plastic roof (lower) and the frame of the list of tenants. After assembling your own list, assemble everything in reverse order. 3. Installing the power supply. The power supply should be installed in such a way that water and moisture cannot reach it.
- Page 6 Maximum load:50mA 12V AC/DC 5. System operation. The intercom exchange serves one (COSMO-R1) or two tenants (COSMO-R2). • • Pressing the button on the panel causes the uniphone of the selected tenant to be called. Ringing occurs twice after pressing the button.
- Page 7 6. RFID tags programming procedure The COSMO doorphone exchange is equipped with an RFID proximity tag reader. The reader is placed directly under the illuminated business card window. In order to activate the catch or program the RFID tag, it should be brought close to the business card window at a distance of about 10mm.
-
Page 8: System Technical Data
• mating hitch 12V AC / 500mA max • ENJOY USING! Producer: CYFRAL Chabelska i Wspólnicy SJ st. Konstantynowska 62/70 95 - 100 ZGIERZ tel. 426399870 service: 426399877 or 531 662 514 e- www.cyfral.pl mail: info@cyfral.pl This symbol means that the product was placed...
