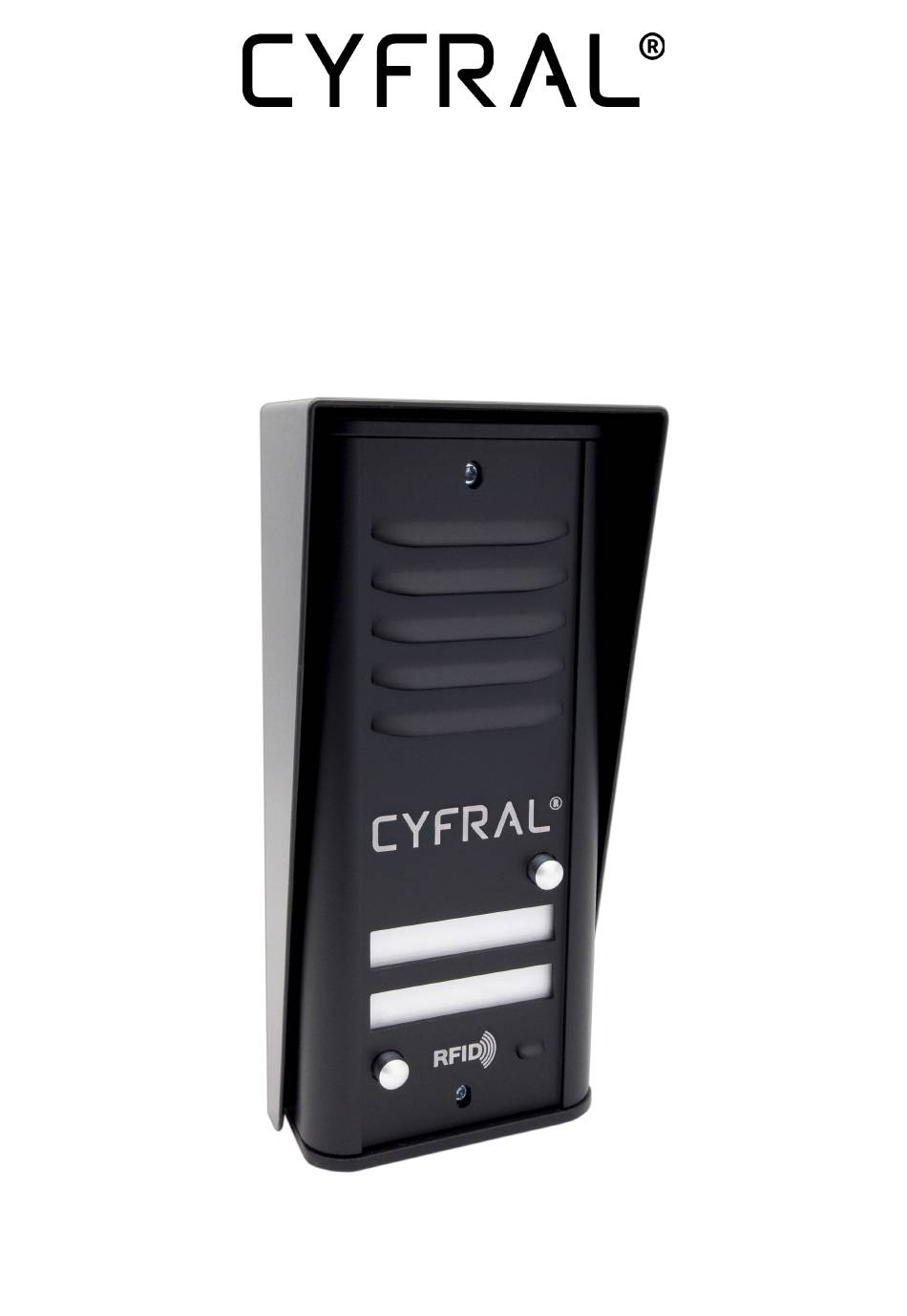

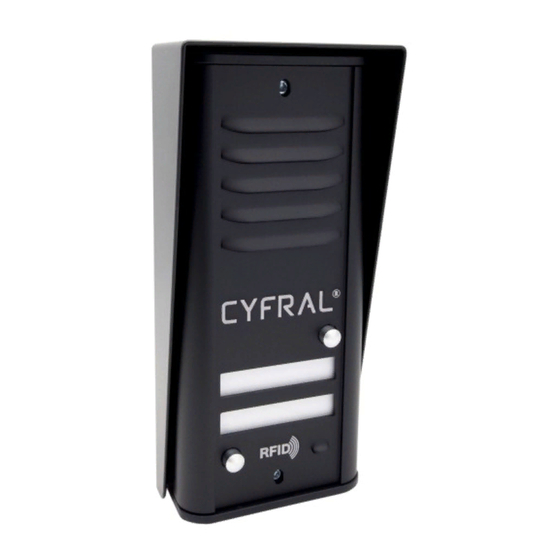

- Page 1 INTERCOM COSMO-R The quick manual of the assembly and service of the COSMO-R intercom...
- Page 2 Remove the aluminum front panel Torx T10...
- Page 3 Unit elements 1. Ring button UNIPHONE 1 2. Balance adjustment 3. Master key programming jumper 4. Ring button UNIPHONE 2 5. Volume control 6. RFID antenna Uniphone elements 1. Connector for link the uniphone with unit 2. Volume control 3. 3-position ringer volume - loud - silent - off...
- Page 4 Unit mechanical assembly The figure shows the hole spacing for mounting the panel with surface-mounted visor. Electrical connections in the unit. • Cables from the power supply unit (AC 11,5 V) tighten to the clamps marked ~11,5V • Wires of electromagnetic clamp to the terminals ZACZEP. •...
- Page 5 Programming master key Put the jumper 5x beep Blink, blink, blink... CLOSE RFID KEYS (2 KEYS MAX)
- Page 6 Programming the remaining RFID keys Press and hold 1 - Close master key 2 - Release the button Blink, blink, blink... Add more RFID keys After 10 seconds the flashing will stop...
- Page 7 Programming the opening time of electrical lock The default setting is 4 sec. It can be adjusted within 1-15 sec. Press and hold 1 - Close master key 2 - Release the button Press at the same time 5x beep 1 SEC 2 Persons...
- Page 8 3 PRESS = 4 sec 14 PRESS = 15 sec after 10 seconds of inactivity, the unit panel goes into the normal operation mode Manufacturer: CYFRAL Chabelska i Wspólnicy S.J. ul. Konstantynowska 62/70 95 - 100 ZGIERZ POLAND e-mail: info@cyfral.pl...
